This new mode is accessible via two means :
- on the remote on the menu Shift-A
- on the OSD at the bottom left

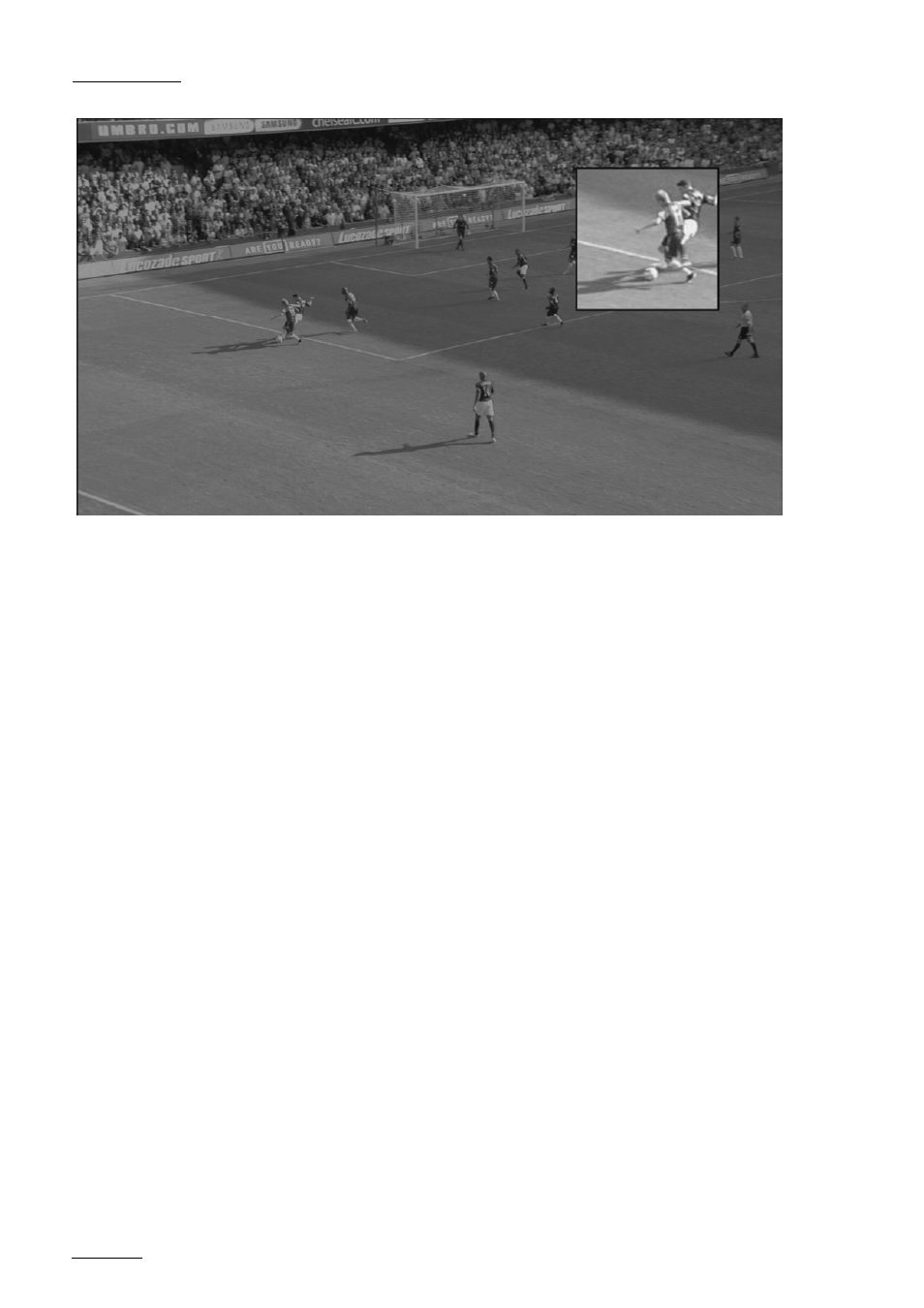

In the static zoom mode, at the bottom left of the screen, a “P” appears
on the OSD to define the position of the static zoom.
Just click on the P and move the cursor to indicate where the static zoom
should be.
On the OSD, a second line is added to indicate the number of keyframes
marked and the position of the current keyframe.
Display :
---/--- : no keyframes are defined
---/021 : there are 21 keyframes defined but the user is not on a keyframe
012/021 : there are 21 keyframes defined and the user is on keyframe 12
of 21.
New transparency option : select the last choice of transparency options
to set the background in black and white.
