EVS MULTICAM - User’s Manual Version 8.03
EVS Broadcast Equipment SA – Dec 2006
48
CLIP NUMBERING HIERARCHY
The MULTICAM can store up to 900 (multiplied by the number of
cameras) clips and 100 playlists in its libraries
Note: 900 clips with up to 6 camera angles per clip results in 5400 “clip registers” in the
memory. But the maximum number of clips on a XT system actually depends on the
revision of the HCTS (disk controller) board and is 2048 or 4096. This number is
displayed in the upper right window of the VGA Setup Screen (Shift+F2 from the PC
keyboard). If you are working with XNet SDTI network, keep in mind that the total
number of clips on the entire network is limited to 6,000 or 16,000, depending on the
network settings. This number is displayed in the same area on the VGA Setup
Screen.

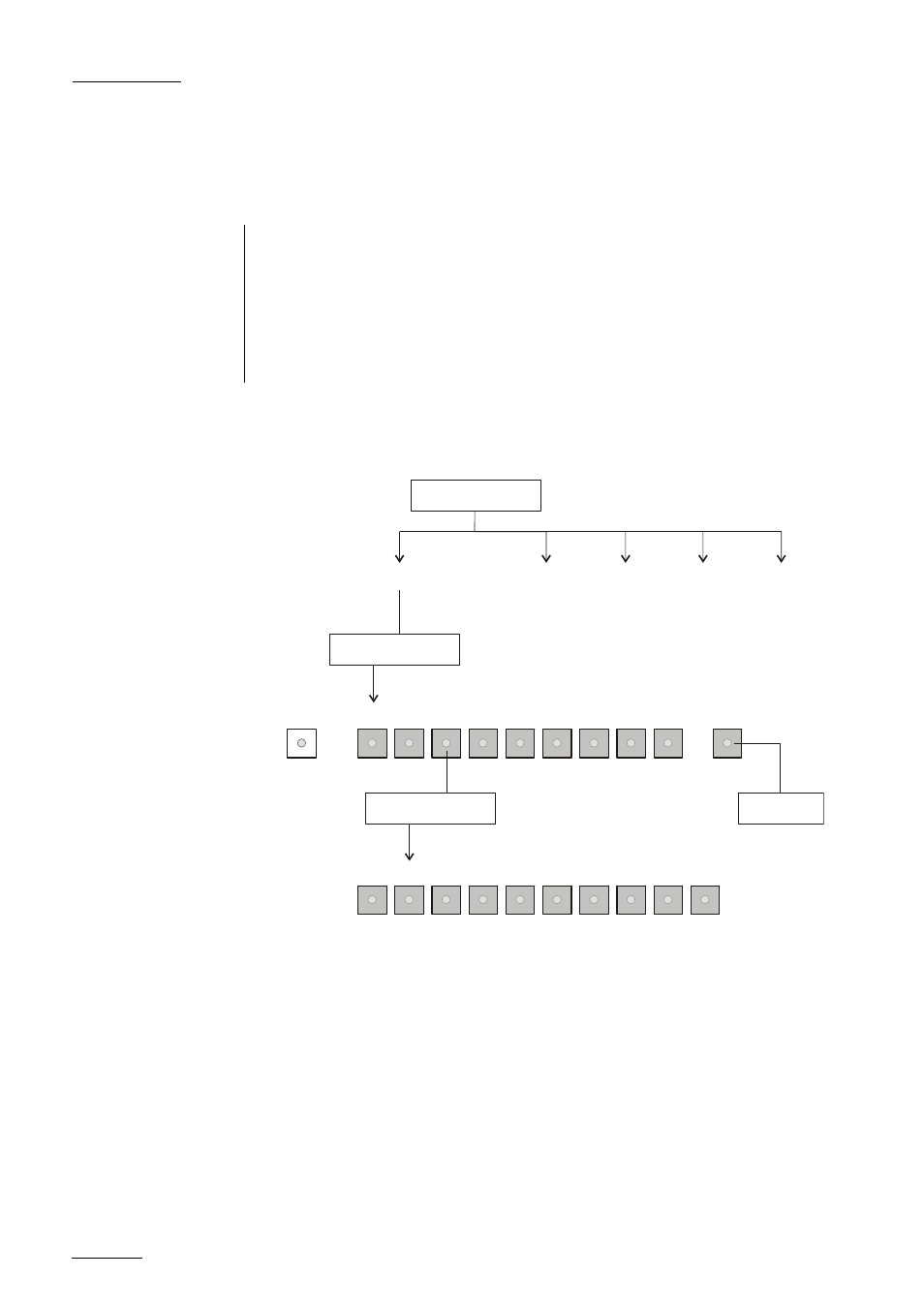

The following diagram represents the hierarchy of the MULTICAM clip
numbering system. As an example, clip number “112” is used:
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
SHIFT
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
Clip Number
Clips Bank
+
Clips Page
PAGE 1 PAGE 2
Playlists
1 to 10
Selected with the PAGE key
1 through 9 - SHIFT + F1 to 9
1 through 10
1 through 10
PAGE 3 … PAGE 10
