Chapter 4 - operation 92
mark A
to mark Point a, drive along the desired path. typically this is the longest edge of
a field. To establish Mark A, press the Mark A softkey. once pressed, the Mark A
softkey will automatically change to the Mark B softkey.
mark B
Point B will be displayed on the lightbar. to establish mark B, press the Mark B
softkey. an a/B line has been established for later use.

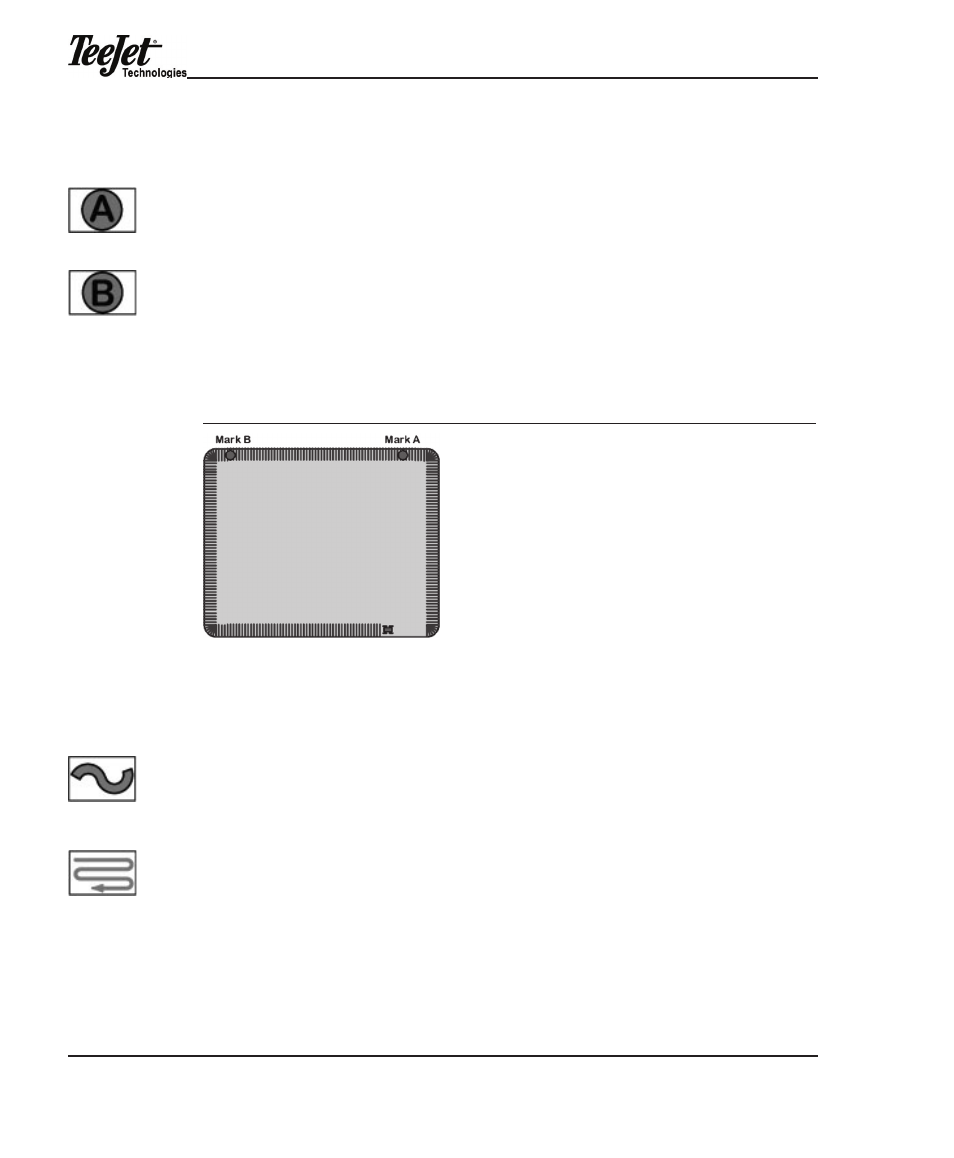

Figure 4-20: Marking Points A and B During Headland Guidance
Switching from headland to Straight-Line a-B guid-
ance
once the operator has completed the desired number of headland circuits, guid-
ance can be switched to Straight-Line to apply the remainder of the field if desired.
Press the Guidance Pattern softkey and select Straight-Line Guidance. if the oper-
ator is being guided along a curved path when the pattern is switched, the lightbar
will no longer provide guidance information.
if Points a and B were marked while in headland guidance, the system will auto-
matically guide the vehicle along the closest parallel line as soon as the operator
switches to Straight-Line guidance. if Points a and B were not marked during
headland guidance, the operator must mark them at this time. the lightbar will
display “maRk a”, indicating that no initial a - B line exists.
Mark A softkey
Mark B softkey
Guidance Pat-
tern softkey
Straight-Line
Guidance
softkey
