Chapter 2 - System overview 20
Table 2-3: Lightbar Setup Parameters
setting description
Lightbar Specifies whether the lightbar will be used (ON or OFF).
Led Brightness Sets the brightness level of the lightbar Leds and text window.
display mode Defines how guidance information is visually conveyed via the lightbar LEDs. Swath
mode: the center lights represent the guidance path. Vehicle mode: the center light
represents the vehicle.
drive Sensitivity Sets the distance each Led represents on the lightbar (typically 1.5 feet).
Look ahead the number of seconds ahead of the vehicle at which the cross track error is calcu-
lated (typically 2.0 seconds).
alarm Defines the alarm situation (Off, Applied Area, Hazards, and All).
hazard Range Sets the distance prior to an impending hazard that the operator is notified. Hazard
must have already been mapped.
Parallel mSg 1
Parallel mSg 2
Parallel mSg 3
Defines which of several lightbar messages are displayed in the #1, #2, and #3 mes-
sage locations. Choices include X-track, application Rate, Course, off, area applied,
ground Speed, heading error, and Swath #. once a choice has been made, it is no
longer an option for the remaining messages.
Curved mSg Defines which lightbar message is displayed in the Curved MSG location. Curved
mSg is used during headland guidance. Choices include Course, area applied,
ground Speed, X-track, application Rate, and off.
gPS ReCeiVeR SetuP
GPS Receiver Setup defines the DGPS accuracy and how the GPS receiver com-
municates with the Legacy 6000 console. this is typically left unchanged from
factory default unless using a tilt Sensor.

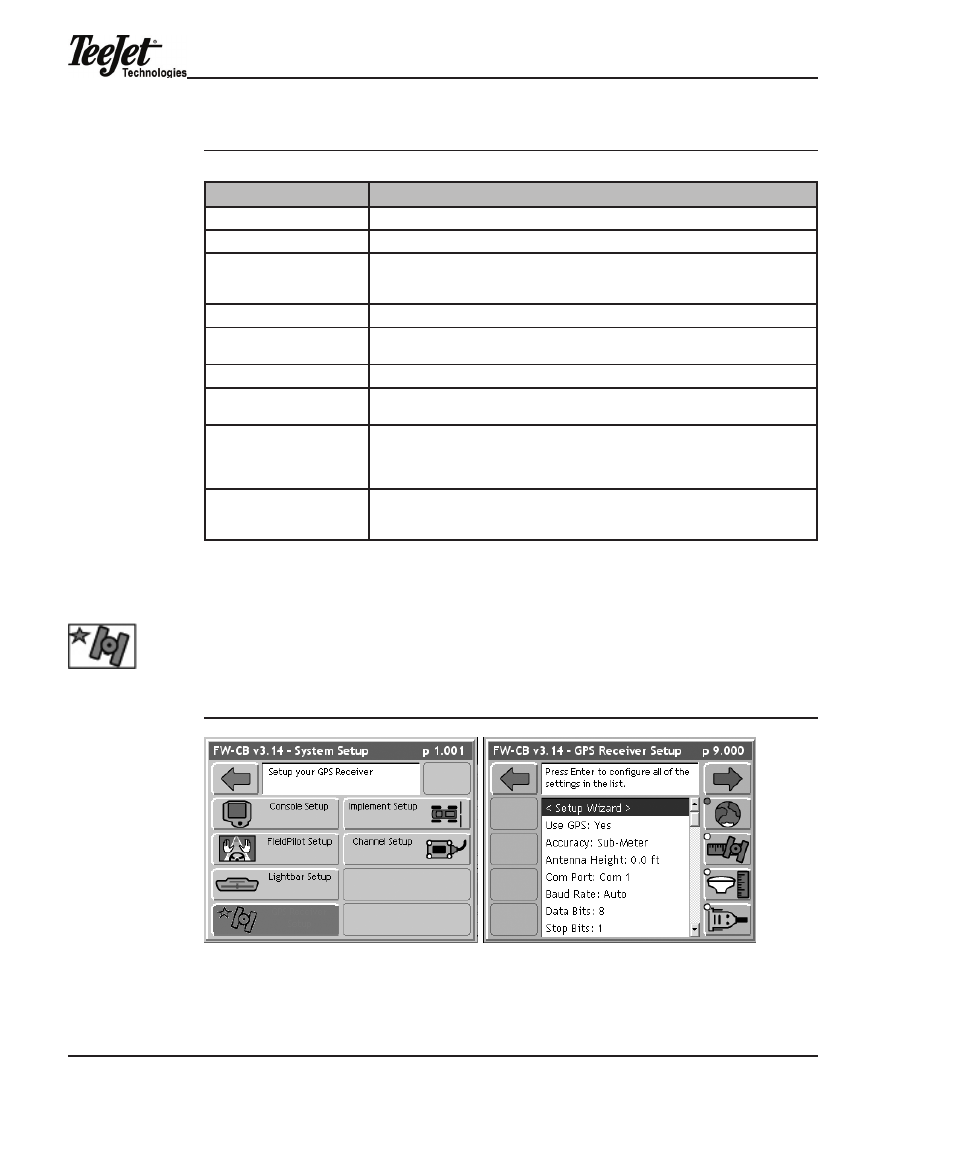

Figure 2-15: GPS Receiver Page
GPS Receiver
Setup softkey
