Chapter 3 - Product application Setup 62

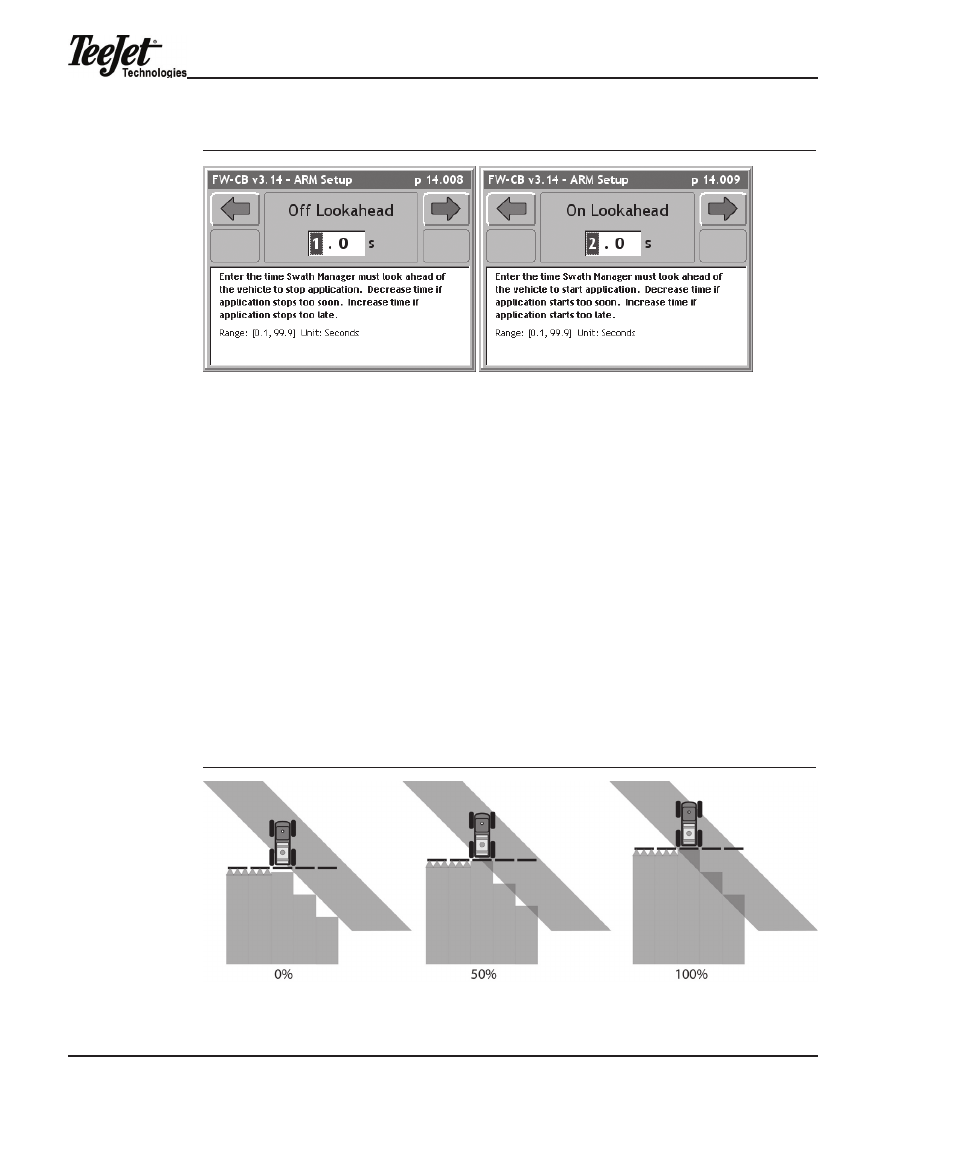

Figure 3-15: Lookahead Setup
Swath manager 0%, 50%, and 100% Settings
Boom Sections are activated and deactivated based on the percentage of the
boom section in an applied area.
use 0% to shut off a boom section when any part of the boom section
•
enters an applied area to minimize overlap.
use 50% to shut off a boom section when half of the boom section enters
•
an applied area.
use 100% to shut off a boom section when the entire boom section enters
•
an applied area.
NOTE: Switching the Master Switch or boom sections OFF will override Swath
Manager and turn sections off.
Figure 3-16: Overlap Settings
