Chapter 1 - introduction 6
Swath maNageR 5 (Sm5)
Swath Manager 5 is used for manual and automated boom control of up to five
boom sections.

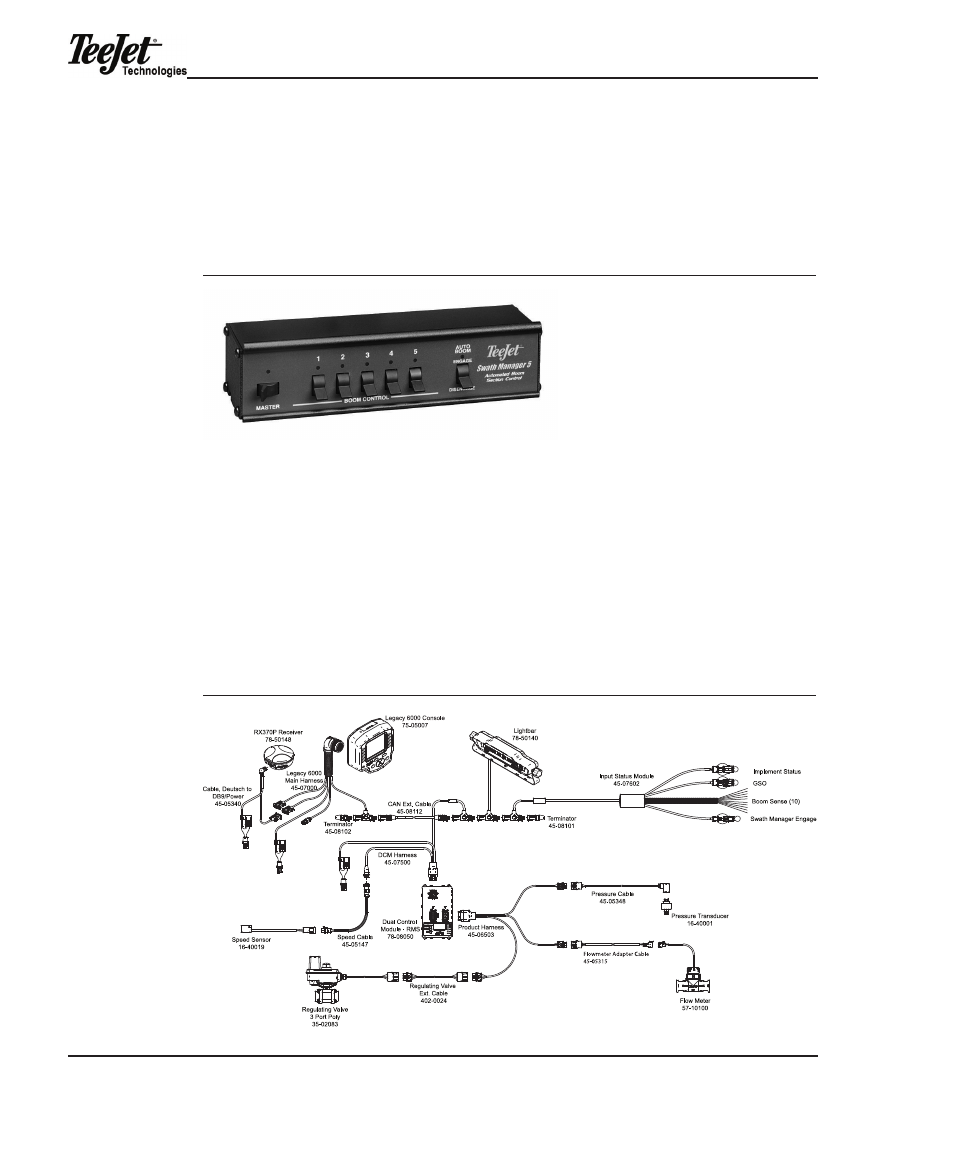

Figure 1-7: Swath Manager 5 (SM5)
NOTE: Most systems will incorporate a Swath Manager 5 or an Input Status Mod-
ule or a CAN Boom Switchbox (typically one per system).
LegaCy 6000 CoNFiguRatioNS
The following diagrams are reflective of typical Legacy 6000 configurations. Due to
the variety of possible configurations, these should be used for reference purposes
only.
Figure 1-8: Single Channel Liquid Flow Meter Configuration
45 -0 53 40
45-08106
CA N IS M C ontrol C able 4 5- 07 6 02
D/C xx: xx
