Chapter 2 - System overview 12

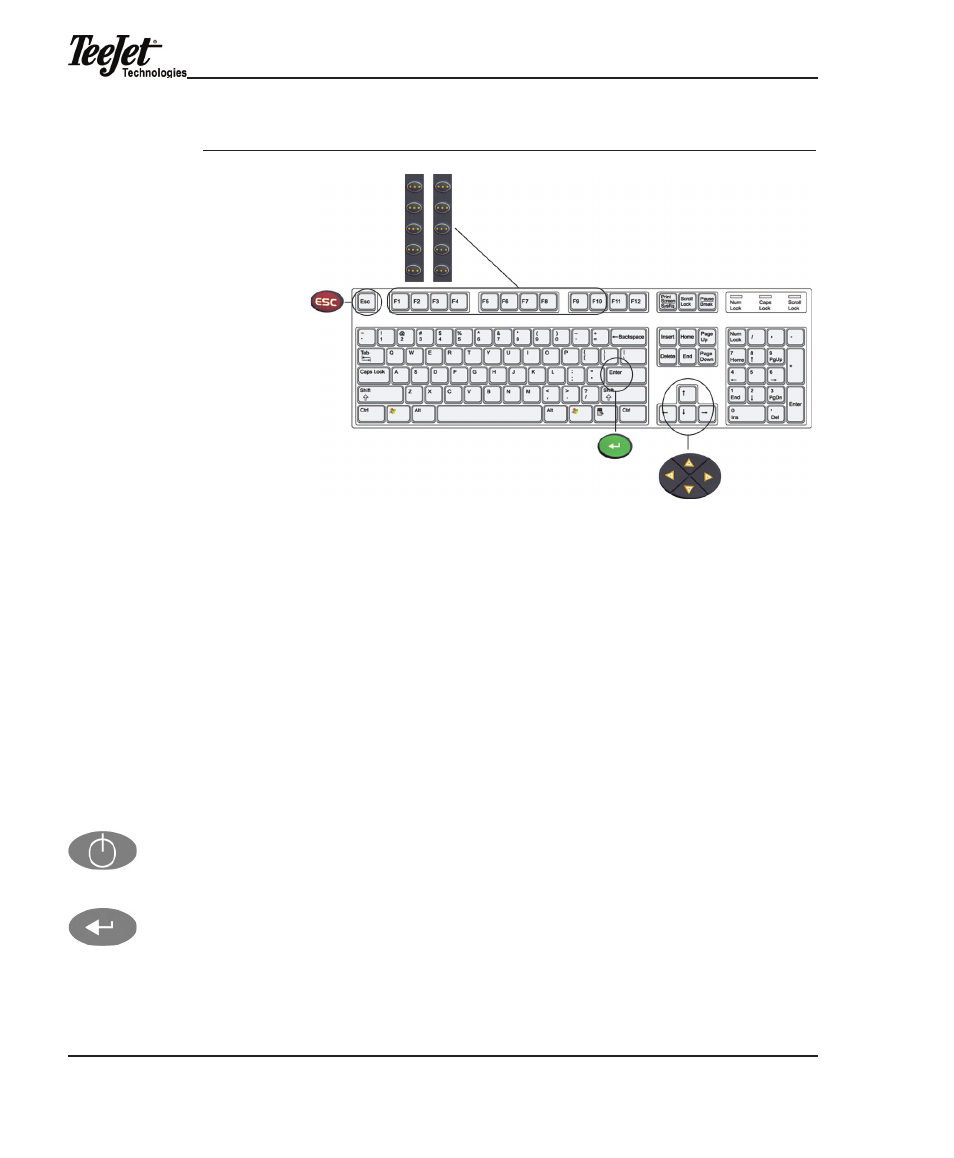

Figure 2-2: (OPTIONAL) USB Keyboard Screen Navigation / Selection Buttons
iNitiaL PoweRuP
NOTE: Version 3.14 Legacy software is capable of working with both Gen I/CAN
modules (PCM/PSM/SSM) and Gen II CAN modules (DCM). This User
Guide is written primarily for Gen II CAN modules, although much of it
still applies if used with Gen I modules. Refer to an earlier User Guide for
System Tools information and other data specific to Gen I.
if system operation is desired with gen i CaN modules, or in eXt mode
with an external rate controller, refer to Console Setup (page 18 in this
user guide) and select the appropriate application before proceeding.
the following steps should be performed upon initial power up of the system.
1. Press the orange Power button (located on the bottom left side of the
console). Launcher, the first page of the Legacy 6000 system, will be
displayed.
2. a message indicating a CaN Bus change has occurred will be dis-
played. Press the Enter button to review the status of the module.
the ten Function buttons located on the left
and right sides of the console are used to select
the icons located next to them. this selection
process takes the place of using the Arrow keys
and Enter button.
the Escape
button works the
same as the ESC
key on the com-
puter keyboard.
when pressed,
the screen will
back up one
screen at a time
until the main
Launcher screen
is reached. Note:
changes are not
saved when ESC
is used before
saving changes.
the Enter button launches the
function of the icon highlighted.
the Arrow keys allow the operator to move
the highlighted cursor across the screen to
the desired icon.
Power button
Enter button
