Chapter 6 - mapper 128

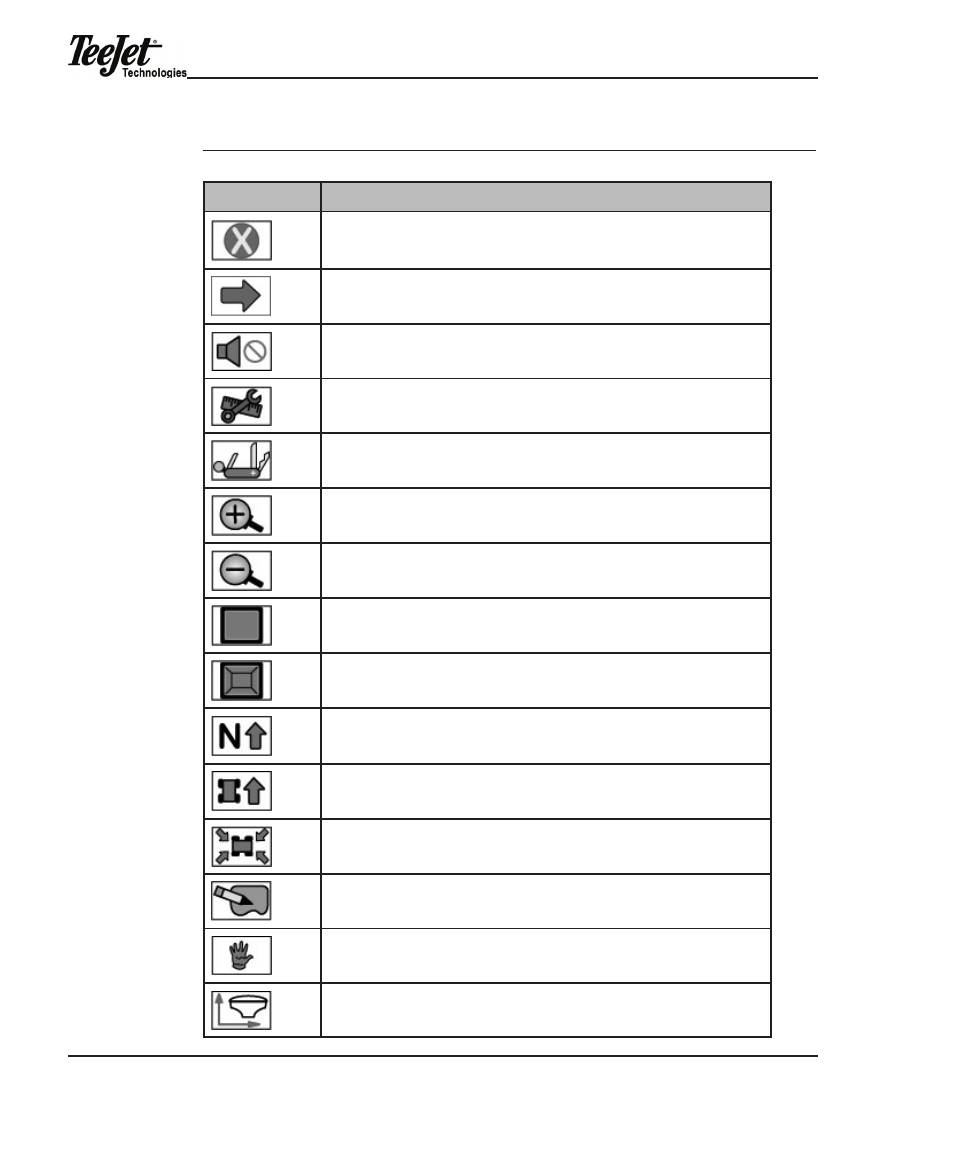

Table 6-4: Map Page Softkeys
settings description
exit. exits out of the mapper process and returns to the main menu.
Next Page. Switches between the map page and the information page.
alarm Silence. Silences an alarm.
System devices. allows the operator to monitor the devices in use without exiting out
of the mapper pages.
View options. opens an options menu.
zoom in. decreases the area displayed on the page (5 zoom levels).
zoom out. increases the area displayed on the page (5 zoom levels).
Full Screen. the entire map page is replaced by the map view. used to view more
vehicle trajectory. Press any key to return to normal page view.
Partial Screen. once the Full Screen softkey is pressed, the softkey changes to the
Partial Screen. when pressed, the display area will contain the map view and the
mapping softkey column once again.
North up View. ensures North consistently remains at the top of the page view. once
pressed, this softkey changes to the Cog View softkey.
Course on ground (Cog) View. ensures the vehicle’s heading (course) is pointing to
the top of the page view. when pressed, this softkey changes to the North up View
softkey.
Center Vehicle. Centers the vehicle on the map page.
New object. Launches a menu that allows the mapping of an object.
Pan. Allows the operator to focus in on a specified area of the map without the neces-
sity of travelling to the area to look for gaps in application.
antenna offset. allows for the adjustment of the antenna offset.
