Adjust Oil Flow
1. From the main Launcher menu, select the System Tools softkey followed
by Device Manager. Scroll through the Device Manager options using
the Arrow keys and select the “FieldPilot” option. Press the Tools softkey
(F7).
2. Perform the test rolling slowly forward in an open area at 1 - 2 mph (1.5 –
3.0 km/h). do not exceed 2 mph (3 km/h) during the test.

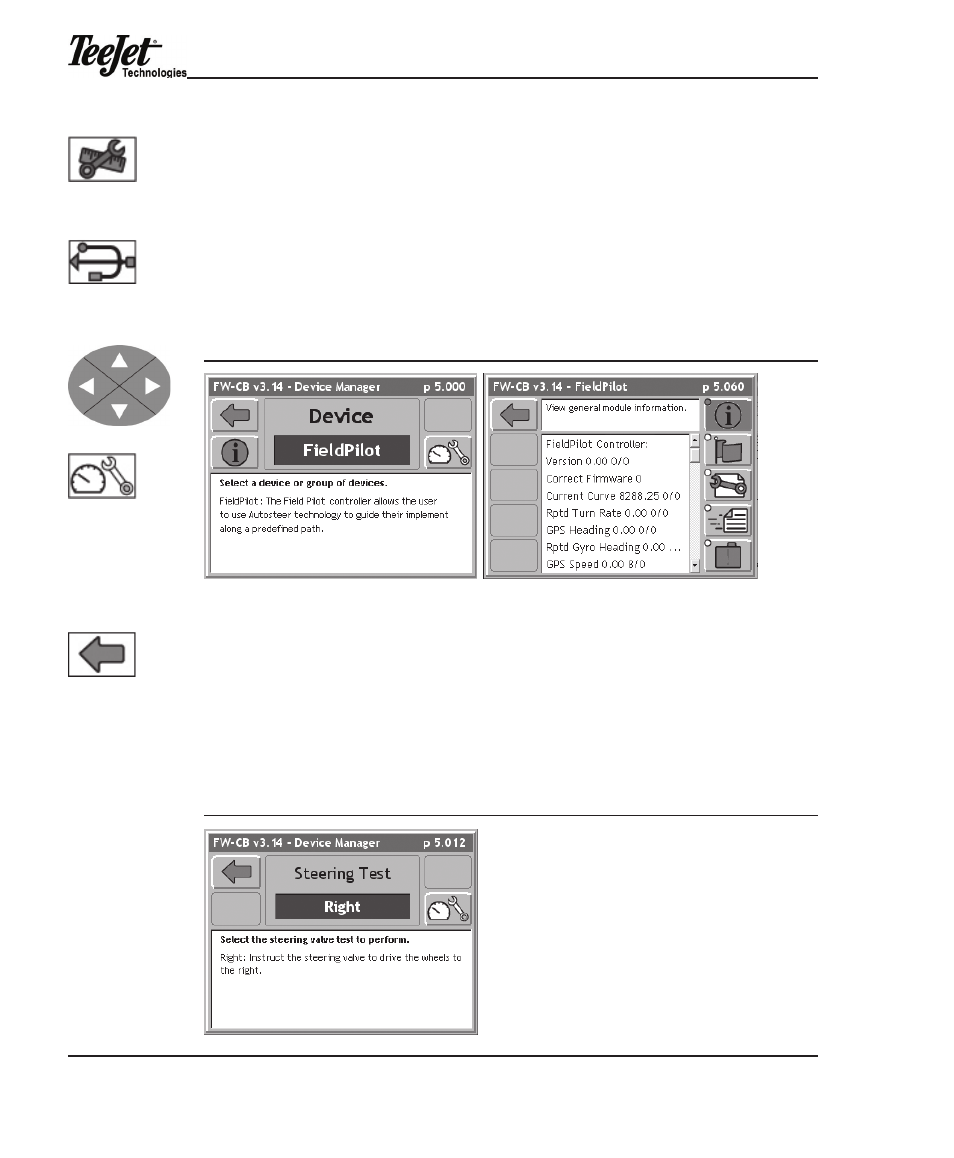

Figure 2-36: FieldPilot Steering Test
3. Scroll through the list in the Steering test using the Up / Down Arrow
keys. the options “Left”, “Right”, and “off” are available. once selected,
the command to turn Left or Right can be executed by pressing the F7
softkey. the machine will then steer left or right at full open and will con-
tinue to do so until the operator exits the steering test.
At any time dur-
ing the test, the operator can press the Back Arrow softkey or the
ESC key to stop the valve test.
Figure 2-37: FieldPilot Steering Test - Right Selection
System Tools
softkey (F2)
Device Manager
softkey
Arrow keys
Tools softkey
Back Arrow
softkey (F1)
NOTE: If significantly different times are
found between Left to Right and
Right to Left steering, a physical
problem may be present in the
steering system.
