Points mapping
Points mapping allows a point to be marked at the vehicle location (must have a
.GMF file name established). To map a point, navigate the vehicle to the location of
the object or feature to be mapped. Press the Point softkey to launch a menu that
includes the point and hazard symbols. Select the Point symbol to map a point.
Press the Enter button and the Naming Dialog screen will be displayed. enter the
name of the point using the Arrow keys and press the Enter button to accept the
point name and return to the Map page.
the Point Name screen will retain the 10 most recent entries. to select a recent
entry, scroll through the dialog window using the Arrow keys and select the desired
point name. to add a new name, press the New Name softkey. a name input dialog
will launch that will allow a new name to be entered using the Arrow keys. Press
the Enter button to save the new name.

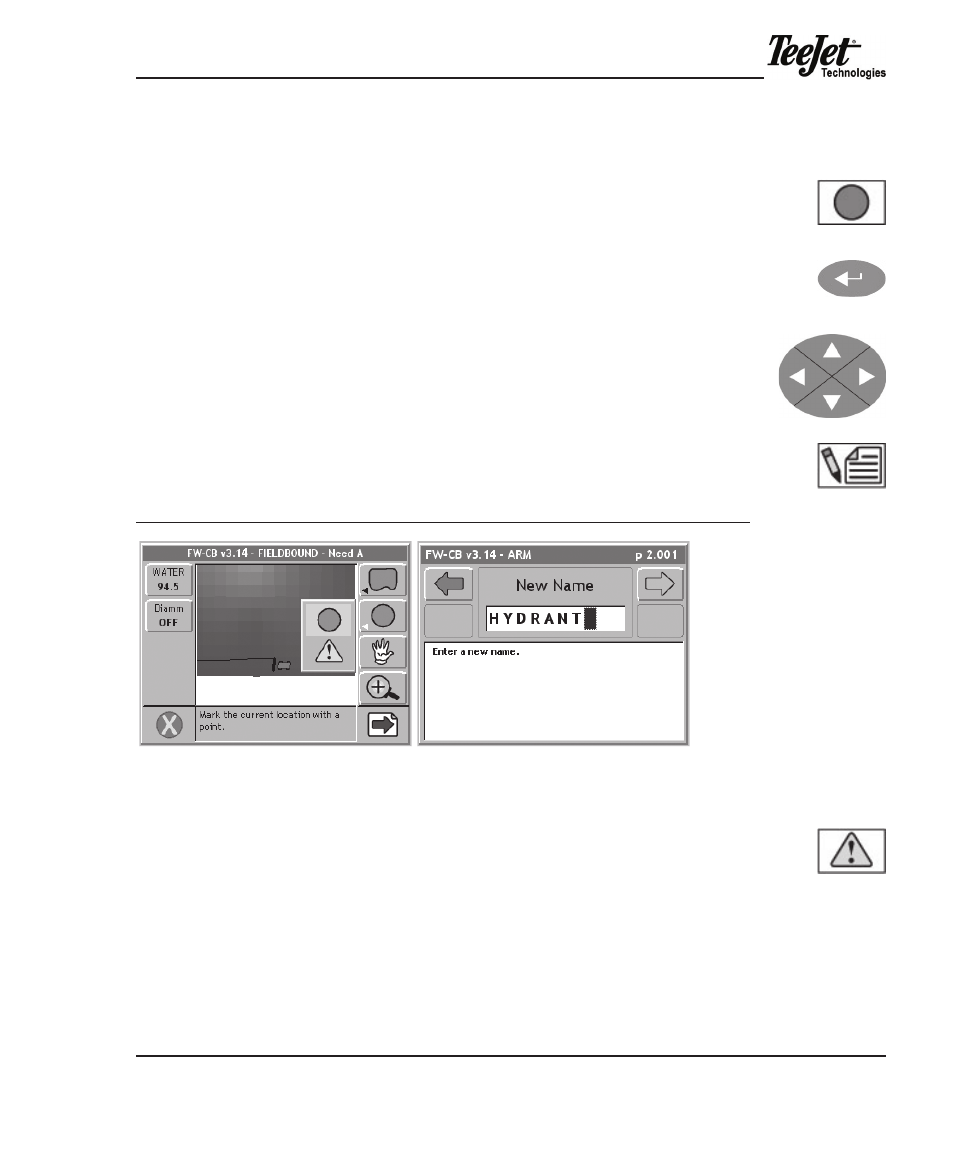

Figure 4-34: Mapping and Naming Points
hazard mapping
hazard mapping allows hazards to be mapped at the vehicle location (must have
a .GMF file name established). The hazard mapping feature can be used to notify
the operator of potentially hazardous objects or features within the field.
to map a hazard, navigate to the location of the object or feature to be mapped.
Press the Point softkey to launch a menu that includes the point and hazard sym-
bols. Select the Hazard symbol to map a hazard. Press the Enter button and the
Naming dialog screen will be displayed. enter the name of the hazard using the
Arrow keys and press the Enter button to accept the hazard name and return to
the Map page.
Point softkey
Arrow keys
Enter button
New Name
softkey
Hazard symbol
