appendix B - Creating Calibration table 150
Loading Calibration Table in Legacy 6000
with the console off, place the PC Card in the Legacy 6000 and power the console
oN.
1. From the Launcher page select the System Devices softkey.
2. Select device manager from the System Tools page.
3. From the Device Manager page, select “Console” using the Arrow keys.
4. Press the Update Console softkey.
5. From the Update Files page, use the Arrow keys to select “Cal table”.
Press the Update Console softkey. an information bar will be displayed along with
a message that the console is being updated. once the bar is no longer displayed,
the console update is complete and the Calibration table has been loaded onto
the L6k.
using the Calibration Table
to implement the calibration table, the table must be activated during Primary Sen-
sor setup. once activated, the calibration numbers can be chosen during Product
Setup before product application. it is recommended that each Calibration table
setting be calibrated using the procedure from the ARM Launcher page.

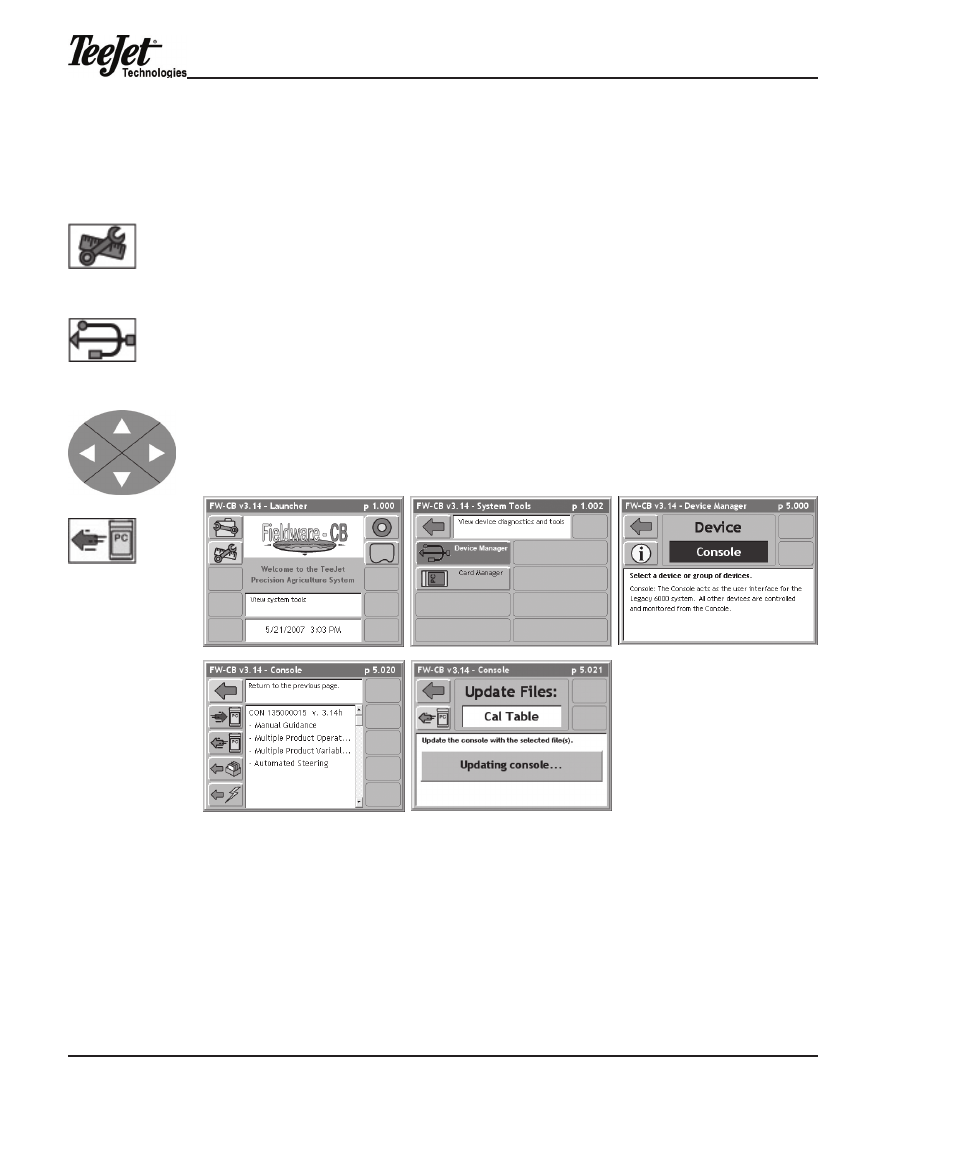

System Devices
softkey
Device Manager
tab
Arrow keys
Update Console
softkey
