Legacy 6000
98-05053 R2
95
Circle Pivot guidance
Circle Pivot Guidance is used for product application in a center pivot field while
being guided along a circular guideline that matches a center pivot irrigation sys-
tem radius. Circle Pivot guidance is similar to Straight-Line guidance in that the
operator marks Point a, travels along the arc that the pivot would create (a wheel
track is a good guide), and then marks Point B. once Point B is marked, a circu-
lar guideline will be displayed on the Map page. as the operator completes one
circular pass and moves in either direction (left or right) to the next guideline, the
system automatically creates the next circular guideline.

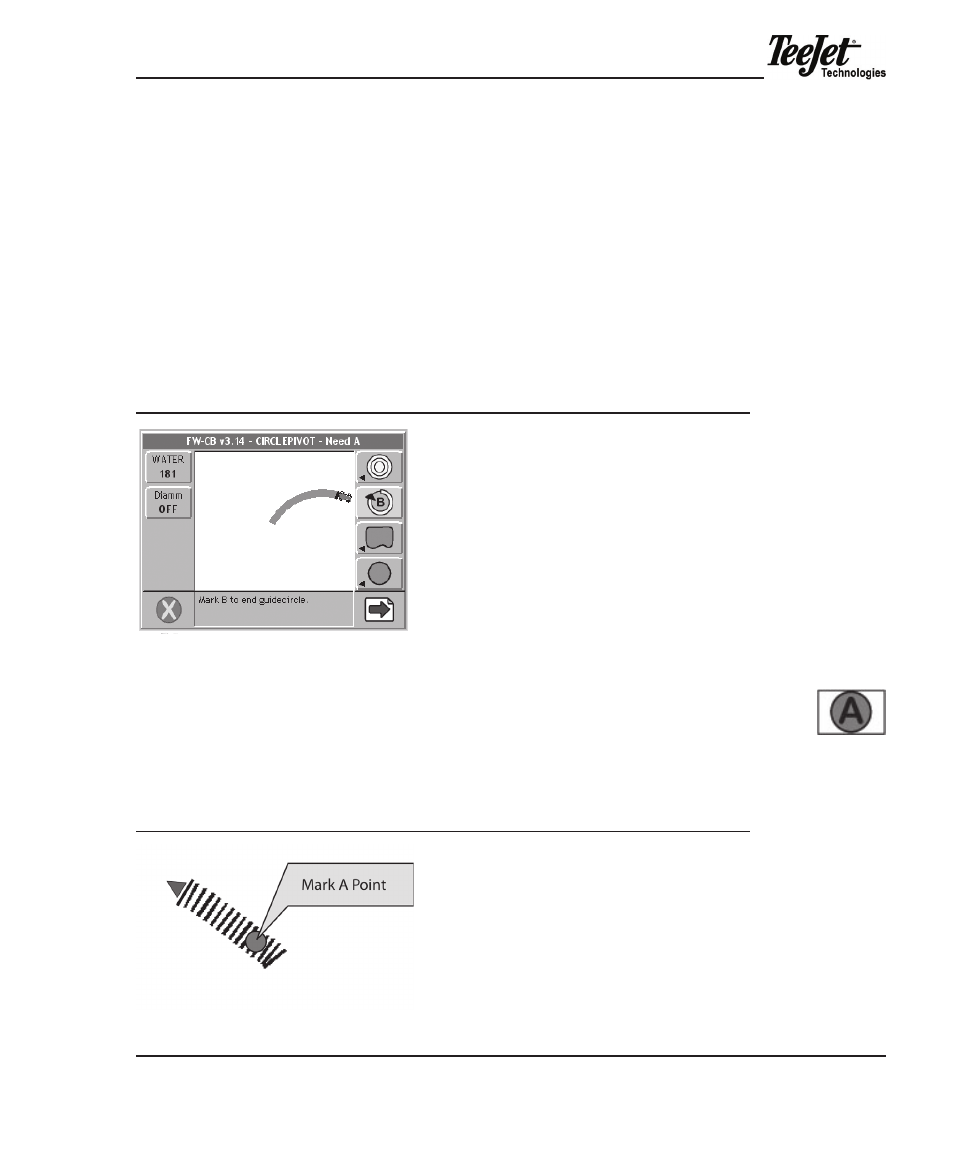

Figure 4-23: Circle Pivot Pattern
mark A
to mark Point a, while driving along an existing wheel track, press the Mark A
softkey. once pressed, the Mark A softkey will automatically change to the Mark
B softkey.
Figure 4-24: Marking A in Circle Pivot Pattern
Mark A softkey
