Chapter 2 - System overview 16

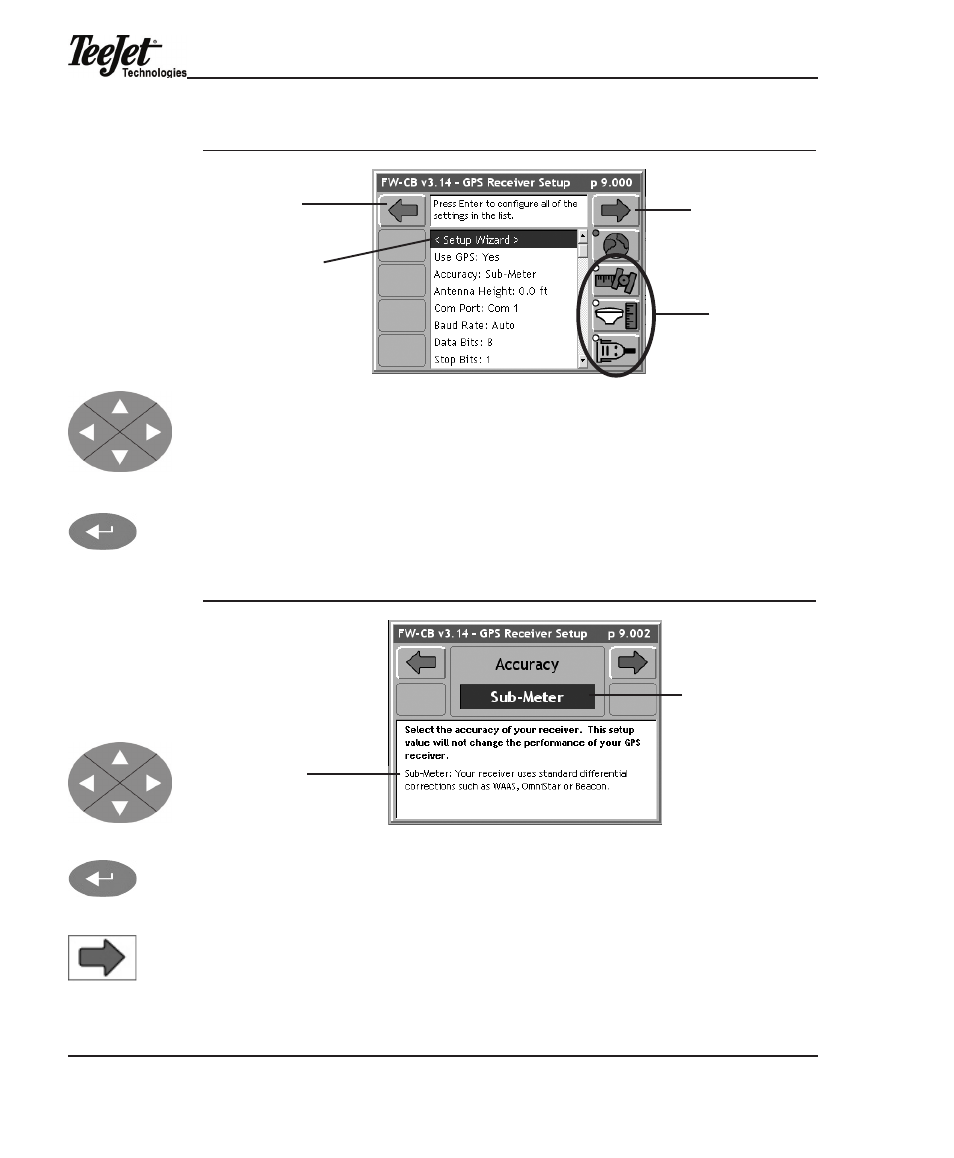

Figure 2-9: Example of Menu Page
Parameter Setup pages contain parameter information. the name of the param-
eter is displayed in the top center location of the window banner screen. the name
of the sub-parameter is displayed below, followed by setting description informa-
tion.
Navigation through Parameter Setup pages is accomplished by using the Arrow
keys to scroll to the appropriate parameter and the Enter button to view the pa-
rameter options.
Figure 2-10: Example of Parameter Page
data entry on parameter pages is accomplished by the following procedures:
1. highlight the desired character space and use the Arrow keys to scroll
through the alphanumeric character list.
2. Press the Right Arrow key to move to the next character space. Continue
until the entry is complete.
3. Press the Enter button to save the settings or press the Forward Arrow
softkey to save and continue.
Forward Arrow
softkey (save and
exit)
Sub-group
softkeys
Back Arrow
softkey ( exit
without saving!)
highlighted
Setup Parameter
Arrow keys
Enter button
Setting descrip-
tion and help text
window
Name of Setup
Parameter
Arrow keys
Enter button
Forward Arrow
softkey (F6)
