to use one prescription map for all products:
Repeat the following process for each product, select-
ing the same prescription map. make sure to change
the “Layer” to distinguish which product is assigned to
each Channel.

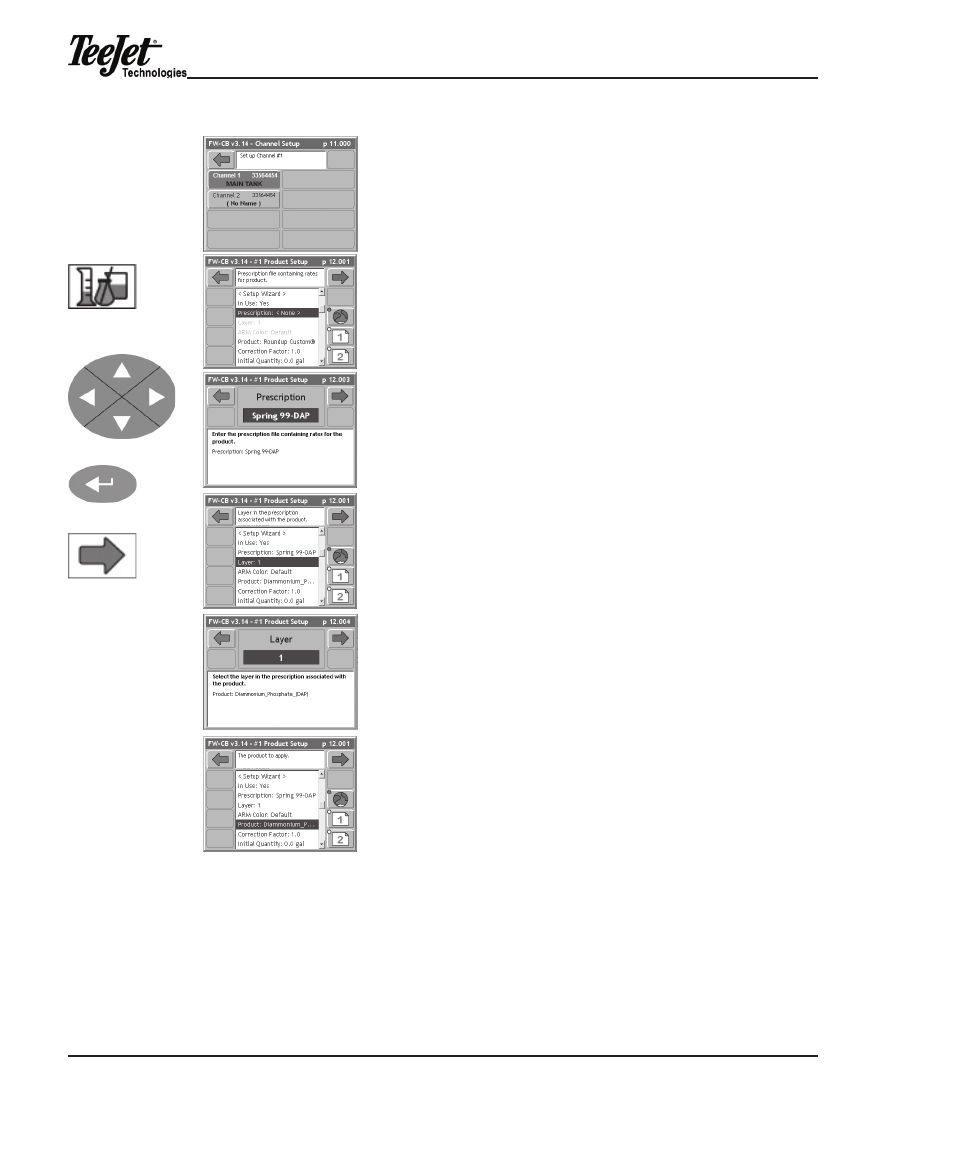

1. From the ARM Launcher page, press the Product
Setup softkey.
2. use the Arrow keys to select the desired Channel
to be configured. If only one channel is established
on the system, this screen will not appear.
3. Select “Prescription” from the Product Setup
screen. Press the Enter button.
4. Select the appropriate prescription map by us-
ing the Arrow keys to scroll through the prescrip-
tion options. “None” is the default setting. Press
the Forward Arrow softkey to continue to the next
page.
5. Select “Layer” from the Product Setup screen.
Press the Enter button.
6. Select the layer that matches the product and
Channel selected. the operator must know which
product is assigned to each layer in the map. (Lay-
er 1 for Product 1, Layer 2 for Product 2, etc.)
7. to help verify that the correct layer and product
has been selected, the product name should ap-
pear.
aRm Color (Skip if not using Variable Rate)
aRm color is used to select the color scheme that best represents the change in
rates across a prescription map. to select the aRm Color option, scroll to “aRm
Color” on the Product Setup page using the Arrow keys and press the Enter button.
the Left and Right Arrow keys are used to highlight the Lo and hi Colors. the Up
and Down Arrow keys are used to change the colors.
Product Setup
softkey
Arrow keys
Enter button
Forward Arrow
softkey (F6)
