Table 3-5: Product Setup
Item description
in use Defines whether the Control Channel will be used to apply product.
Prescription If using Variable Rate product application, select the prescription file (.ARM) that
contains information for that channel. The (.ARM) file must be on the root of the PC
Card, and the PC Card must be inserted into the L6k. if not using variable rate, leave
this setting at .
Layer Some prescription files (.ARM) can contain several products in a single file. A single
product is associated with a single channel. In a multiple product prescription file it is
necessary to establish which product layer is associated with the selected channel. if
there is only one product layer in the (.ARM) file, this setup item is automatically set to
Layer 1 and this page is skipped in the Product Setup wizard process.
aRm Color Allows the operator to select a color scheme for the prescription file map shown on the
Legacy map page.
Product Product Setup contains a database with approximately 4000 product names and their
associated ePa numbers. Products can be selected from this database. if using a
prescription map (.aRm), product setup automatically extracts the product name from
the (.aRm) product layer or user can enter product name.
Correction Factor Factor for solutions heavier or lighter than water with pressure based applications
(only for Pressure Based liquid applications).
Product density the density of the product being applied in granular or Nh3 applications (refer to aP-
PeNdiX C - Nh3 aPPLiCatioN).
Calibration table Value (e.g.,
gate height)
if a Calibration table was established in Channel Setup (refer to ChaPteR 2 - PRima-
Ry SeNSoR), and has been populated either manually or by calibration procedures,
the appropriate values can be selected here for use in the job.
initial Quantity the initial quantity of the product loaded in the tank, bin, etc.
Rates a - e the aRm software allows 5 preset application rates to be selected.
Product Name Selection
if variable rate product application will not occur, the product being applied can be
selected from the Fieldware Products database. to use variable rate application,
the product name can be extracted from an existing (.ARM) file.

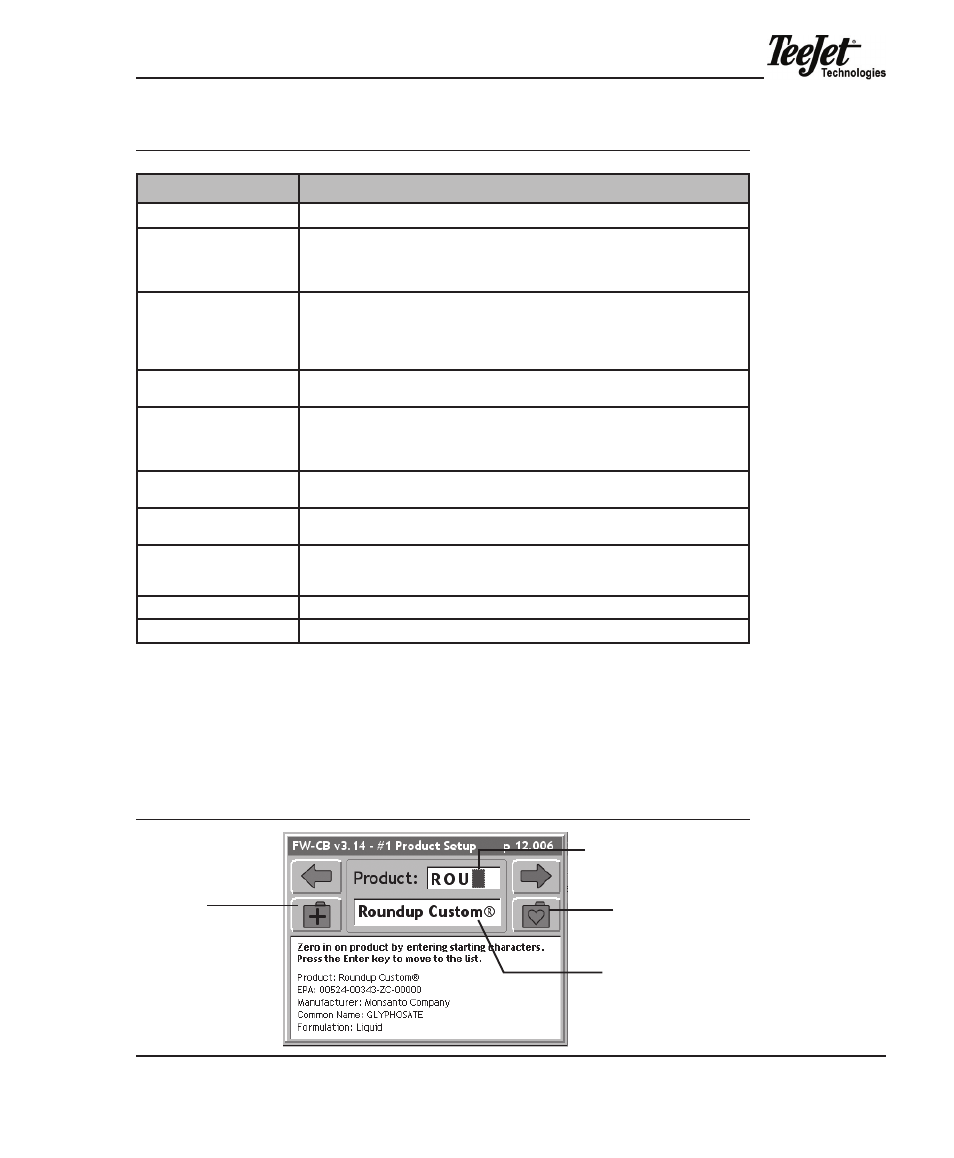

Figure 3-23: Product Selection
New Product
softkey
enter Name
Favorites softkey
Product database
pick list
