Chapter 2 - System overview 36
monitor Selection
a monitor is used to observe the status of an application delivery system element
(e.g., RPms on a shaft sensor) and is not used for any control type function. up to
four monitor sensors may be used in the delivery system. the monitor types avail-
able (refer to table 2-17) are based on the application, Primary Sensor, and Sec-
ondary Sensor types selected. each monitor type will have an associated Settings
softkey that launches the Monitor Settings page. the monitor Sensor parameters
are dependent upon the type of monitor Sensor selected.
Channel Setup contains four Monitor Setup pages (monitors 1 - 4). it is not neces-
sary to configure four monitors. Select the monitor(s) used and press the Forward
Arrow softkey to save the settings. if there is no monitor, select the “None” setting
and continue to the next page.

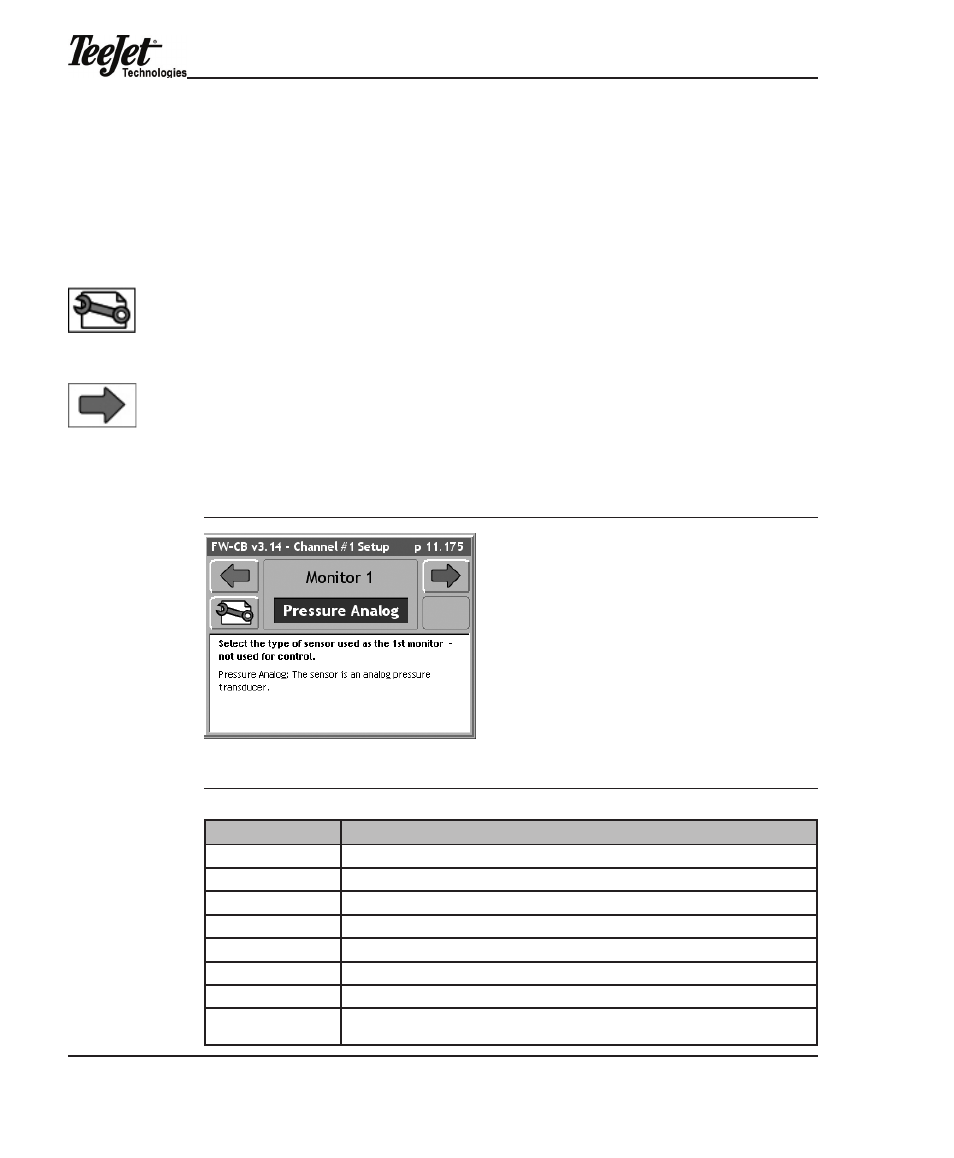

Figure 2-30: Monitor Page
Table 2-17: Monitor Options
settings description
Shaft monitors shaft rotation speed.
Product detect monitors the on/off Status of a product (e.g., Chemical Flow monitor of an injection Pump).
Low Bin monitors low product level.
Status monitors engaged or disengaged status.
Pressure digital monitors pressure related or not related to application.
Pressure analog monitors pressure related or not related to application.
Flowmeter Monitors flow of liquid using a flowmeter.
Spread Switch the sensor detects if the spread switch is on. this sensor is required for operation without a
CaN Switch Box or iSm, and can only be used with a one-section implement.
Settings softkey
(F2)
Forward Arrow
softkey (F6)
