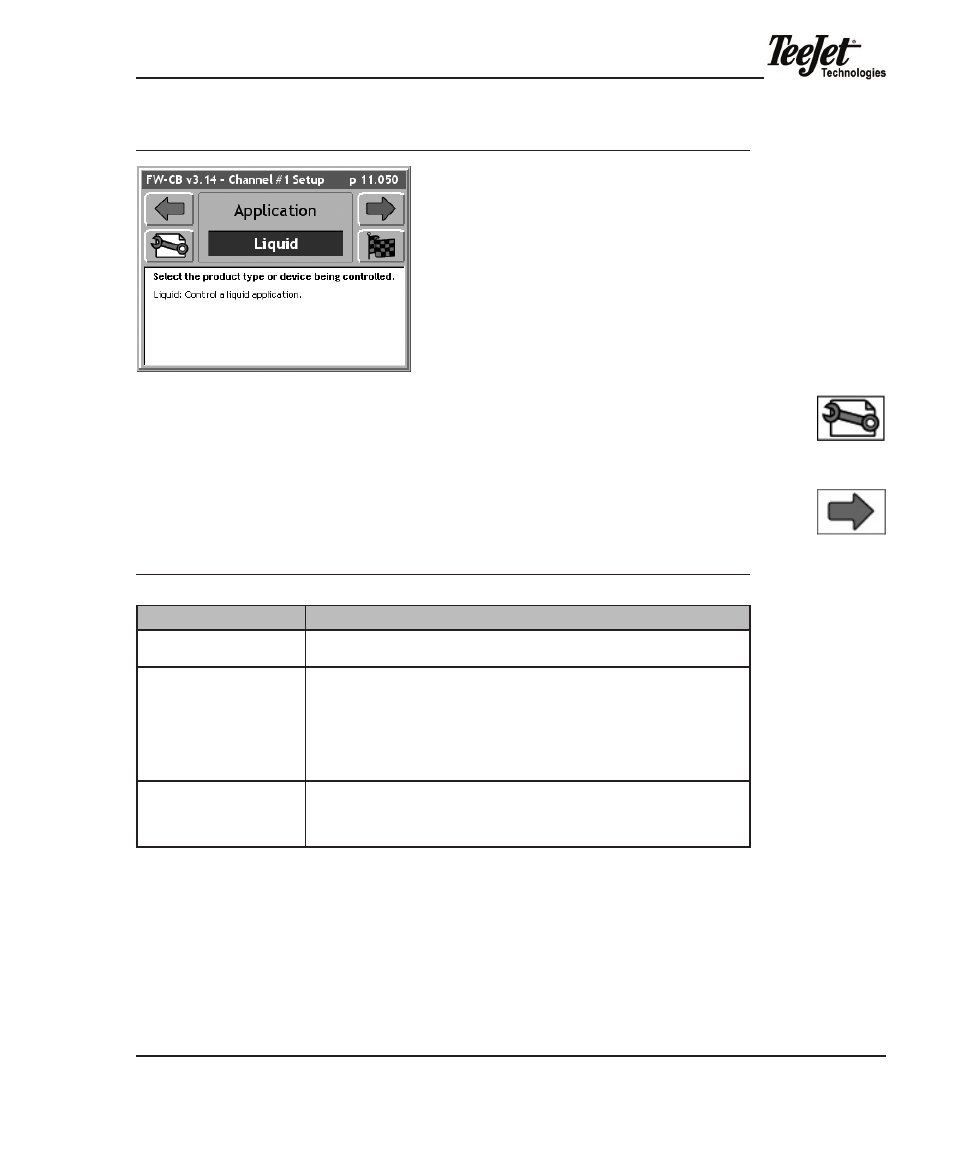

Figure 2-21: Application Page
Application Type settings
all application types have the same setting options when the Settings softkey
is pressed (refer to table 2-7 for a detailed description of the settings). once the
settings are established, press the Forward Arrow softkey to advance to the next
Channel Setup page.
Table 2-7: Settings Details
settings descriptions
application Name this is the channel name that appears on the Channel softkey as illustrated in Figure
2-19.
Configuration Defines the relationship between the sensor and the product.
Standard Liquid
Standard granular
Split - granular application. material shaft speed does not change as booms are
turned off (e.g., Left/Right chains)
Reflow - Liquid application. Material from closed boom valve is recirculated back to
tank or pump.
Channel Link multiple channels can be linked. used if one product is dependent on the other for
proper application. when channels are linked and the master fails, both channels
shut down (e.g., an injection pump may be linked to the carrier channel so that if
there is no carrier flow, the injection pump will not run).
Forward Arrow
softkey (F6)
Settings softkey
(F2)
