Figure 2-7: Launcher Page
Page Layout aNd NaVigatioN
there are three types of page layouts used throughout the Fieldware software:
Launcher pages, menu pages, and Parameter Setup pages.

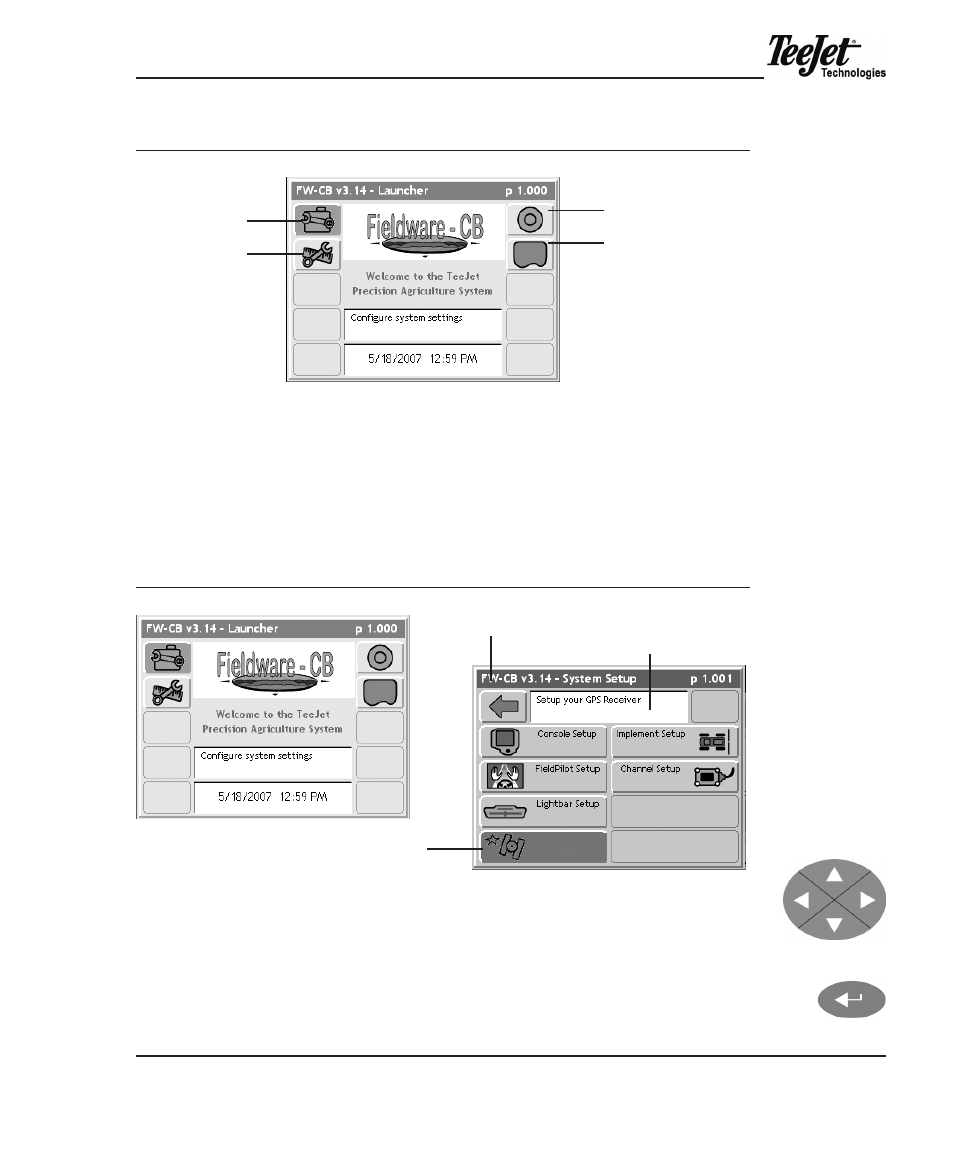

Launcher pages provide access to multiple setup applications as illustrated in Fig-
ure 2-8.
Figure 2-8: Examples of Launcher Pages
menu pages contain setup parameters associated with a particular theme (e.g.,
gPS Receiver Setup). typically a setup wizard guides the operator through the
setup process for each specific topic. Sub-group buttons display only those param-
eters associated with the specific topic being configured.
Navigation through menu Setup pages is accomplished by using the Arrow keys
to scroll to the appropriate parameter and the Enter button to view the parameter
options.
System Tools
softkey
System Setup
softkey
ARM Bullseye
softkey
Mapper softkey
highlighted application
help window
Software Version, Page
Name and Number
Arrow keys
Enter button
