input lines for sensors are established on the Sensor Settings page.
Secondary Sensor options include:
Flowmeter
•
Pressure digital
•
Pressure analog
•
granular
•
Shaft
•
injection
•
to access the sub-settings, locate the two Sub-Settings softkeys on the right side
of the screen. use the two softkeys to toggle between the screens. Refer to table
2-16 for a description of the sub-settings. when the primary settings and param-
eters have been selected, press the Forward Arrow softkey to advance to the next
Channel Setup page.

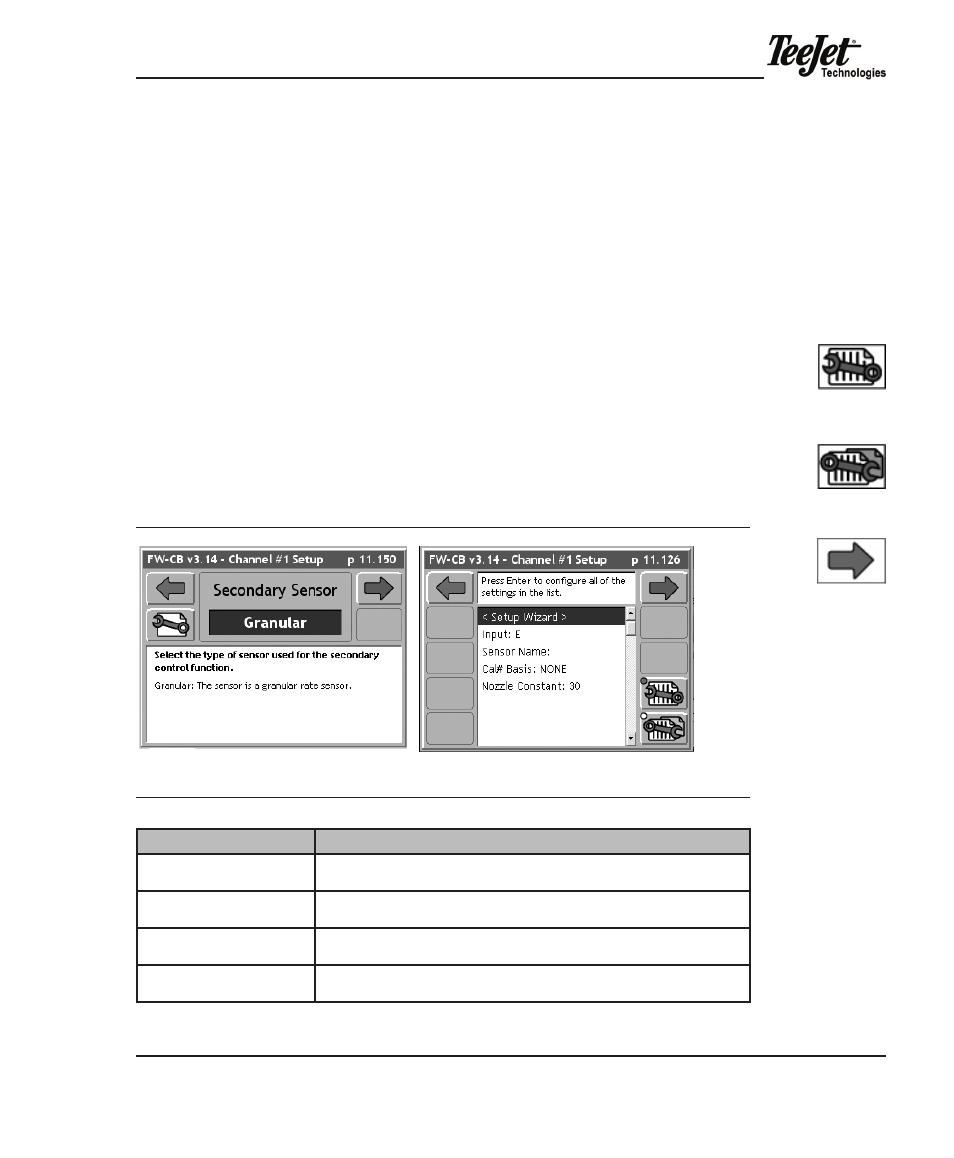

Figure 2-29: Secondary Sensor/Sub-Settings
Table 2-16: Secondary Sensor Sub-Settings
settings description
input Defines digital and analog sensors. Sensor inputs A-D are digital (Flowmeter and
slot sensors) and sensors e-F are analog (pressure).
Sensor Name used to label a particular sensor or monitor. this information is not stored in the
Channel and is used for messaging to the user only.
dual warning% Defines the maximum acceptable % difference between the primary and secondary
sensor outputs before the operator is warned.
dual warning delay Defines the time that the primary and secondary sensor outputs can exceed the
dual warning % before initiating the alarm.
Forward Arrow
softkey (F6)
Initial-Settings
softkey (F9)
Sub-Settings
softkey (F10)
