Chapter 4 - operation 102

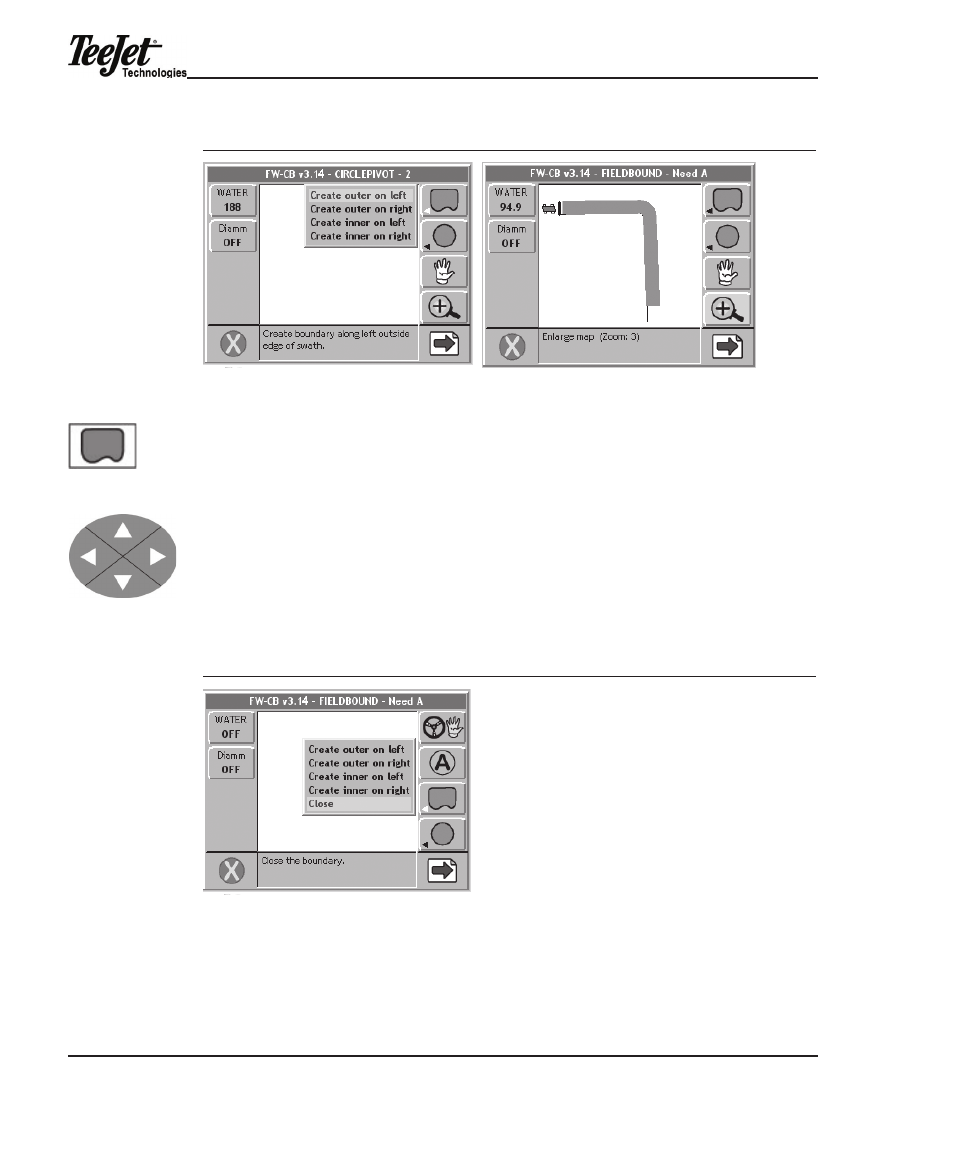

Figure 4-32: Establishing A Field Boundary
Close/Pause Boundary map Process
to close or pause the map boundary process, press the Map Boundary softkey.
a menu will be displayed with the choices “Close” or “off”. Select “Close” to end
the map boundary process. this will draw a line between the starting point and the
vehicle location where the boundary was closed. Select “off” to allow boundary
mapping to be temporarily stopped. to begin boundary mapping again, press the
Map Boundary softkey and select Create on Right or Create on Left with the Ar-
row keys. this will begin the mapping process again and will draw a line between
where the mapping stopped and where it started again.
Figure 4-33: Map Boundary Process
maPPiNg PoiNtS aNd hazaRdS
mapping points and hazards during product application is another feature of Field-
ware for the Legacy 6000.
Map Boundary
softkey
Arrow keys
