Tilt sensor functions – TeeJet Legacy 6000 Manual User Manual
Page 76
Legacy 6000
98-05053 R2
71
NOTE: The Legacy 6000 area applied is represented by a solid swath or hash
marks representing the boom width.

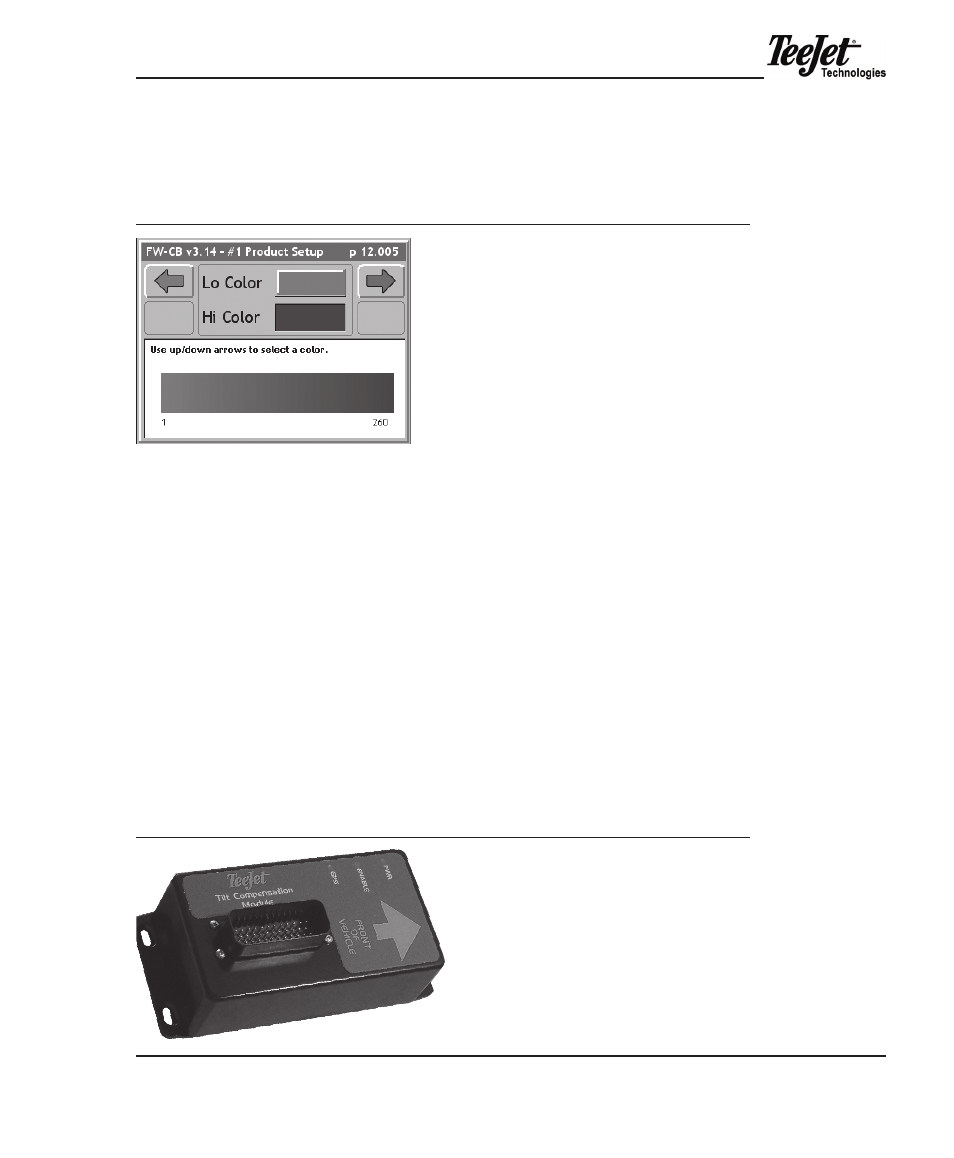

Figure 3-25: Color Settings
tilt Sensor Functions
the Legacy 6000 must be loaded with Fieldware software version 3.10 or later
to be compatible with the tilt Compensation module (tCm). when operating the
tCm, position data originating from the gPS receiver will be compensated for ve-
hicle tilt errors. Correct information will be sent to the console.
there are three Leds visible on the tilt Sensor that indicate the following:
Blue - blinks two times per second when the unit is powered and run-
•
ning
green - steady oN when tilt correction is enabled; otherwise oFF
•
yellow - Blinks one time per second when valid gPS location data is be-
•
ing received (Nmea-0183 gga)
Figure 3-26: Tilt Compensation Module
