Legacy 6000
98-05053 R2
107

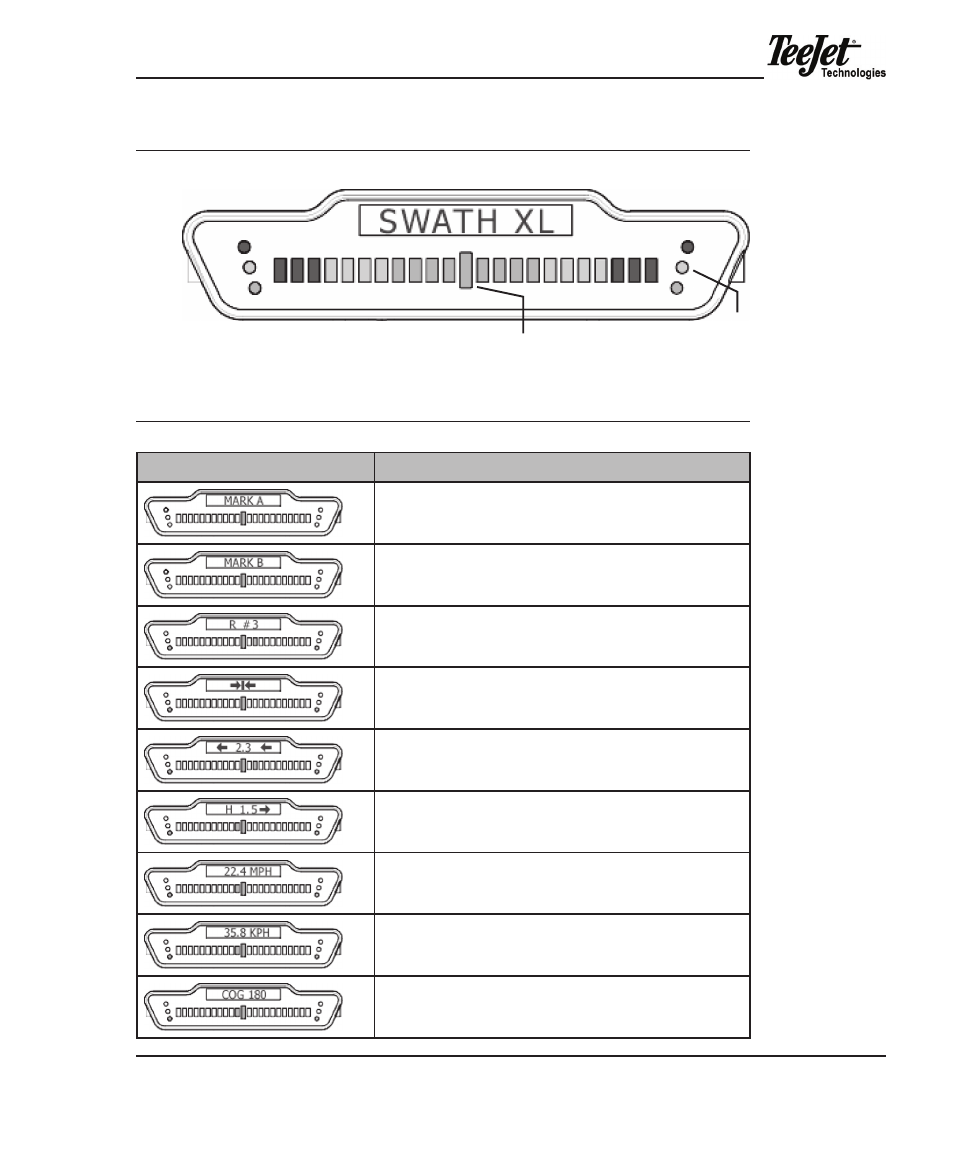

Figure 4-38: Swath XL Lightbar
Table 4-5: Swath XL Lightbar Index
setting description
mark a displayed when establishing Point a of an initial guideline.
mark B displayed when establishing Point B of an initial guideline.
Swath # a user-selected message. indicates the distance left or right of
the initial guideline.
X-Track A user-defined message. This message is displayed when the
vehicle is on the guideline and there is no error.
X-Track Error A user-defined message indicating the operator is off
track and needs to adjust guidance to the left 2.3 ft. (assuming the
system is set to uS and lightbar is set to Swath mode.)
Vehicle Heading Error A user-defined message indicating the error
between vehicle heading and the guideline in degrees. the arrow
indicates steering direction.
Ground Speed A user-defined message indicating the vehicle speed in
miles per hour (mPh). System unit is set to uS.
Ground Speed A user-defined message indicating vehicle speed in
kilometers per hour (kPh). System unit is set to metric.
Course on Ground (COG) A user-defined message indicating the
vehicle’s heading in degrees 0 to 359. the vehicle’s course on ground
is due South (180 degrees).
eight-character text display window
red
yellow
green
cross track error Leds
warning
stoplights
