Legacy 6000
98-05053 R2
83

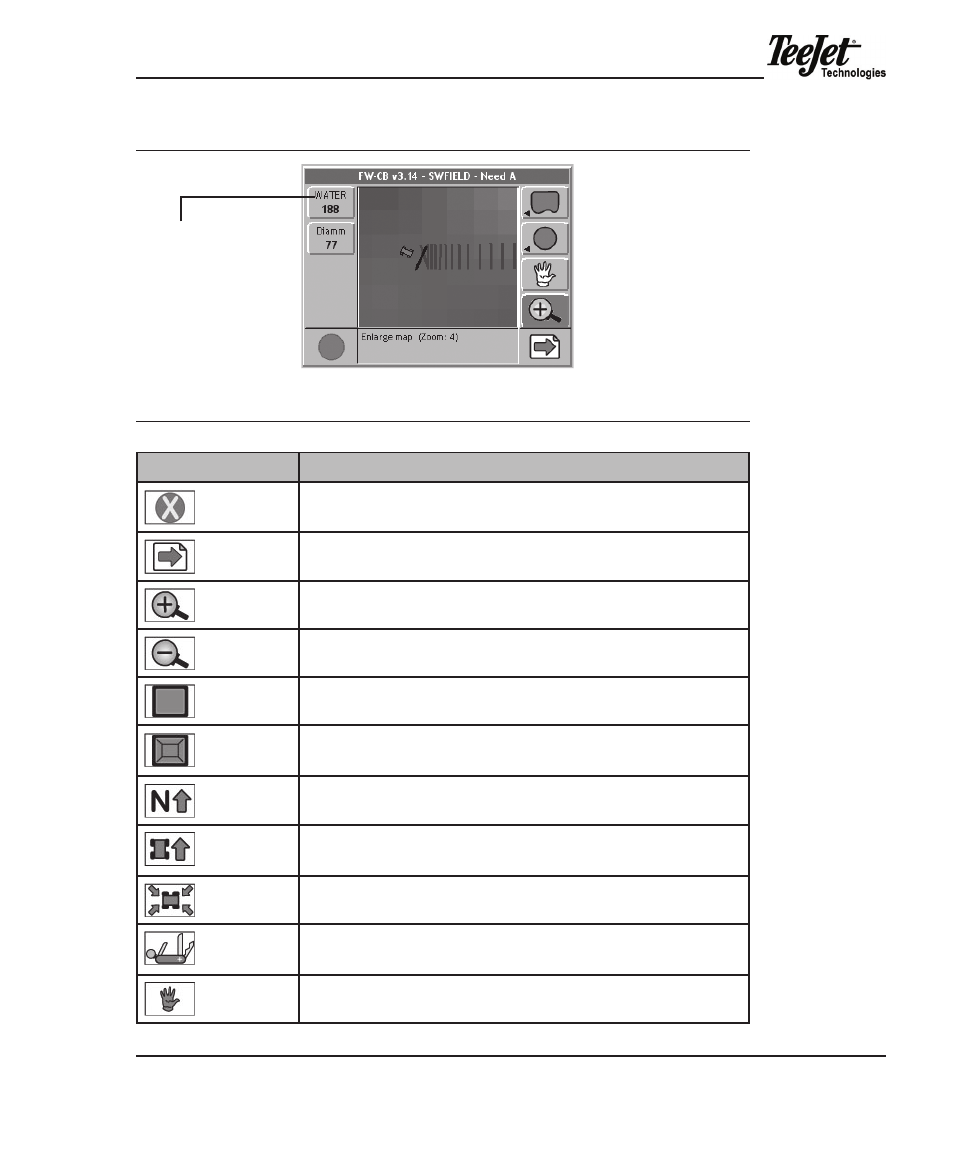

Figure 4-8: The Map Page
Table 4-2: Map Page Softkeys
softkey description
exit. exits out of the operation process and returns to the aRm Setup page.
Next Page. Switches between the map page and the Rates page.
zoom in. decreases the area displayed on the page (5 zoom levels).
zoom out. increases the area displayed on the page view (5 zoom levels).
Full Screen. the entire map page is replaced by the map view. used to view more
vehicle trajectory. Press any key to return to normal page view.
Partial Screen. once the Full Screen softkey is pressed, the softkey changes to Partial
Screen. when pressed, the display area will contain the map view and the mapping
softkey column once again.
North up View. ensures North consistently remains at the top of the page view. once
pressed, this softkey changes to the Cog View softkey.
Course on ground (Cog) View. ensures the vehicle’s heading (course) is pointing to
the top of the page view. when pressed, this softkey changes to the North up View
softkey.
Center Vehicle. Centers the vehicle on the map page.
View options. Prompts the operator to select the display of the applied area.
Solid Pattern - marks a solid path to indicate the applied area.
Boom Pattern - applies hash marks to indicate the boom width and applied area.
Pan. Allows the operator to focus in on a specified area of the map without the neces-
sity of traveling to the area to look for gaps in application.
Product Control
softkey
