Drive Installation 2-35
7000 “A” Frame
7000A-UM150F-EN-P – June 2013
Cabling Cabinet (Base Drive)
The cabling cabinet of the base drive is located in the left hand
section and shows the medium voltage area for customer cable
terminations, three phase fan power transformer, and fuse assemblies
for transformer.
Note: The cabling cabinet for the base drive has the same layout for
6-pulse and PWM rectifiers at 2400-6600 volt ratings.
Low Voltage Wireway
Fan Power
Transformer Fuses
Motor Cable Terminations
Current Transformer
Fan Power Transformer
Line Cable Terminations
(from Isolation
Transformer Secondary)
Hall Effect Sensor
Current Transformer
Hall Effect Sensor
Low Voltage Wireway
Fan Power
Transformer Fuses
Motor Cable Terminations
Current Transformer
Fan Power Transformer
Line Cable Terminations
(from Isolation
Transformer Secondary)
Hall Effect Sensor
Current Transformer
Hall Effect Sensor

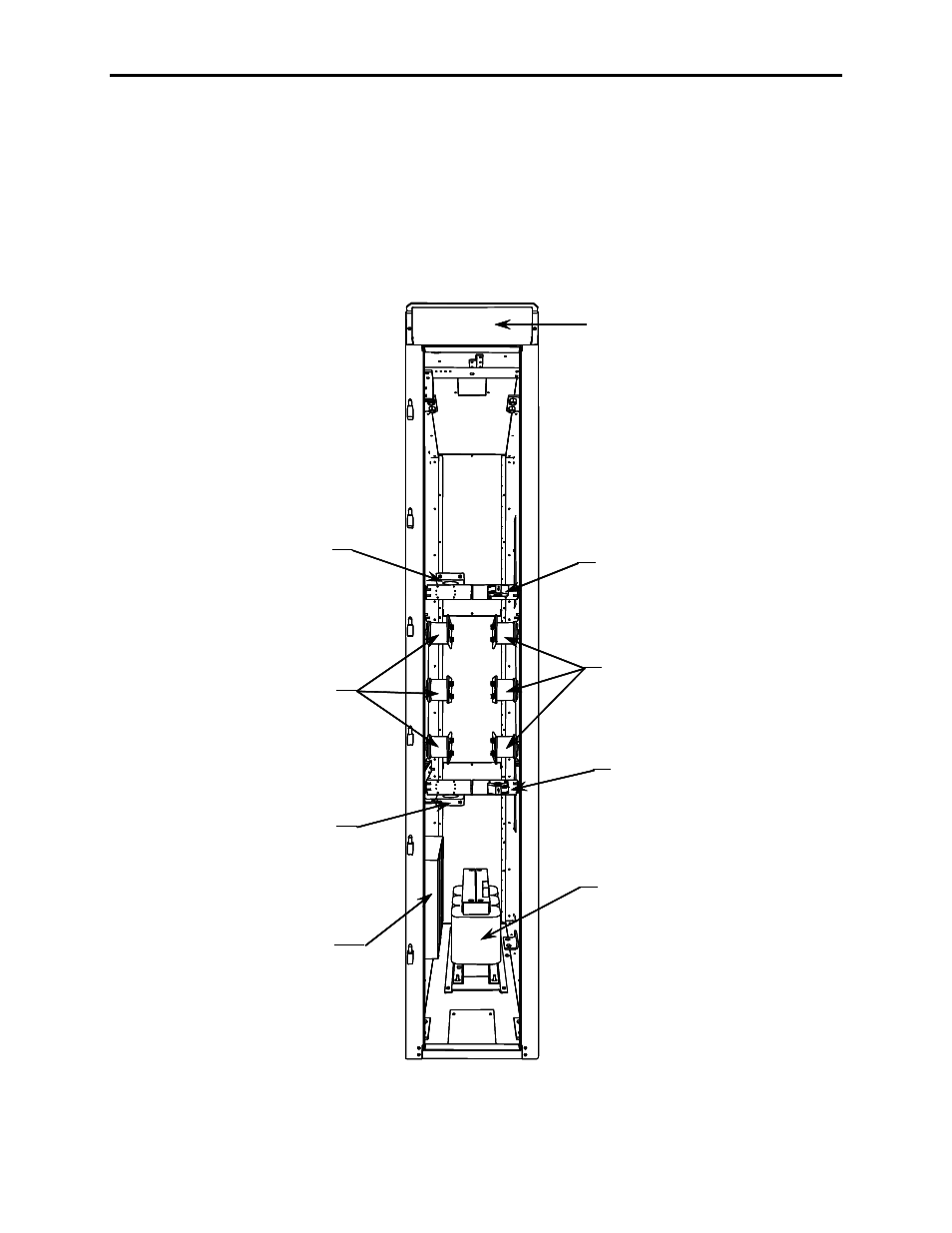

Figure 2.11 – Cabling Cabinet for Base Drive
