Overview of Drive

7000A-UM150F-EN-P – June 2013

7000 “A” Frame

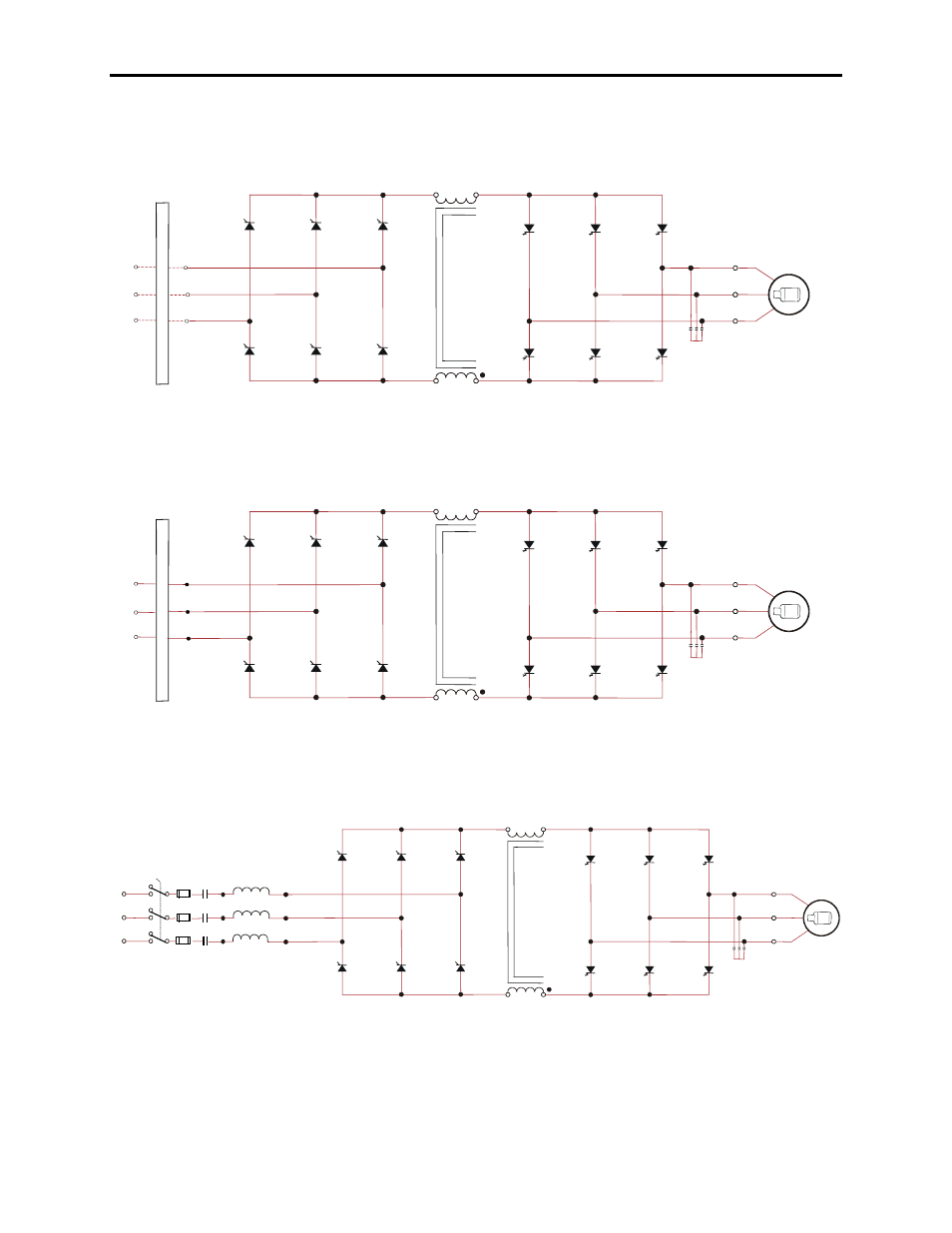

Simplified Electrical Drawings – 2400V with 6-pulse Rectifier


L-

M-

SCR’s

LINE CONVERTER

DC LINK

L+

M+

SGCT’s

MACHINE CONVERTER

U (T1)

V (T2)

W (T3)

REMOTE
ISTX

2U (X1)

2V (X2)

2W (X3)

1U

1V

1W

2400 Volt – 6-Pulse Rectifier, Base Drive with Connection for Remote Isolation Transformer



L-

M-

SCR’s

LINE CONVERTER

DC LINK

L+

M+

SGCT’s

MACHINE CONVERTER

U (T1)

V (T2)

W (T3)

INTEGRAL
ISTX

2U (X1)

2V (X2)

2W (X3)

1U

1V

1W

2400 Volt – 6-Pulse Rectifier, Base Drive with Integral Isolation Transformer



LR

L1

L2

L3

SCR’s

LINE CONVERTER

DC LINK

L+

M+

SGCT’s

MACHINE CONVERTER

U (T1)

V (T2)

W (T3)

2400 Volt – 6-Pulse Rectifier, Base Drive with Integral Line Reactor and Input Starter

(Configurations without Integral Input Starter are available)
