1-2

Overview of Drive

7000A-UM150F-EN-P – June 2013

7000 “A” Frame

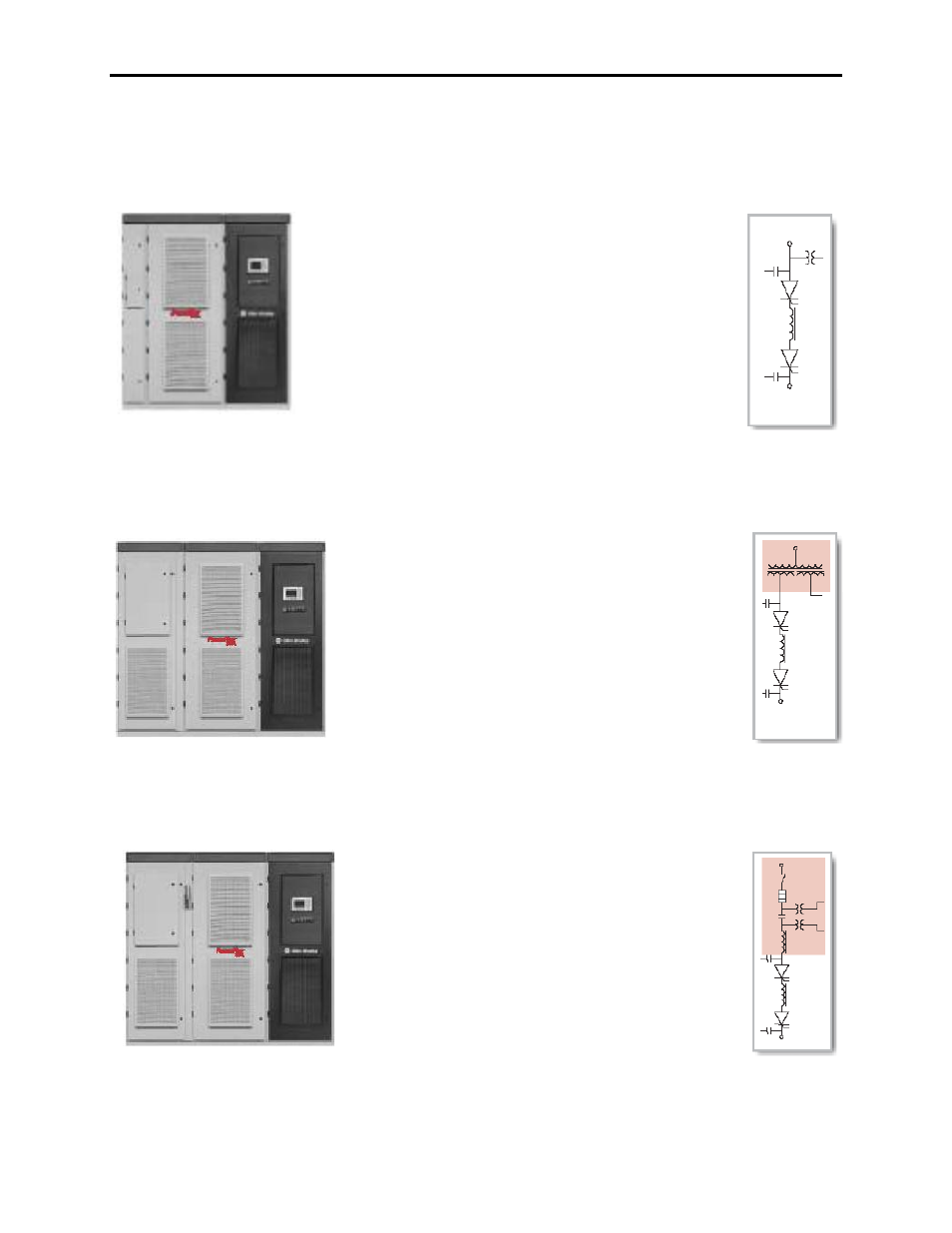

PowerFlex™ 7000 “A” Frame Drive Configurations

Configuration #1

Base Drive

 Optimum installation flexibility with

connection to indoor or outdoor isolation
transformers

 Compact packaging for smallest footprint

requirements

 New or existing motors
 3 Cables in / 3 cables out, for easy installation
 Integral cooling fan for VFD
 Low line harmonics & high power factor

(with Active Front End)

 Fan control power supplied internally

(1-Phase control circuit power supplied by
customer, 120V / 60 Hz, 110V / 50 Hz, 20 amp)















Base Drive

Configuration #2

Drive with Integral Isolation Transformer

 An integrated system solution for fewer

connections and reduced installation costs

 Small system footprint
 New or existing motors
 3 Cables in / 3 cables out for easy installation
 Integral cooling fan for VFD
 Low line harmonics & high power factor

(with Active Front End)

 Fan control power supplied internally

(1-Phase control circuit power supplied by
customer, 120V/60 Hz, 110V / 50 Hz, 20 amp)

Integral Isolation

Transformer

Configuration #3

Drive with Integral Line Reactor & Input Starter

 Elimination of isolation transformer results

in lower losses and saved space

 An integrated system solution for fewer

connections and reduced installation costs

 New or existing motors
 Small system footprint
 3 Cables in / 3 cables out, on entire system

for easy installation

 Integral cooling fan for VFD
 Low line harmonics & high power factor

(with Active Front End)

 Internally supplied fan / control power














Integral Line Reactor

and Input Starter
