Component Definition and Maintenance 6-101

7000 “A” Frame

7000A-UM150F-EN-P –June 2013

To place the drive in firmware download mode, you need to obtain a
minimum of „ADVANCED‟ access level. Once that has been obtained,
then from the main screen select UTILITY (F2) -> TRANSFER (F7) ->
SYSTEM
(F9). This will place the drive into firmware download mode.

When the system is in download mode, the status of LEDs on CIB board
labeled OBP1 (D1), and on two DCBs labeled D1, provide indication of
the firmware download process. These LEDs are bicolor and may flash at
different rates to indicate the current condition. The following illustrates
the states of LEDs:

Solid Green – the Application firmware is running. The system is not in
download mode.

Green 0.25Hz – the board is in download mode

Green 0.5Hz – the board is in download mode and is currently being
flashed with new firmware

Method

The following illustrates how to download firmware on the PF7000 Drive.
The method involves two steps, which are explained below:

Step-1: Configuring HyperTerminal Connection

-

Run HyperTerminal program


-

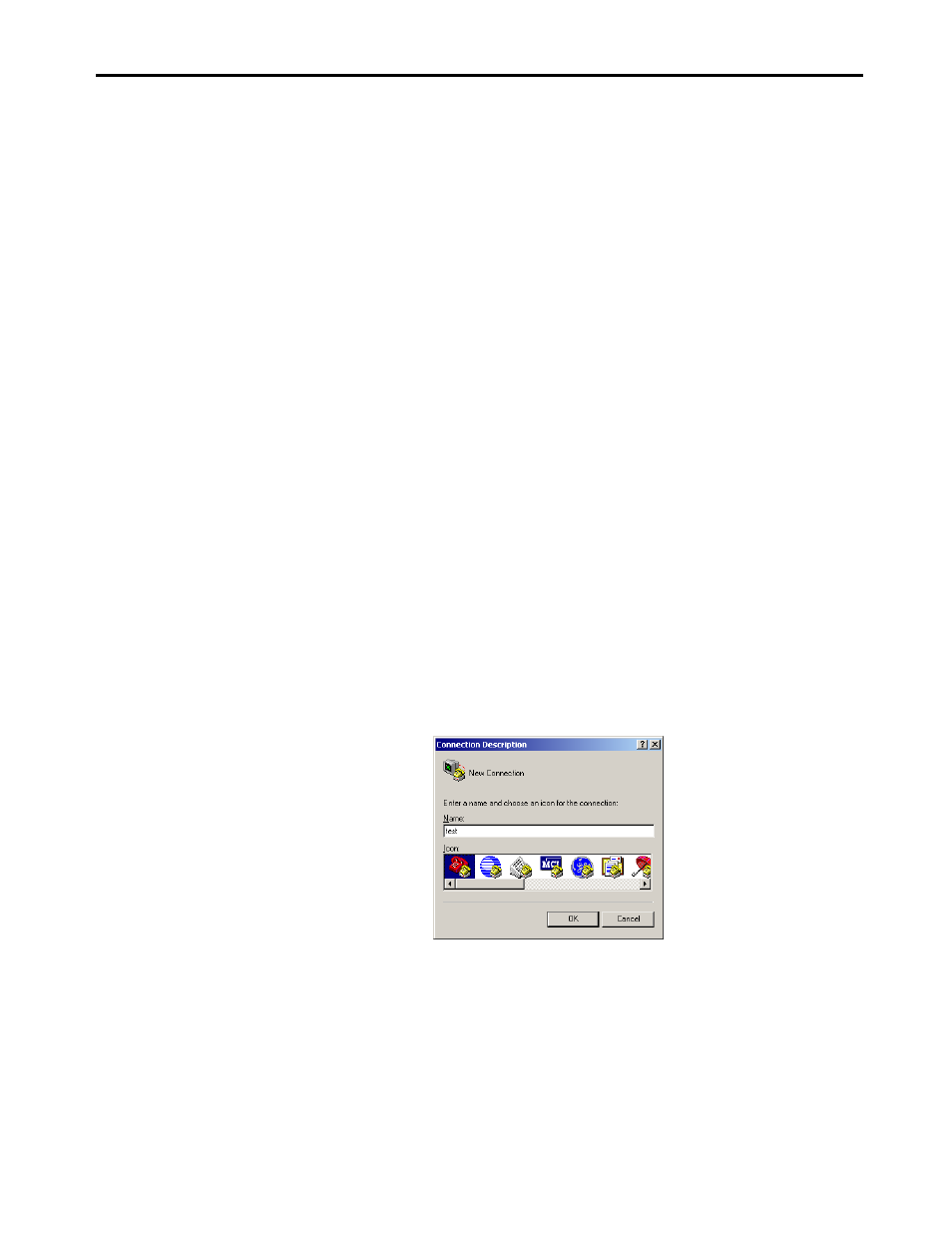

The „Connection Description‟ window will pop up. Enter
any name for new connection in the Name field as shown
below, and then click OK.
