6-120

Component Definition and Maintenance

7000A-UM150F-EN-P –June 2013

7000 “A” Frame

-

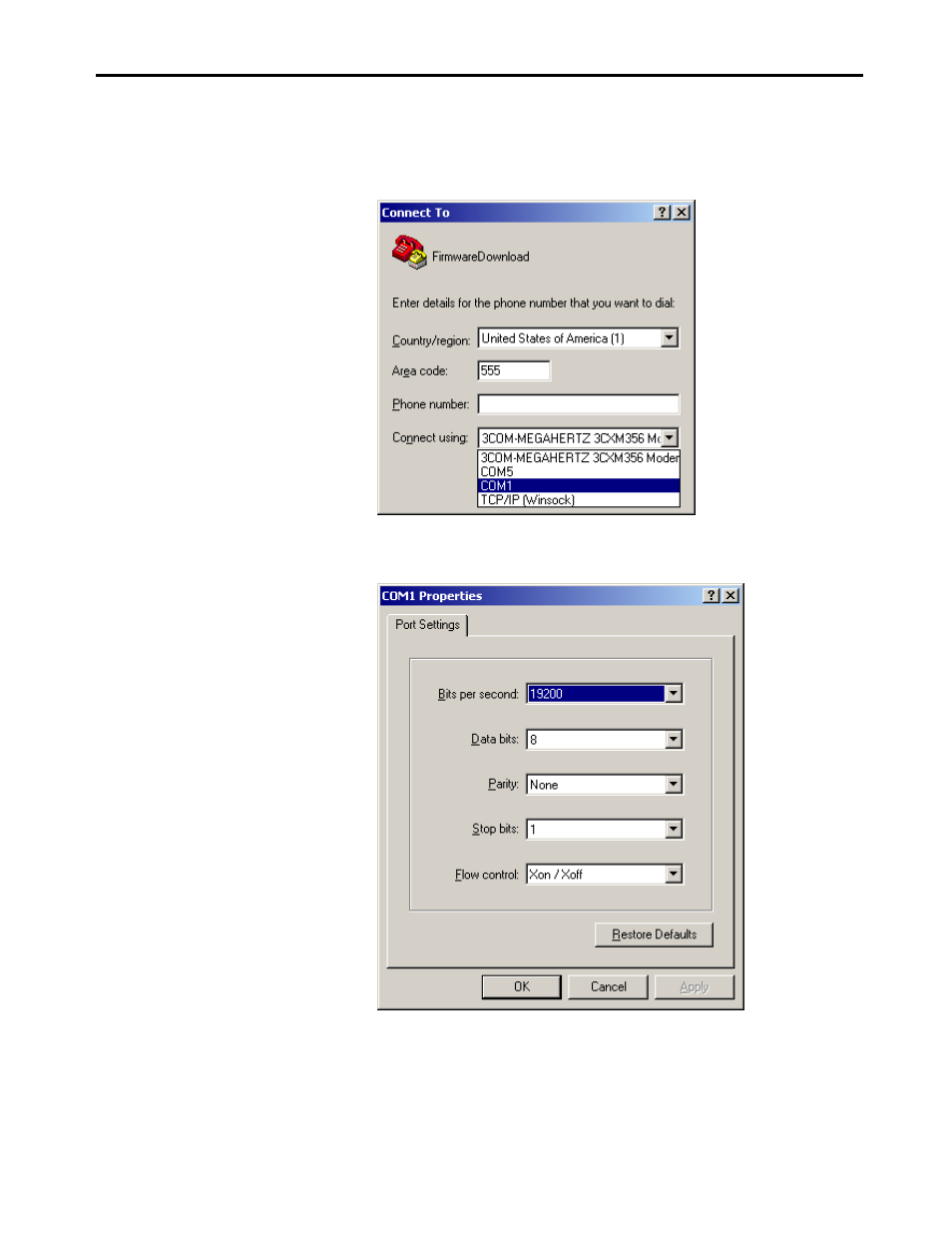

Now, the „Connect to‟ window will appear. Select COM1 from the
dropdown list next to „Connect Using‟ and then click OK, as shown
below.

-

Now, the „COM1 Properties‟ window will appear. Set the port
settings as shown below and then click OK.


-

Now, close the HyperTerminal program. Following message box will
appear.
