6-6

Component Definition and Maintenance

7000A-UM150F-EN-P –June 2013

7000 “A” Frame

1. Ensure there is no power to the equipment.

A T T E N T I O N

A T T E N T I O N

To prevent electrical shock, ensure the main
power has been disconnected before working
on the current transformer. Verify that all
circuits are voltage free using a hot stick or
appropriate voltage-measuring device. Failure
to do so may result in injury or death.

2. Note the location of all wires and the orientation of the CT. For quick

reference when checking the orientation of the CT, look for the white dot.

I M P O R T A N T

I M P O R T A N T

The CT and wires must be in the proper
orientation. Note the position before disassembly.

3. Disconnect the wires.

4. The line cable must be disassembled to allow removal of the CT. Remove

the hardware to allow the cable to slide out.

5. Remove the two screws located in the base of the CT and remove.

6. Replace the CT, ensuring the proper orientation. Fasten the CT securely

with the two screws in the base.

7. Reconnect the ring lugs.

8. Slide the line cable back into place and secure the hardware.

Current Transformer (CT)

Current Transformer (CT)

Current Transformers (CT)

Current Transformer (CT)

See Detail A

Detail B

Detail A

Current Transformer (CT)
See Detail B

Current Transformer (CT)

Current Transformer (CT)

Current Transformers (CT)

Current Transformer (CT)

See Detail A

Detail B

Detail A

Current Transformer (CT)
See Detail B

Current Transformer (CT)

See Detail A

Detail B

Detail B

Detail A

Detail A

Current Transformer (CT)
See Detail B

Isolation Transformer Cabinet

Cabling Cabinet

Line Reactor/Starter Cabinet

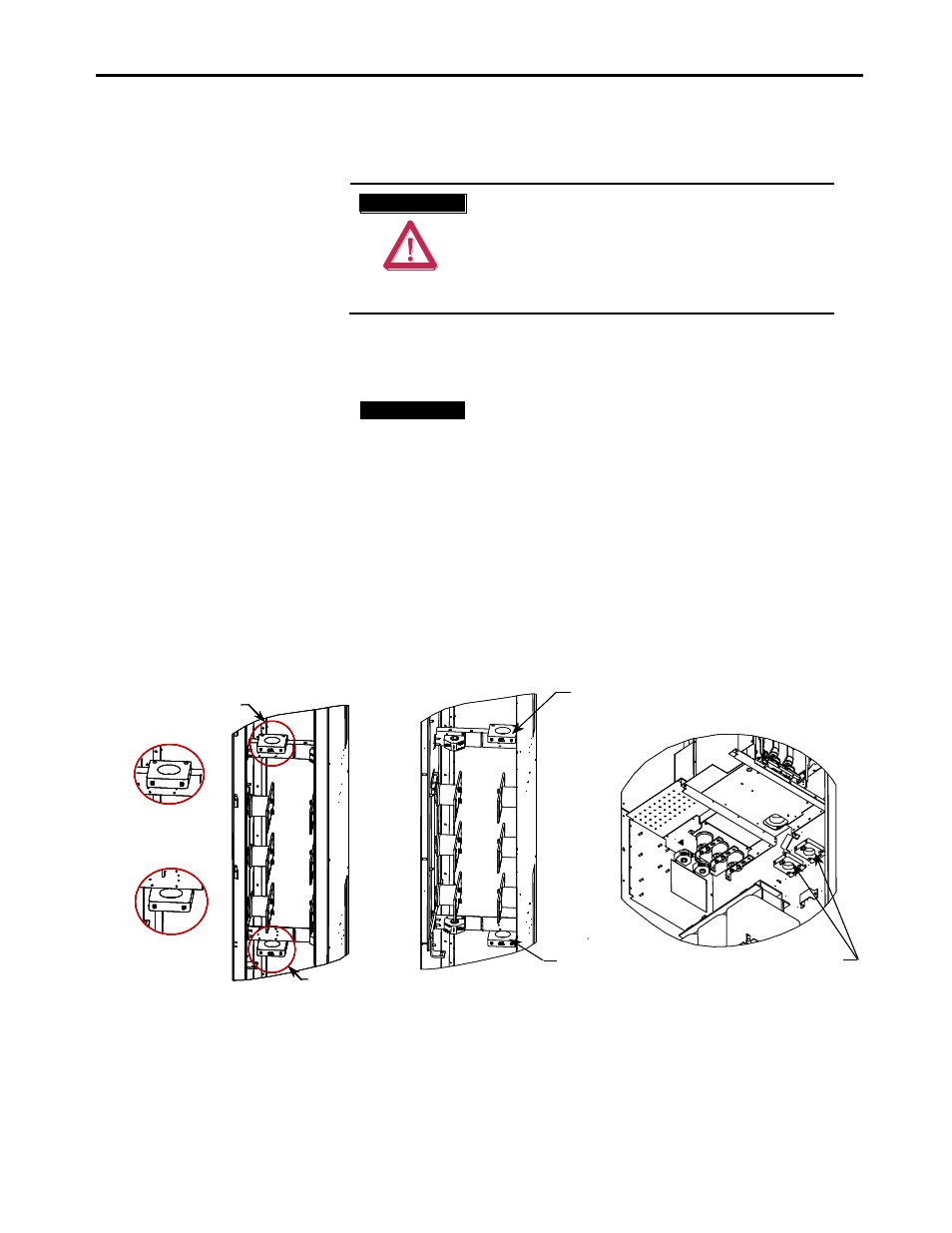

Figure 6.6 – Replacement of Current Transformer

Current Transformer

Replacement
