Commissioning 4-71

7000 “A” Frame

7000A-UM150F-EN-P – June 2013


6. Measure the average width in degrees of the commutation notch

nearest the peak of the VAB1-OUT waveform as seen in the

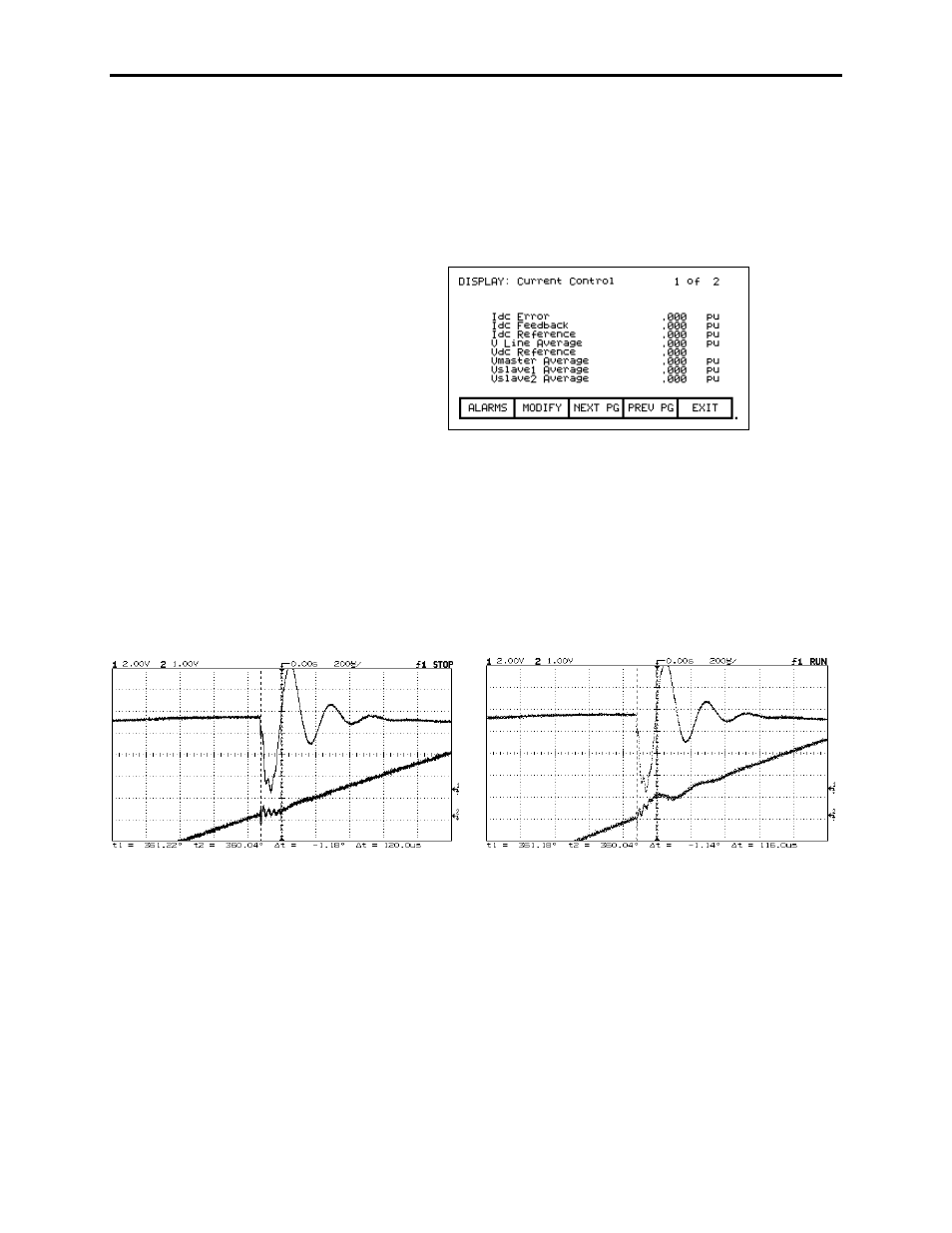

following figures.


7. Record the values of the parameters "V line average", and "Idc

reference” in “Current control”


8. Calculate the commutation inductance using the following

formula:

L commutation = V line x sin (notch width) / Idc reference


9. Set parameter "L commutation" to the calculated value. If there

was visible distortion in the reconstructed voltage FAB1, the
distortion should decrease. If the distortion increases, it is
possible that the polarity of the line current feedback is
backwards.

COMMUTATION INDUCTANCE TUNED CORRECTLY

COMMUTATION INDUCTANCE INCORRECTLY TUNED


10. Set parameter "Idc command test" to 0.800 pu. The dc current

will increase and the commutation notches will become much
larger.


11. Repeat steps 6 to 9. The higher current will produce a more

accurate measurement of the commutation inductance.
