Rockwell Automation 7000A PowerFlex Medium Voltage Drive (A-Frame) - Classic Control User Manual
Page 426
6-122
Component Definition and Maintenance
7000A-UM150F-EN-P –June 2013
7000 “A” Frame
-

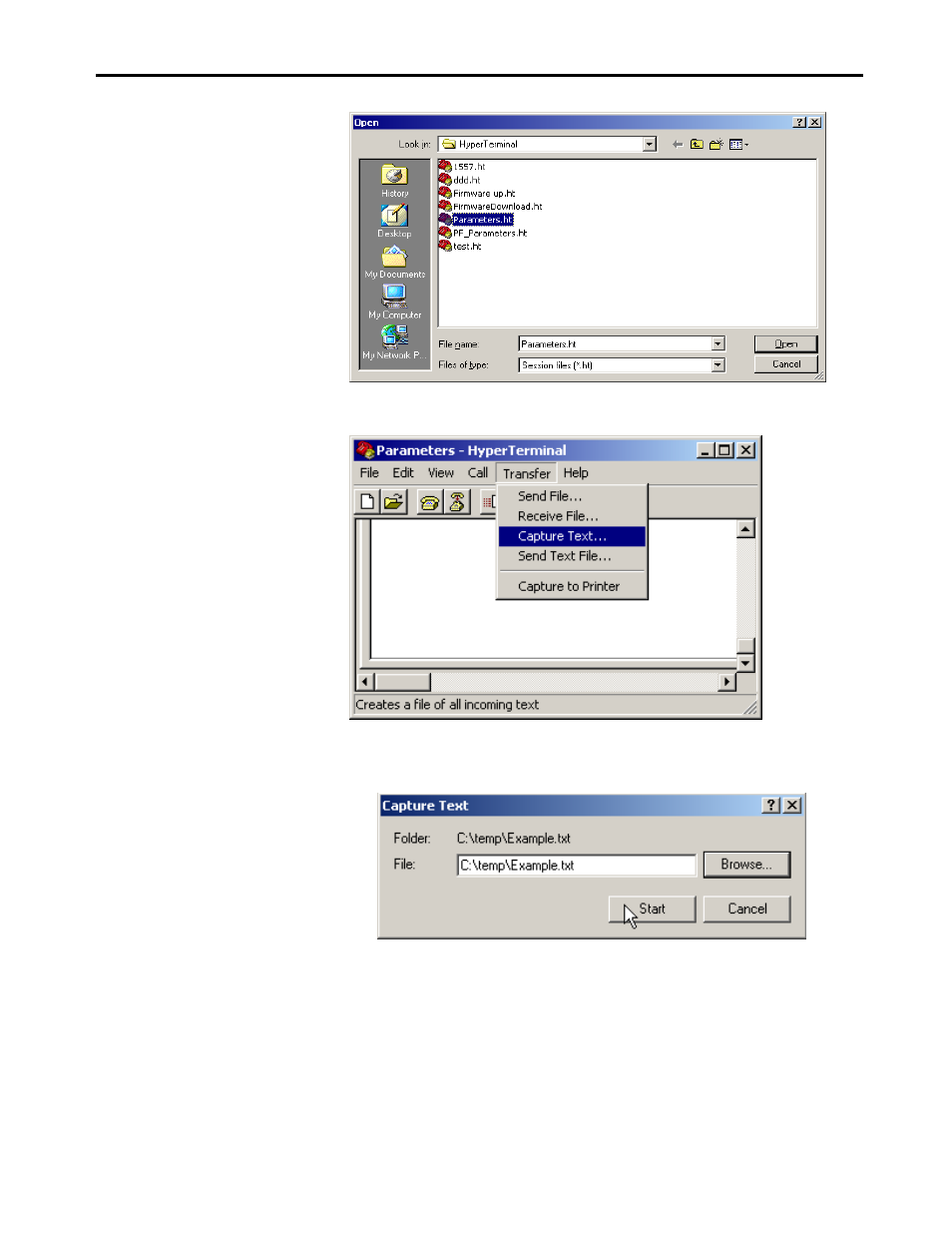

From the Transfer menu, select Capture Text… as shown below.
-
The Capture Text dialog box will appear. Click on Browse button
and search the file Example.txt that you created in Step-1 above.
-
Now click Start button.
