Rockwell Automation 7000A PowerFlex Medium Voltage Drive (A-Frame) - Classic Control User Manual
Page 51
Drive Installation 2-11
7000 “A” Frame
7000A-UM150F-EN-P – June 2013
Installation of Integral Transformer Cooling Fan
1. Remove the protective plate covering the fan opening on the top
of Isolation Transformer cabinet and discard.
2. Locate the cooling fan on top of the cabinet. Position it over the
opening and align the mounting holes and wire harness
connections.
3. Affix the fan to the drive top plate with the M6 thread forming
screws provided.
4. Connect the fan wire harness to fan.
Assembled Exhaust Hood
M6 Screw
(Qty = 12)
Assembled Exhaust Hood
M6 Screw
(Qty = 12)

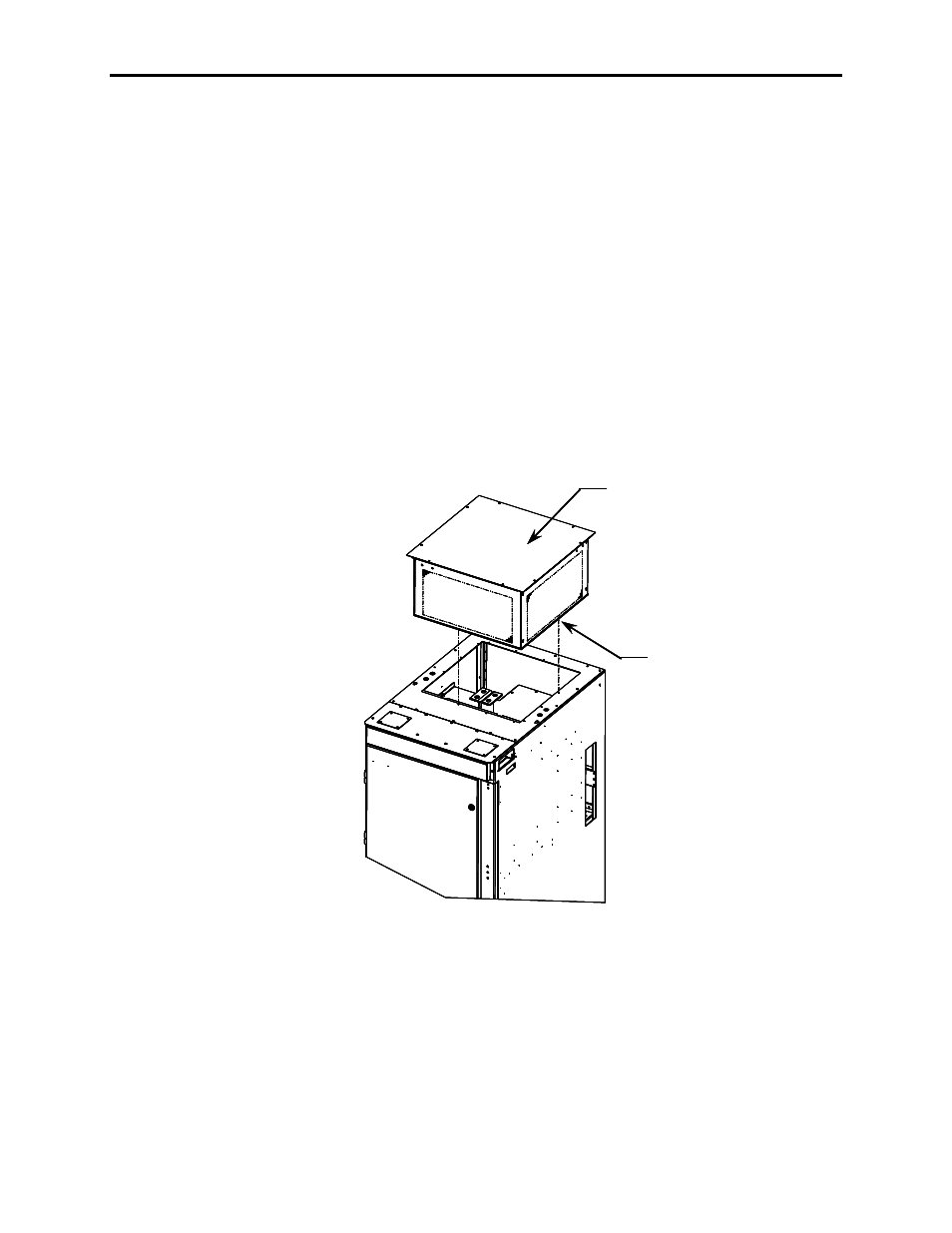

Figure 2.6 – Fan Installation for Integral Isolation Transformer
