6-114

Component Definition and Maintenance

7000A-UM150F-EN-P –June 2013

7000 “A” Frame

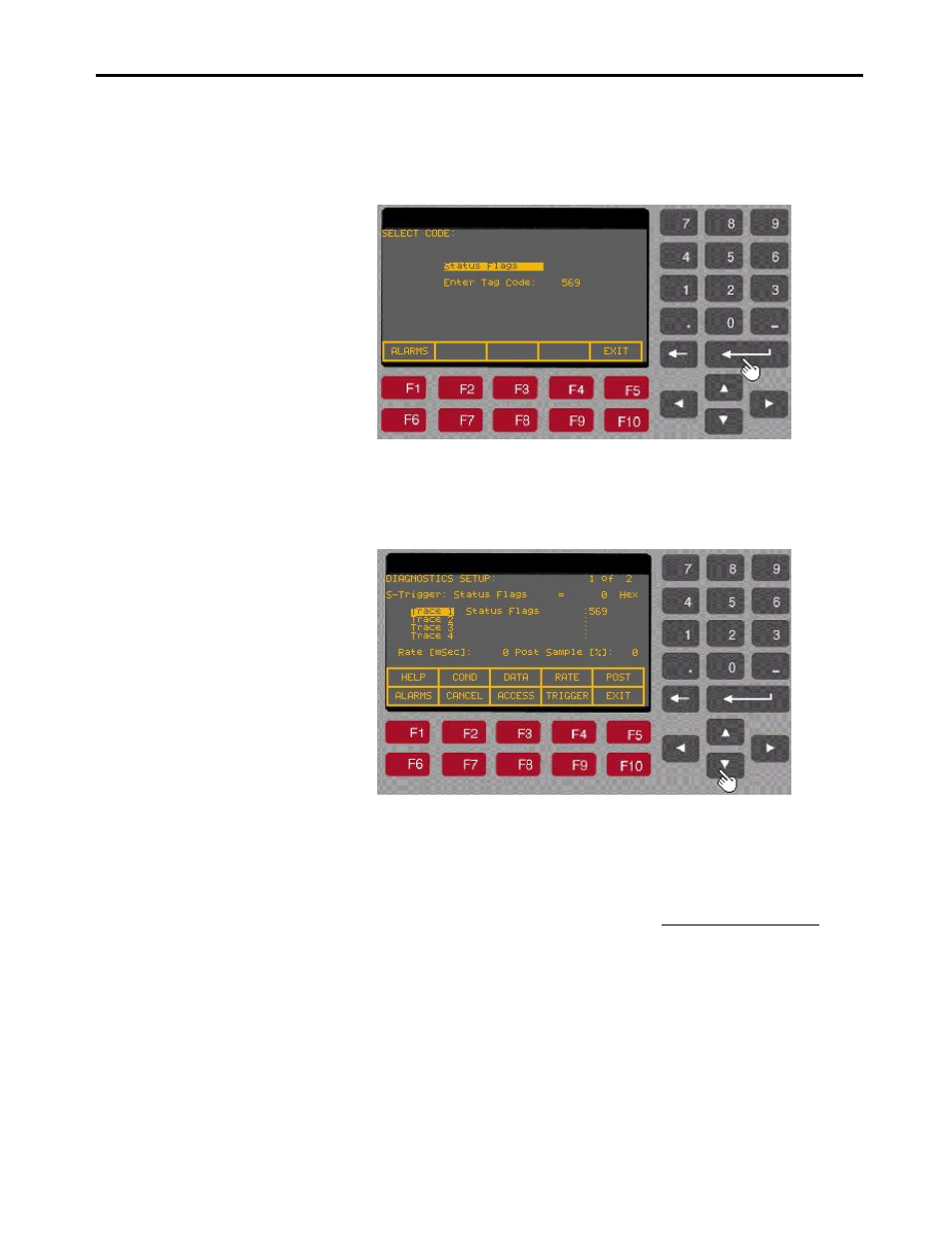

7. Enter the parameter linear number (in our example we have entered

569) and then press Enter key. Once you press the Enter key, the
parameter description will appears on the screen as shown in the
picture below.

8. Press Enter key again. The display will change to the „Diagnostics

Setup‟ screen and the desired parameter gets assigned to Trace 1.
Now, press the down arrow key to move the cursor to Trace 2 and
repeat steps 3 – 8 above to assign a parameter to Trace 2.

9. Repeat above steps until you have assigned the desired parameters to

all the traces from Trace1 to Trace8.


10. Now press F9 [TRIGGER] key. The first letter in the second line on

the screen will toggle between C and S. The letter C stands for
Continuous and S stands for Single shot. Select S for single shot.
