Component Definition and Maintenance 6-123

7000 “A” Frame

7000A-UM150F-EN-P –June 2013

-

HyperTerminal will now act as a dummy printer and is waiting for the
information to be transmitted from the drive to the laptop. From the

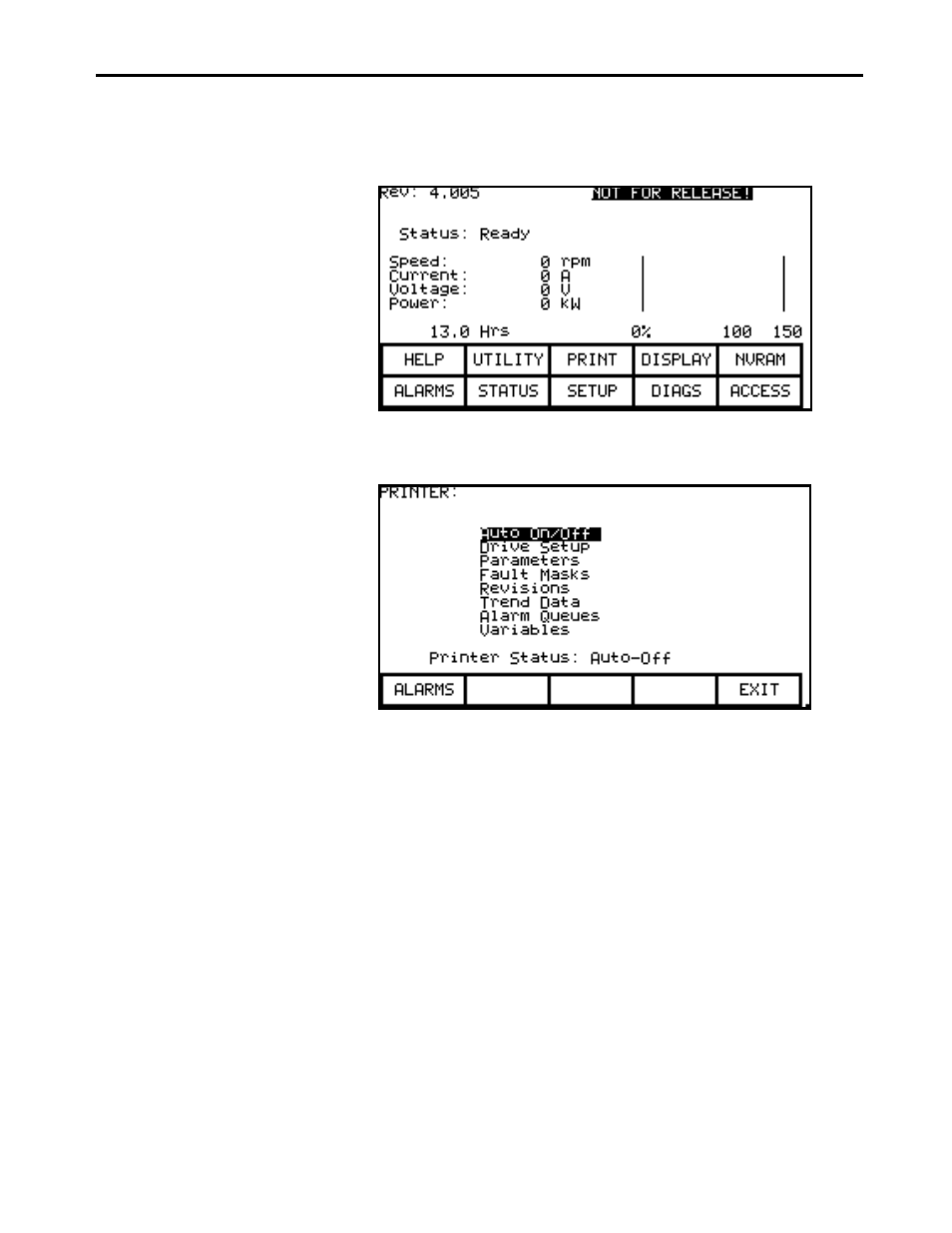

drive Terminal, hit F3 (PRINT) at the main screen as shown below:

-

The Terminal screen will change and display Printer options, as
shown below.


-

Now, using Up or Down (

) arrow keys on the Terminal keypad

select the item you want to print (ie., upload the info into laptop) and
press Enter key (

). The required information will be transferred to

your laptop and stored in the file C:\temp\Example.txt. Repeat this
step to upload other data into your laptop.


Note: The most desirable selections are:

Drive Setup: for complete setup, which include Parameters, Fault Masks

and Revisions

Trend Data: for analyzing the drive trending

Variables: snapshot of real-time data while the drive running.


It is important to note that while the data is being transferred, the Printer
Status will show Transfer in Process. Once the data transfer is complete,
the Printer Status changes to either Auto-Off or Auto-On.
