Component Definition and Maintenance

7000A-UM150F-EN-P –June 2013

7000 “A” Frame

Test power connection

Fiber optic transmitter

and receiver

Thermal sensing

connection

TP9

TP8

TP7

TP6

TP3

TP4

TP5

Gate and cathode
thyristor connection

LED

Snubber connection

TP1

TP2

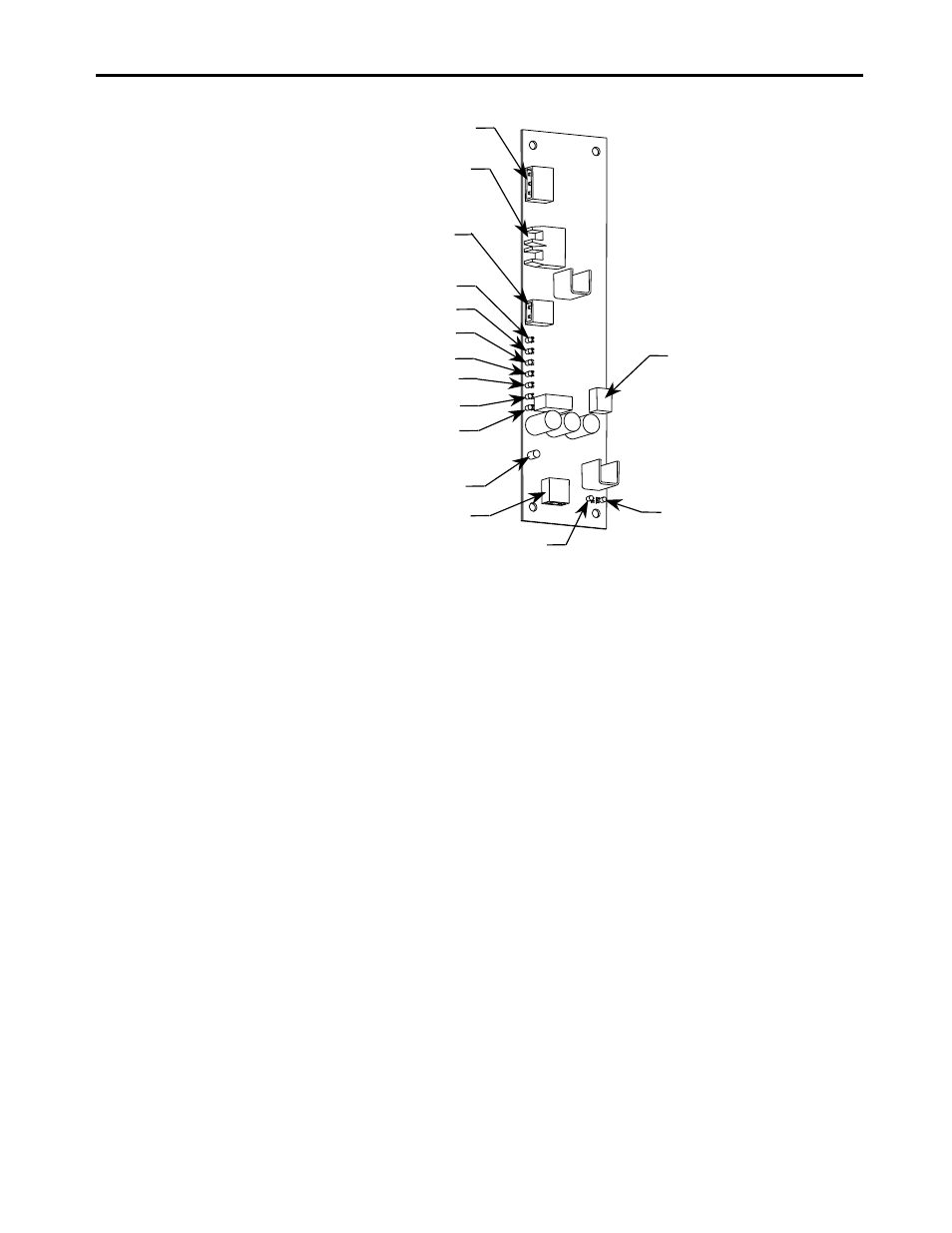

Figure 6.34 – Self-Powered Gate Driver Board


Terminal/connections description


TB1-1 – Connection to SCR snubber circuit used to extract energy from

the snubber for SPGDB operation

TB1-2 – Connection to SCR sensing resistor which indicates

conduction status of SCR being operated

TB2-1 – Positive 20V power supply connection to temperature sensor

board. Provides power to temperature sensor board.

TB2-2 – Common connection of positive 20V power supply to

temperature sensor board

TB3-1 – Positive 15V power supply connection for test power used

when commissioning drive or testing SPGDB

TB3-2 – Provides artificial sense voltage signal to allow SPGDB to gate

the SCR when in test mode. When the appropriate test power
cable is used, P/N 81001-262-51, this input is shorted to TB3-1
to obtain the sense voltage.

TB3-3 – Common connection of positive 15V power supply used for

test power

TB4-2 – Cathode connection to SCR being controlled

TB4-1 – Gate connection to SCR being controlled

OP1

Blue fiber optic cable receptacle – Firing pulse command from
the processor

OT1

Grey fiber optic cable receptacle – Diagnostic status of the
SCR
