Overview of Drive 1-19

7000 “A” Frame

7000A-UM150F-EN-P – June 2013

Control Hardware

The control hardware includes identical drive control boards for
machine and line side complete with up to three fiber optic interface
boards (depending on the voltage and number of switching devices),
signal conditioning boards for machine and line side, customer
interface board and external I/O board. The common drive control
boards are used for the rectifier and inverter, induction or synchronous
drive control, and the two rectifier types (6-pulse, or PWM
Rectifier).


The drive control boards feature a floating point digital signal
processor and field programmable gate arrays for advanced functions
such as gating and diagnostics, fault handling, and drive
synchronization control.


Drive

Control

Board

MACHINE

Drive

Control

Board

LINE

Signal

Conditioning

Board

LINE

Signal

Conditioning

Board

MACHINE

Customer

Interface

Board

External I/O

Board

Fiber
Optic
Board

Fiber
Optic
Board

Fiber
Optic
Board

Fiber
Optic
Board

Fiber
Optic
Board

Fiber
Optic
Board

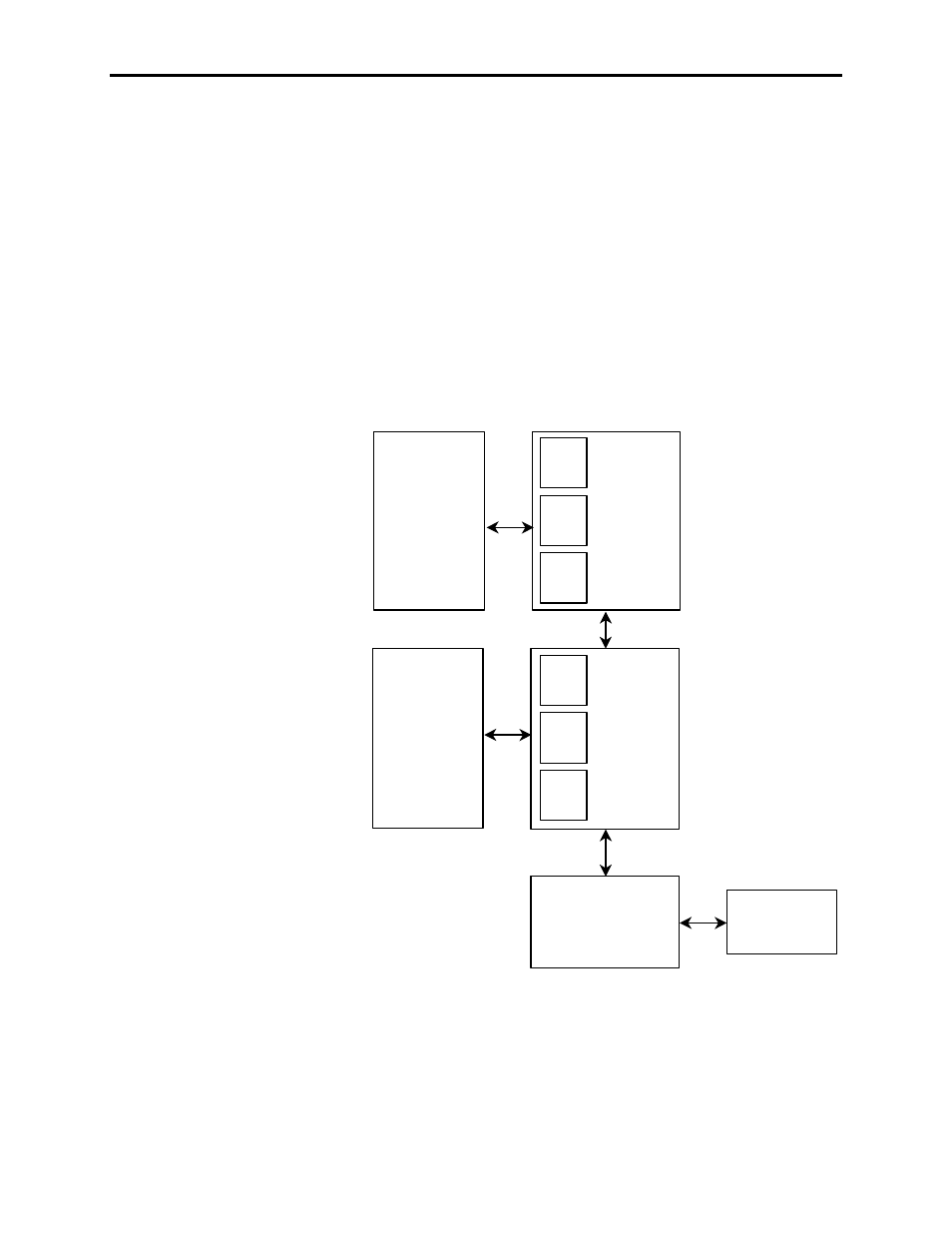

Figure 1.8 – Control Hardware Layout

for PowerFlex 7000 “A” Frame
