Component Definition and Maintenance 6-111
7000 “A” Frame
7000A-UM150F-EN-P –June 2013
Setting up the Trend
The Access level must be Basic or higher level before programming the
drive‟s trending feature. To change Access level to Basic, press F10
[Access] key on the main screen. The display will change to „Access‟
screen. Select Basic by pressing down-arrow key and then press Enter
key. The Access level will change to Basic. Press F10 [EXIT} key again
to exit to the main screen.
Note: The parameter assigned to Trace1 is used for trigger purpose. The
Condition and Data defined in steps 11 and 12 must be satisfied for the
trend to trigger. In most cases the parameter 569 “Status Flags”is
assigned to Trace1 for trigger purpose. A value of 18 Hex for Data (Step-
12 below) is used to capture the trend when the drive detects either an
Alarm or a Fault condition. If you are interested in the fault condition only
then set Data as 8 Hex. If you are interested in Alarm condition only then
set Data as 10 Hex.
You can reset the Alarm or Fault in the drive, but don‟t Re-Arm the trend
until you print (upload) the trend data into your laptop. Print the Alarm
Queue as well, so that you know which alarm or fault condition was
detected by the drive.

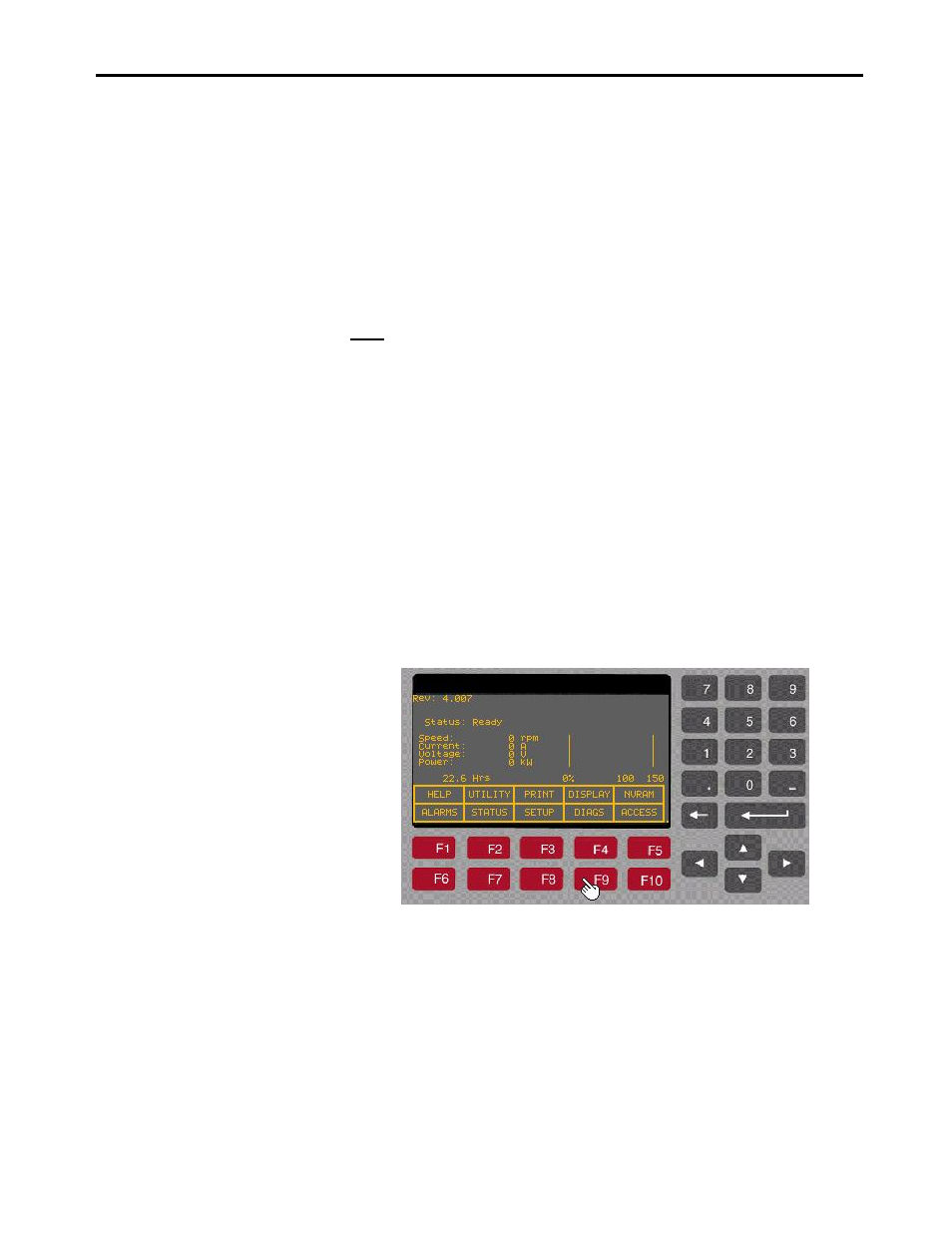

1. Press F9 [DIAGS] key on the main screen to display „Diagnostics‟
screen as shown in the picture below.
