Overview of Drive

7000A-UM150F-EN-P – June 2013

7000 “A” Frame






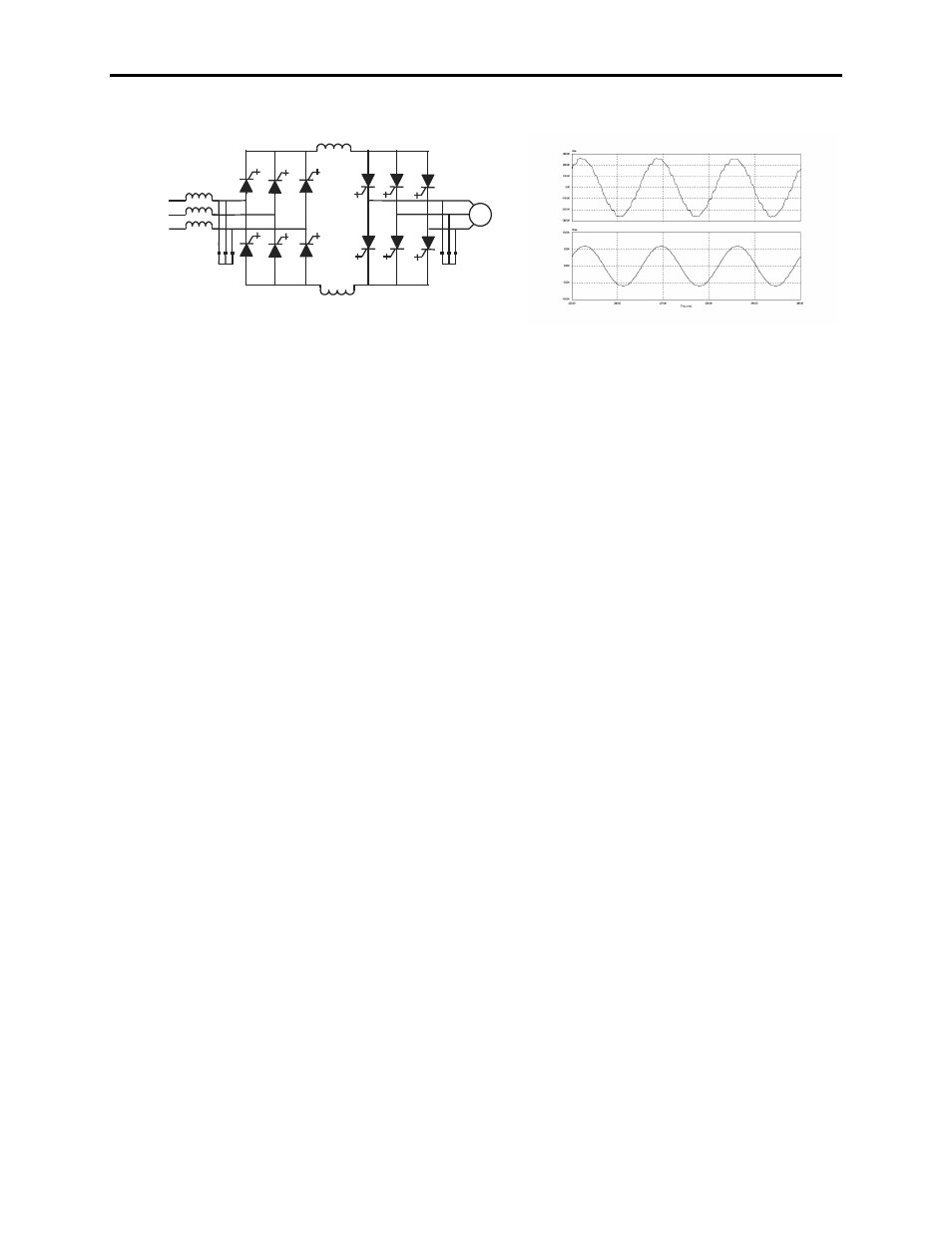

Figure 1.4 – PWM rectifier (active front-end) and its input current/voltage waveforms

a) Line current

b) Line-to-line voltage at PCC


The PWM rectifier can be used in conjunction with a rectifier duty
isolation transformer or with an AC line reactor (as shown in
Figure 1.4).


Isolation transformers are available:

1) Integral to the Drive

2) Remote indoor dry type, or

3) Outdoor oil-filled type

This allows for maximum flexibility in dealing with floor space,
installation cost and control room air conditioner loading.

a)



b)
