Rockwell Automation 7000A PowerFlex Medium Voltage Drive (A-Frame) - Classic Control User Manual
Page 407
Component Definition and Maintenance 6-103
7000 “A” Frame
7000A-UM150F-EN-P –June 2013
-

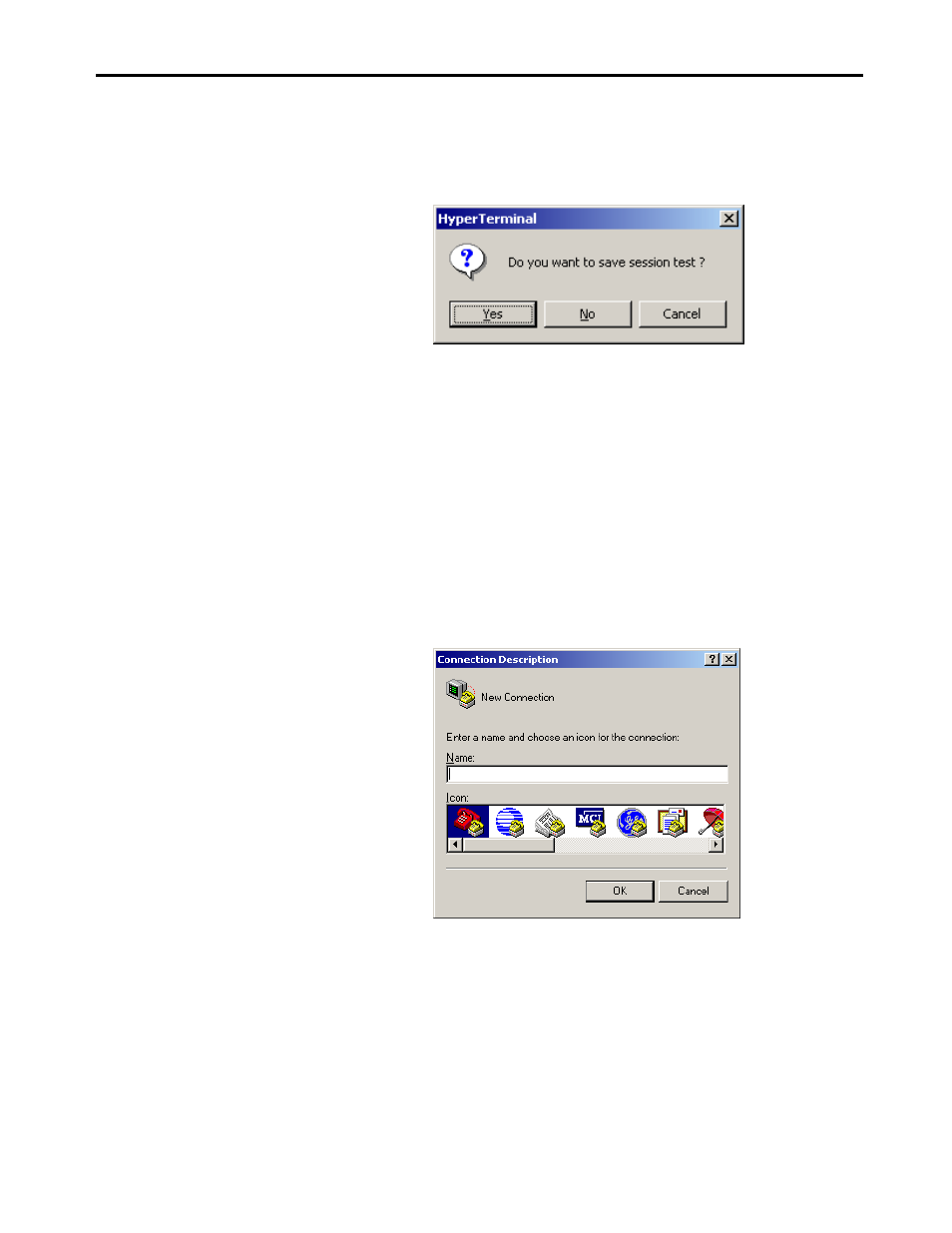

You will be prompted to save the connection that you just
created. Click Yes. This will close the HyperTerminal
program.
The first step is complete. Now, you are ready to download the firmware
into the drive. For this you need to follow the steps as outlined below.
Step-2:
Downloading the Firmware
-
Connect the null-modem cable between your laptop‟s
serial port and the serial port „J8‟ on the CIB.
-
Place the drive in download mode, if it was not already in
download mode. Refer to “Download Mode” described
above.
-
Restart HyperTerminal program. When you see the
„Connection Description‟ window, click Cancel.
