Rockwell Automation 57C570 AutoMax PC3000 User Manual User Manual
Page 86

5Ć8
5.5.3
Configuring the AutoMax PC3000 Serial Card for
Use in a PC Chassis
When installing the PC3000 Serial card in a PC chassis, you must
disable jumpers E3 and E4 on the AutoMax PC3000 Serial card. See
Figure 5.3.
1 2
3
1 2
3
E3
E3
E4
E4
123
123
20821ĆM
1
2 3
1 2
3
Set jumpers as shown when
you are installing the
Serial card in a PC chassis.
Set jumpers as shown when
you are installing the
Serial card in a PC chassis.
Set jumpers as shown when
you are installing the Serial
card in the AutoMax PC3000
Packaged Version.
Set jumpers as shown when
you are installing the Serial
card in the AutoMax PC3000
Packaged Version.

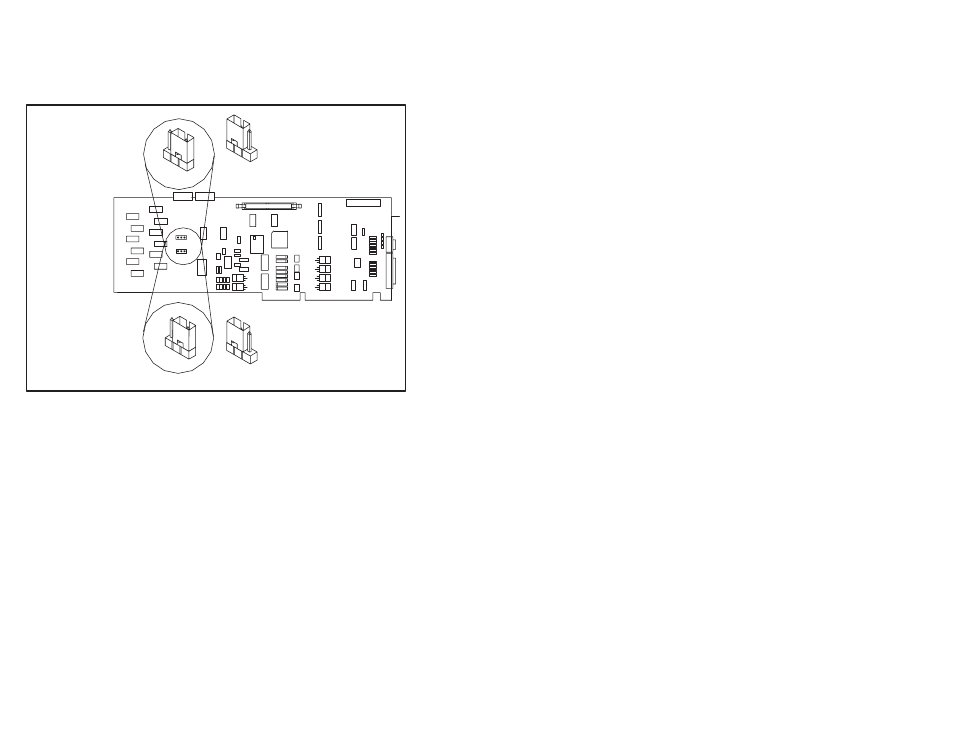

Figure 5.3 Ć Setting Jumpers E3 and E4
5.5.4
Installing and Connecting the Card
To install the AutoMax PC3000 Serial card, follow these steps:
Step 1.
Remove the card from its shipping container and from its
antiĆstatic bag. Be careful not to touch the components or
the surface.
Step 2.
Make sure the jumpers are set according to your needs.
See sections 5.5.2 and 5.5.3 for more information.
Step 3.
Insert the card into the computer. While firmly pressing
down on the card, use a frontĆtoĆback rocking motion to
seat the card the expansion socket. Make sure the card's
goldĆstriped, bottom edge sits firmly in the expansion slot
socket and that the bracket of the board is in the
corresponding groove.
Step 4.
Connect the ribbon cable to the AutoMax PC3000
Processor card's ribbonĆcable connector. Make sure the
cable is seated firmly in the connector. See figure 5.4.
