Display errorcodes
for the PC3000 CPU.
SERIAL PORT A, 9ĆPIN
RSĆ232 OR
RSĆ422 PORT
SERIAL PORT B, 25ĆPIN
RSĆ232 PORT (Default
programming
device connection.)
20846ĆM

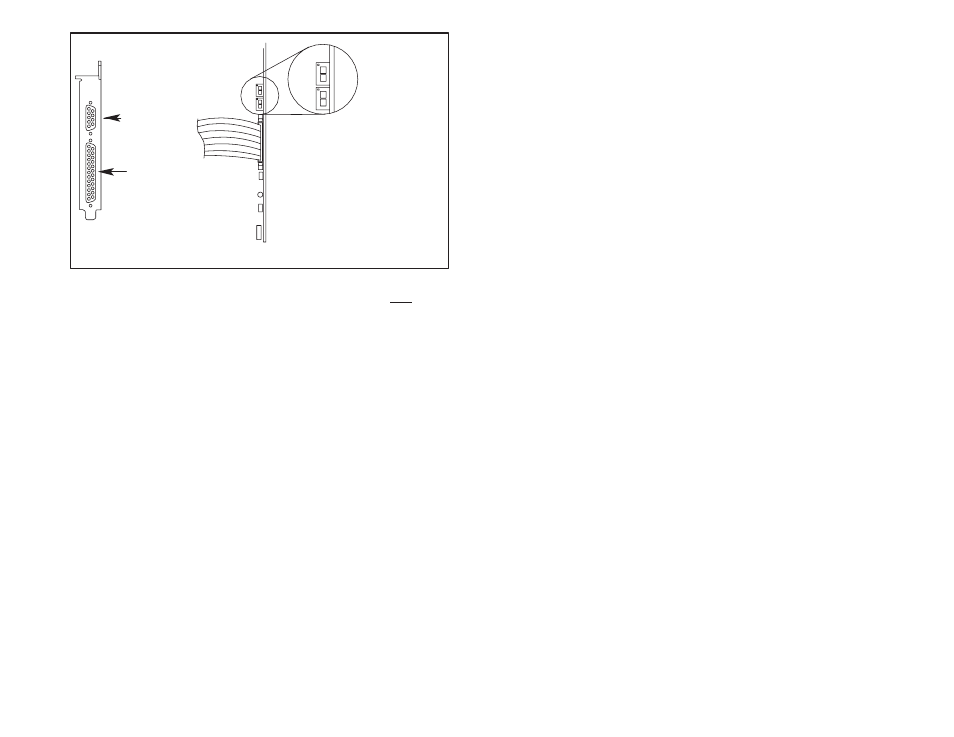

Figure 1.4 Ć The AutoMax PC3000 Serial Card
The Serial card ships as part of the AutoMax PC3000 Packaged
Version, but the card is optional when installing it in a PC chassis.
Installing the Serial card in the same PC as the PC3000 Processor
card provides you with additional serial connectivity for
programming devices, modems, and data display devices, etc.
The AutoMax PC3000 Serial card occupies one full ISA slot, and
interfaces with the AutoMax Processor card via a ribbon cable. The
ISA bus only provides power to the Serial card.
1.4
About the AutoMax PC3000 Packaged
Version
The AutoMax PC3000 Packaged Version is wellĆsuited for a
plantĆfloor environment. It includes a panelĆmount, industrialĆgrade
enclosure housing a preĆinstalled AutoMax PC3000 Processor card
and Serial card. The enclosure is equipped with its own fan, fan
filter, and power supply. Incoming power connection terminals are
mounted onto the enclosure. You connect a programming device for
the Packaged Version via Port B on the PC3000 Serial card.
Figure 1.5 illustrates the AutoMax PC3000 Packaged Version.
