Page 24

1Ć4
JP5
20820ĆM
MODULE OK (green)
DCSĆNET NETWORK CONNECTION
REMOTE I/O LINK
COMMUNICATION (green)
AĆB REMOTE I/O LINK
CONNECTION
SYSTEM FAULT (red)
DCSĆNET NETWORK
COMMUNICATION (green)
JP2
Configures Port B on the AutoMax PC3000
Serial Board as a dedicated programming
device connection or free RSĆ232 port.
Connect the ribbon cable
from the AutoMax PC3000
Serial card.
DCSĆNET NETWORK
CONNECTION
AĆB REMOTE
I/O LINK
CONNECTION
LITHIUM
BATTERY
Lets you remove the
operating system.
20844ĆM
Lets you configure the
PC3000 as a passiveĆ
listening drop on the
DCSĆNET network.
JP4

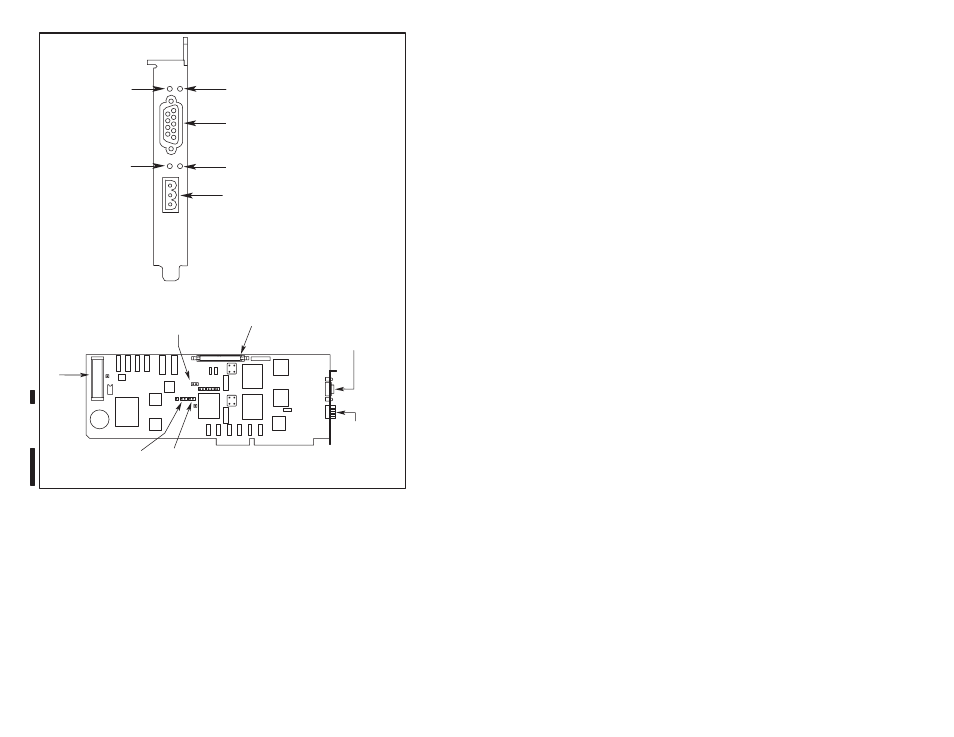

Figure 1.2 Ć AutoMax PC3000 Processor Card
By adding the AutoMax PC3000 Processor card to an existing
personal computer chassis, you can create a lowerĆcost drive
controller that has the flexibility to talk directly with humanĆmachine
interfaces and operator interfaces over the computer chassis' ISA
bus. The PC's processor remains free to run humanĆmachine
interfaces, operator interfaces, or other software without adversely
affecting system performance.
The PC3000 Processor card occupies two full ISA slots of a
personal computer, which it uses for power and ISA bus
communication. It also ships as a component of the PC3000
Packaged Version.
