5Ć3
JP2
JP5
20819ĆM
When the jumper is off, the
ISA Bus is used as the programming
device connection. (Default setting for
PC3000 Processor cards shipped
individually.)
When the jumper is ON, Serial Port B
on the AutoMax PC3000 Serial Card
is used as the programming device
connection (Default setting for the
PC3000 Packaged Version.)
JP2
JP4

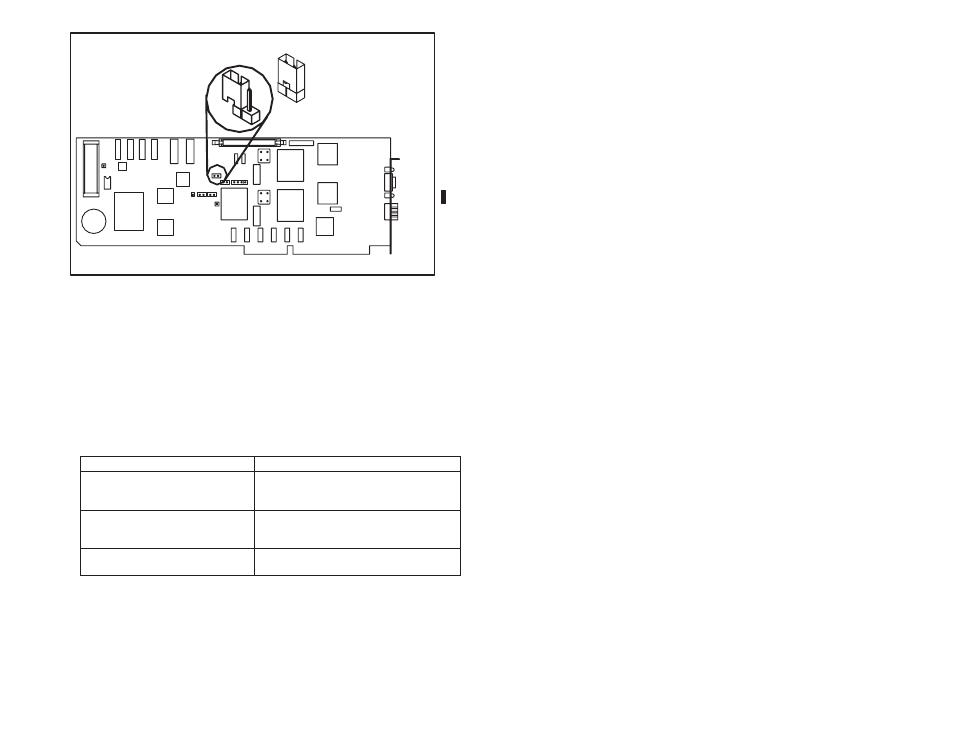

Figure 5.1ĆJumper JP2 Settings
For more information about Port B on the Serial card, see chapter 10.
Step 4.
Remove the paper strip that covers one end of the
onĆboard battery. For information about handling lithium
batteries, see chapter 20.
Step 5.
Insert the card into the expansion slot. While firmly
pressing down on the card, use a frontĆtoĆback rocking
motion to seat the card in the expansion socket. Make
sure the card's goldĆstriped bottom edge sits firmly in the
expansion slot socket and that the bracket of the board is
in the corresponding groove.
Step 6.
Secure the card with the slot cover screw.
Step 7.
Use this table to help you determine your next step.
ББББББББББ
ББББББББББ
If you:
ББББББББББББ
ББББББББББББ
Do the following:
ББББББББББ
Б
ББББББББ
Б
ББББББББББ
are not installing an AutoMax PC3000
Serial card
ББББББББББББ
Б
ББББББББББ
Б
ББББББББББББ
a) Replace the computer's cover.
b) Install the AutoMax PC3000 driver.
(See section 5.3)
ББББББББББ
Б
ББББББББ
Б
ББББББББББ
are installing an AutoMax PC3000
Serial card
ББББББББББББ
Б
ББББББББББ
Б
ББББББББББББ
a) Install the Serial card. (See section 5.5)
b) Install the AutoMax PC3000 driver.
(See section 5.3)
ББББББББББ
Б
ББББББББ
Б
ББББББББББ
have installed a second Processor
card in the PC
ББББББББББББ
Б
ББББББББББ
Б
ББББББББББББ
Go to section 5.7.
