7Ć5
Step 4.
Crimp the center contact by holding the cable in place
and closing the tool handles until the ratchet releases.
Step 5.
Remove the crimped contact from the dies.
Step 6.
Verify that the shield braid wire does not touch the center
contact. Refer to figure 7.4.

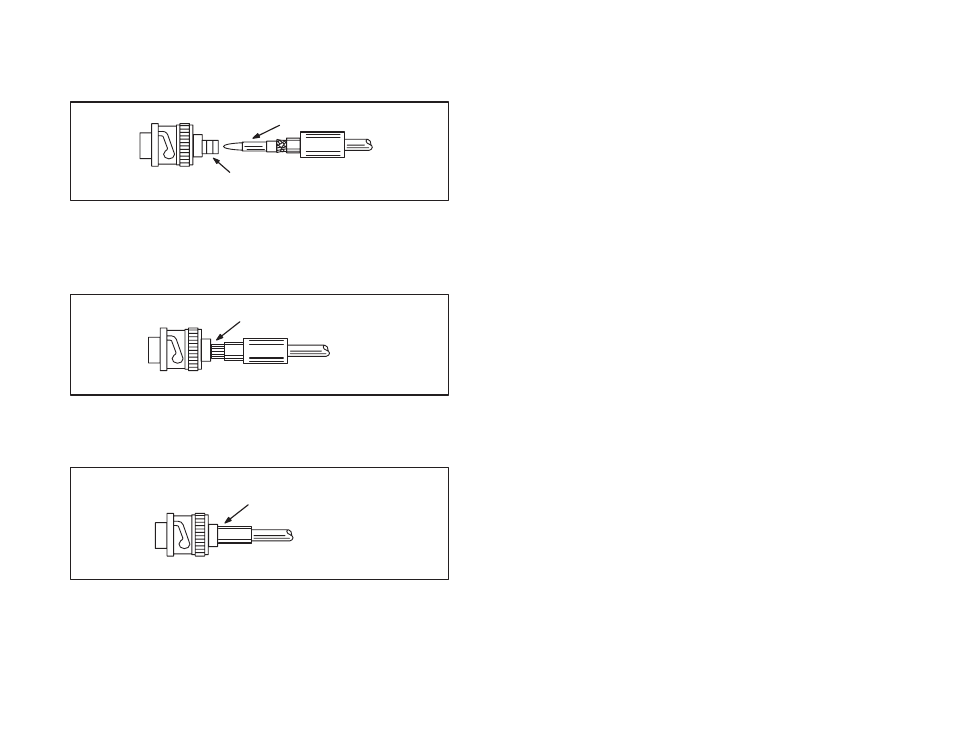

SUPPORT SLEEVE
OF CONNECTOR
CRIMPED CONTACT
Figure 7.4 Ć Connector Installation Step 6 for RGĆ59/U Cable
Step 7.
Insert the crimped center contact into the connector body
until the cable dielectric butts against the dielectric inside
the connector body. The flared braid will then fit around
the support sleeve of the connector body, as shown in
figure 7.5.
BRAID OVER CONNECTOR
SUPPORT SLEEVE
Figure 7.5 Ć Connector Installation Step 7 for RGĆ59/U Cable
Step 8.
Slide the ferrule forward over the shield braid wire and the
support sleeve until the ferrule butts against the shoulder
on the connector body, as shown in figure 7.6.
FERRULE SLID FORWARD
OVER BRAID AND SUPPORT
SLEEVE
Figure 7.6 Ć Connector Installation Step 8 for RGĆ59/U Cable
Step 9.
Place the ferrule on the anvil of the die assembly so that
the shoulder on the connector body butts against the die,
as shown in figure 7.7.
