Mounting the Kinetix 6200 and Kinetix 6500 Drive System
Chapter 3

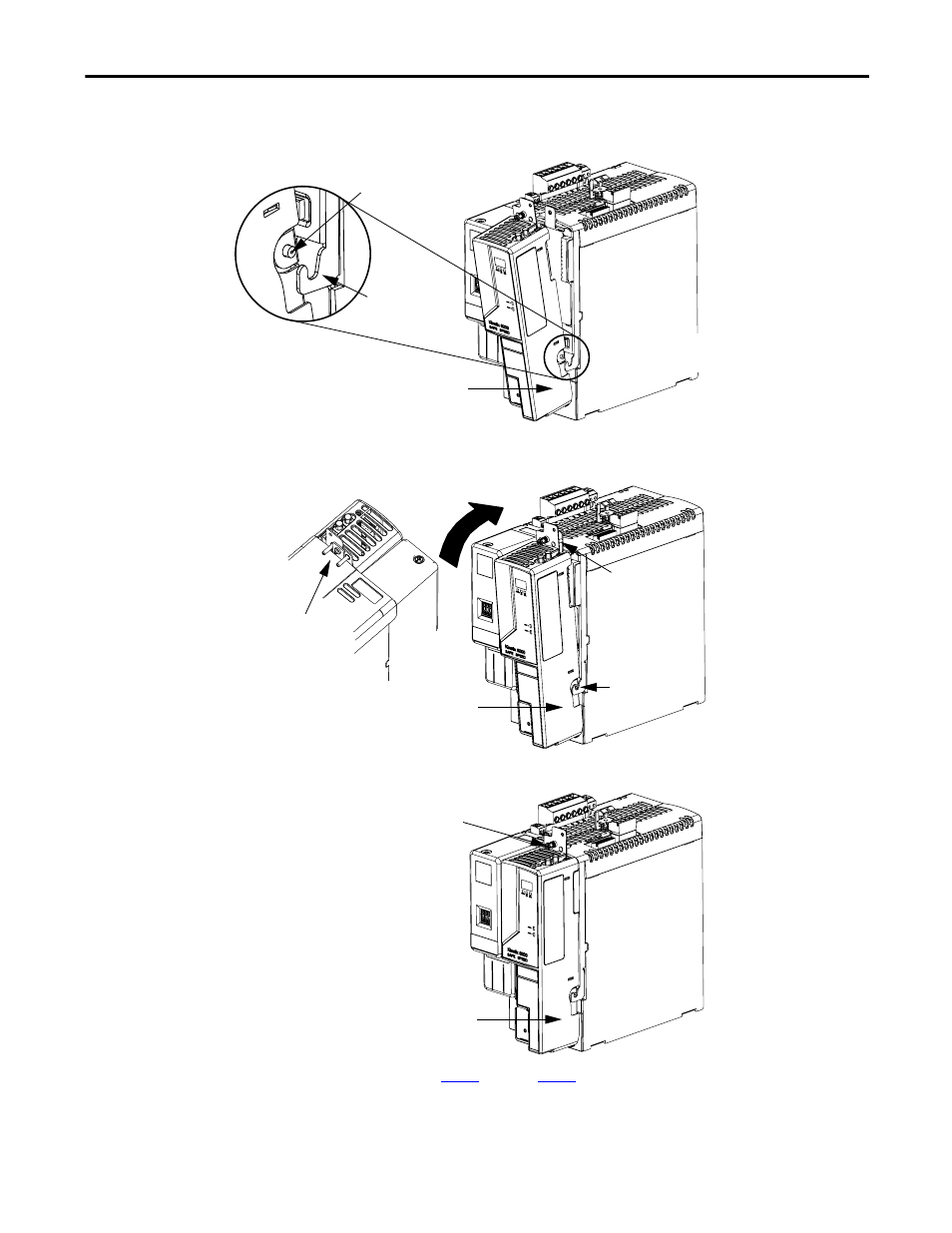

3. Guide the control module mounting studs so they engage with the power
module hooks.
4. Pivot the control module toward the power module to engage the signal
connectors and guide pins.
5. Tighten the captive screw.
6. Repeat
step 2
through
step 5
to mount a control module onto each IAM
and AM power module installed on your Bulletin 2094 power rail.
Mounting Stud
(right side)
Left-side mounting stud and
hook are hidden from view.
Mounting Hook
(right side)
IAM or AM Power Module
(IAM power module is shown)
2094-SE02F-M00-Sx
or 2094-EN02D-M01-Sx
Control Module
Left-side mounting stud and
hook are hidden from view.
Mounting Stud and
Hook Engaged
(right side)
Guide Pins
Straddling Tongue
Guide Pin Alignment on
Either Side of Tongue
IAM or AM Power Module
(IAM power module is shown)
2094-SE02F-M00-Sx
or 2094-EN02D-M01-Sx
Control Module
Captive Screw
(apply 1.1 N•m (10.0 lb•in) torque)
IAM or AM Power Module
(IAM power module is shown)
2094-SE02F-M00-Sx
or 2094-EN02D-M01-Sx
Control Module
