264 Rockwell Automation Publication 2094-UM002E-EN-P - May 2012
Appendix B Upgrading the Drive Firmware
After the flash information is sent
to the drive, the drive resets and
performs diagnostic checking.

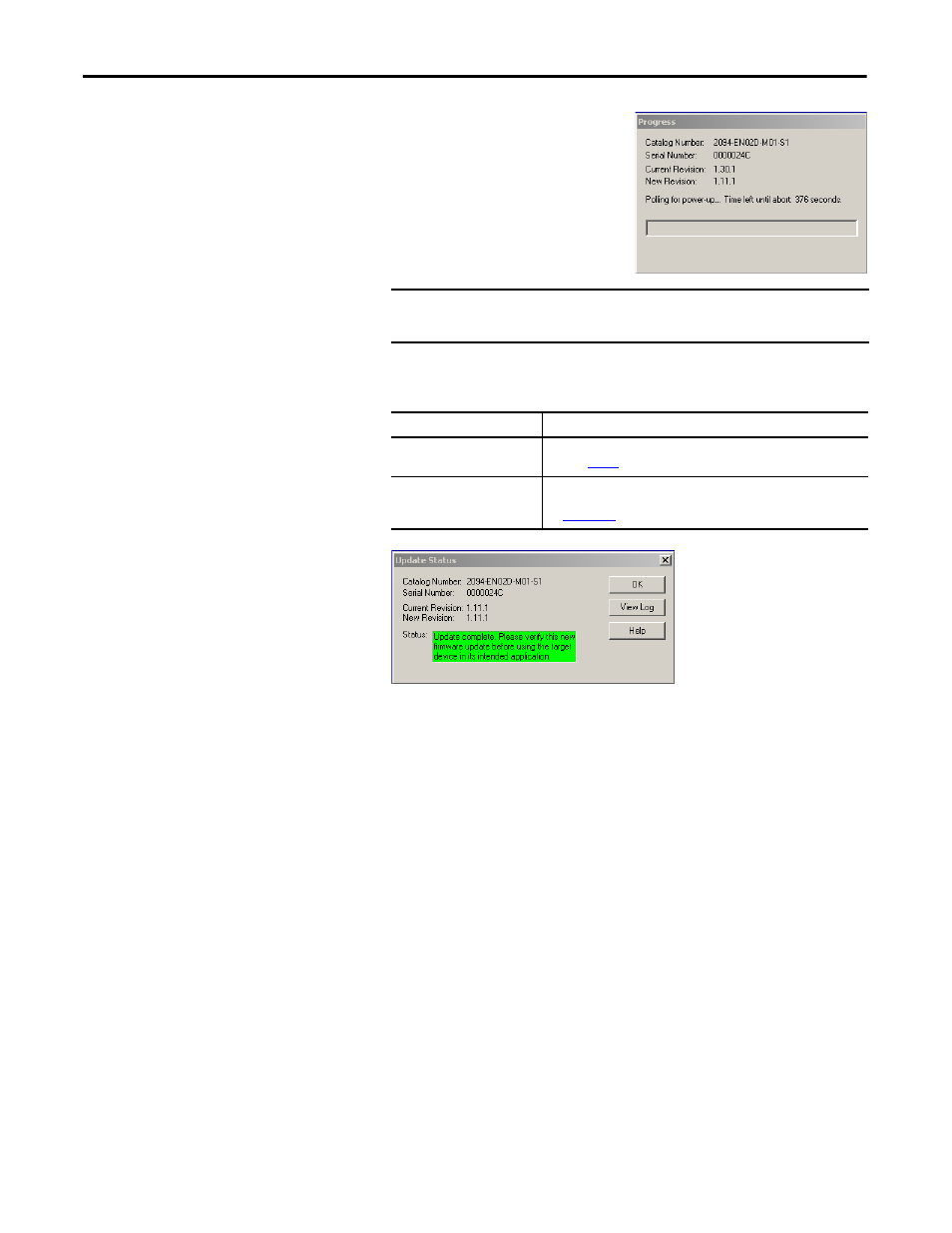

14. Wait for the Progress dialog box to
time out.
It is normal for this process to take
several minutes.
15. The Update Status dialog box opens and indicates success or failure as
described below.
16. Click OK.
IMPORTANT Do not cycle power to the drive during this process or the firmware
upgrade will not complete successfully.
Upgrading Status If
Success
1. Update complete appears in a GREEN Status dialog box.
2. Go to
step 16 .
Failure
1. Update failure appears in a RED Status dialog box.
2. Refer to ControlFLASH Firmware Upgrade Kit Quick Start, publication
1756-QS105 , for troubleshooting information.
