AlliedView™-EMS 4.0.2 Device Management Guide

Page 108 of 441

AT-8400 Line Cards

AT-9000/24

This section describes Device Manager menus and operations specific to the AT-9000/24

switch.

Topics:

Main Window

Agent Menu

Bridge Menu

RMON Menu

Port Menu

Main Window

AT-9000/24

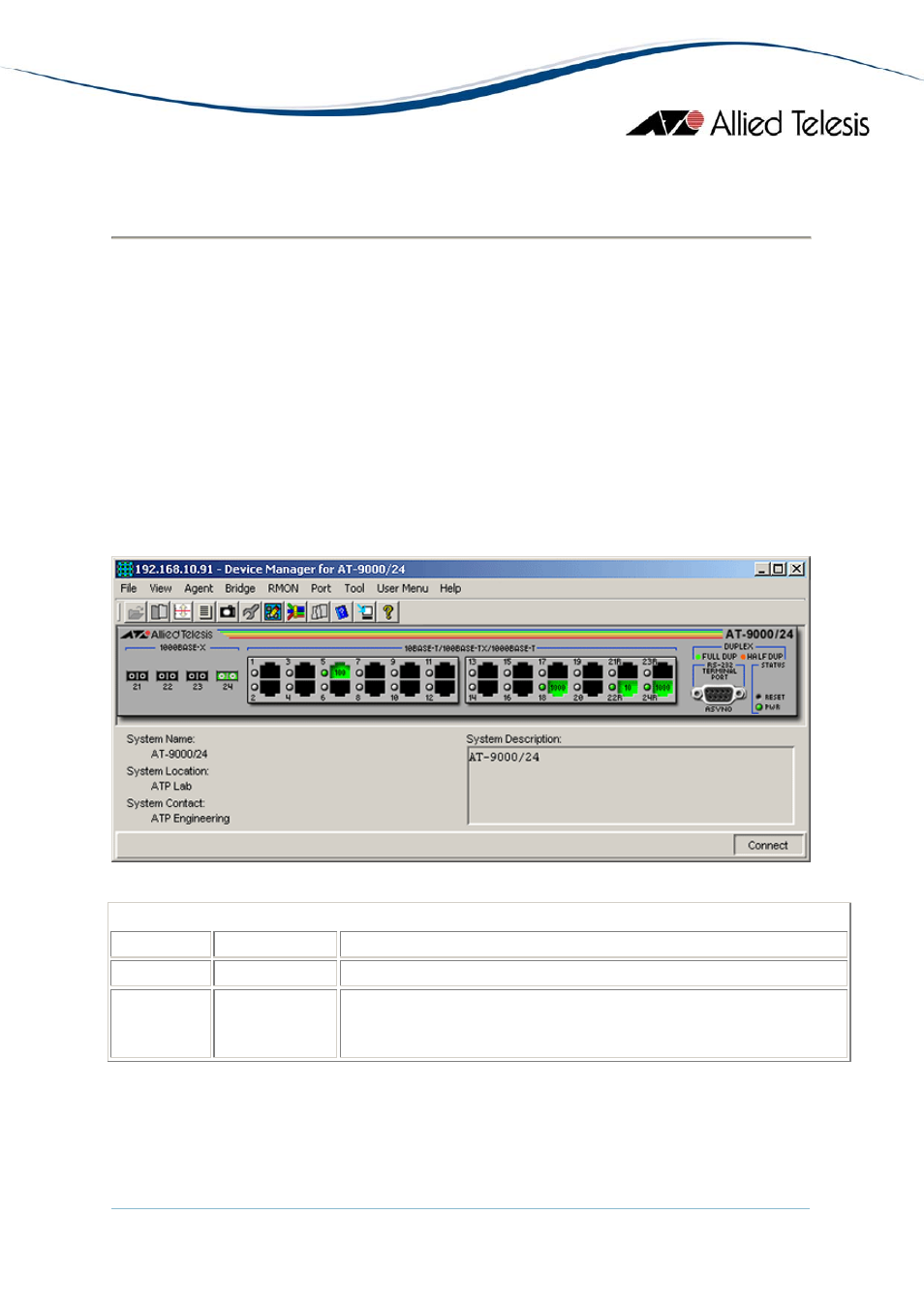

Device Manager LEDs for AT-9000/24

LED

State

Description

PWR

Green

The switch is receiving power.

DUPLEX Green

Orange

The port is operating at full-duplex mode.

The port is operating at half-duplex mode.

Note

- Disabled ports will not turn red.
