AlliedView™-EMS 4.0.2 Device Management Guide Page 10 of 441
Port selection dialog box
When you select a menu item acting on ports, a dialog box opens to let you select ports.
Check the target ports and click OK.
Note - If you select multiple ports, it may take some time for data to be displayed.

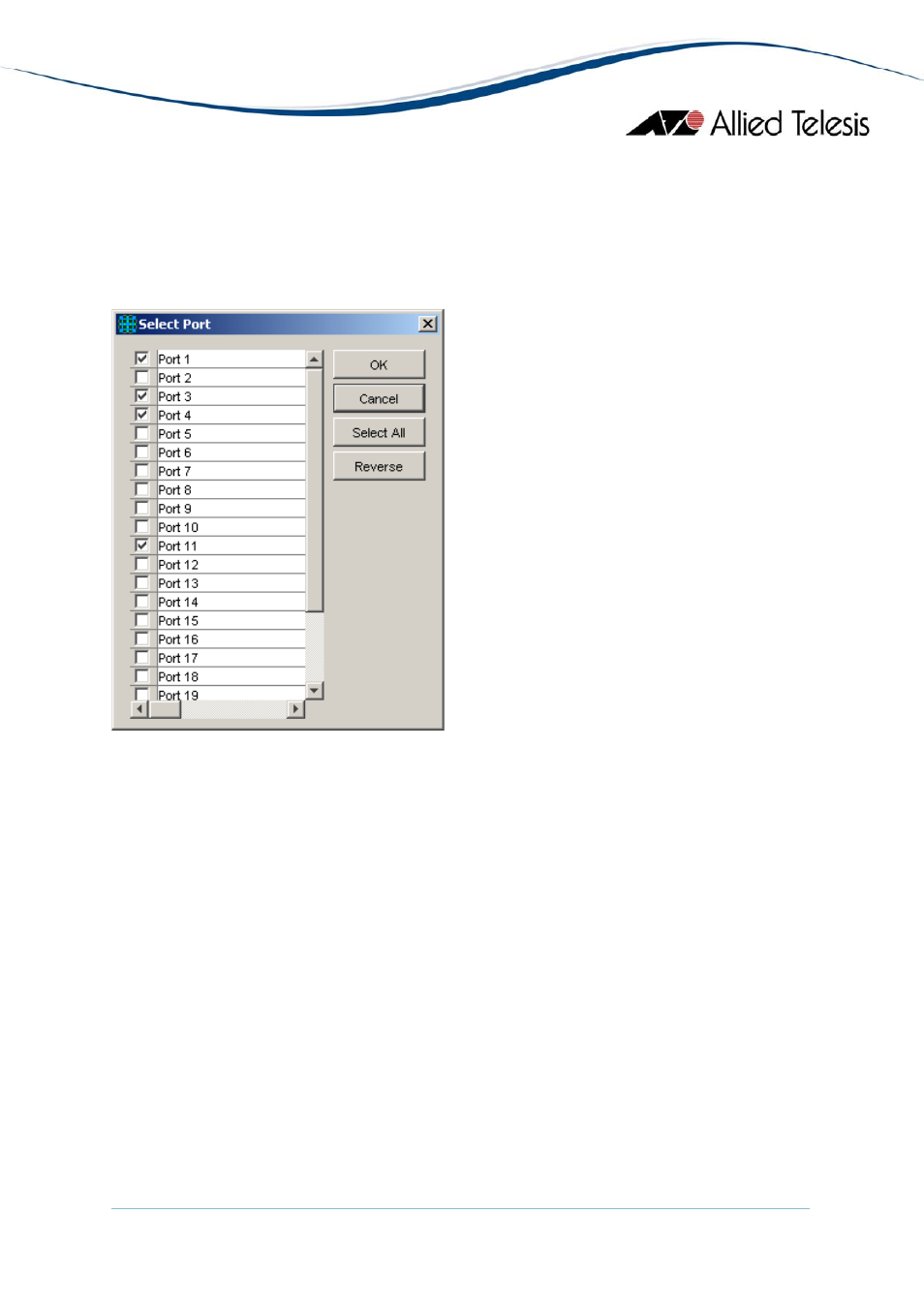

Select Port dialog box
Port status colors
Port status is shown by its color. Port speed is also displayed in the port image.
•
Link Up: Green
•
Disabled: Red (the port is disabled by an administrator)
•
Partitioned/Blocking: Yellow
•
Others: Default color (usually black)
Note - SNMPv3: Depending on the READ VIEW access settings of the User Account Name
used, there is a possibility that Device Manager may not be able to access some MIB values
that control the Port status. When this happens, the affected ports will be shown in the
default color.
LED status
In Device Manager, LEDs do not blink. The meaning of each LED will differ from one device
to another.
