AlliedWare Plus Version 2.1.8 Management Software Web Interface User’s Guide
93
Modifying Port Spanning Tree Protocol Settings
To modify port settings for Spanning Tree Protocol, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab, hover over Port.
3. Move the cursor to the right and select Spanning Tree.
The Port Spanning Tree page is displayed. See Figure 31 on page 91.
4. Click Edit on the port that you want to change.
The Modify Port Spanning Tree Settings page is displayed. See
Figure 32.

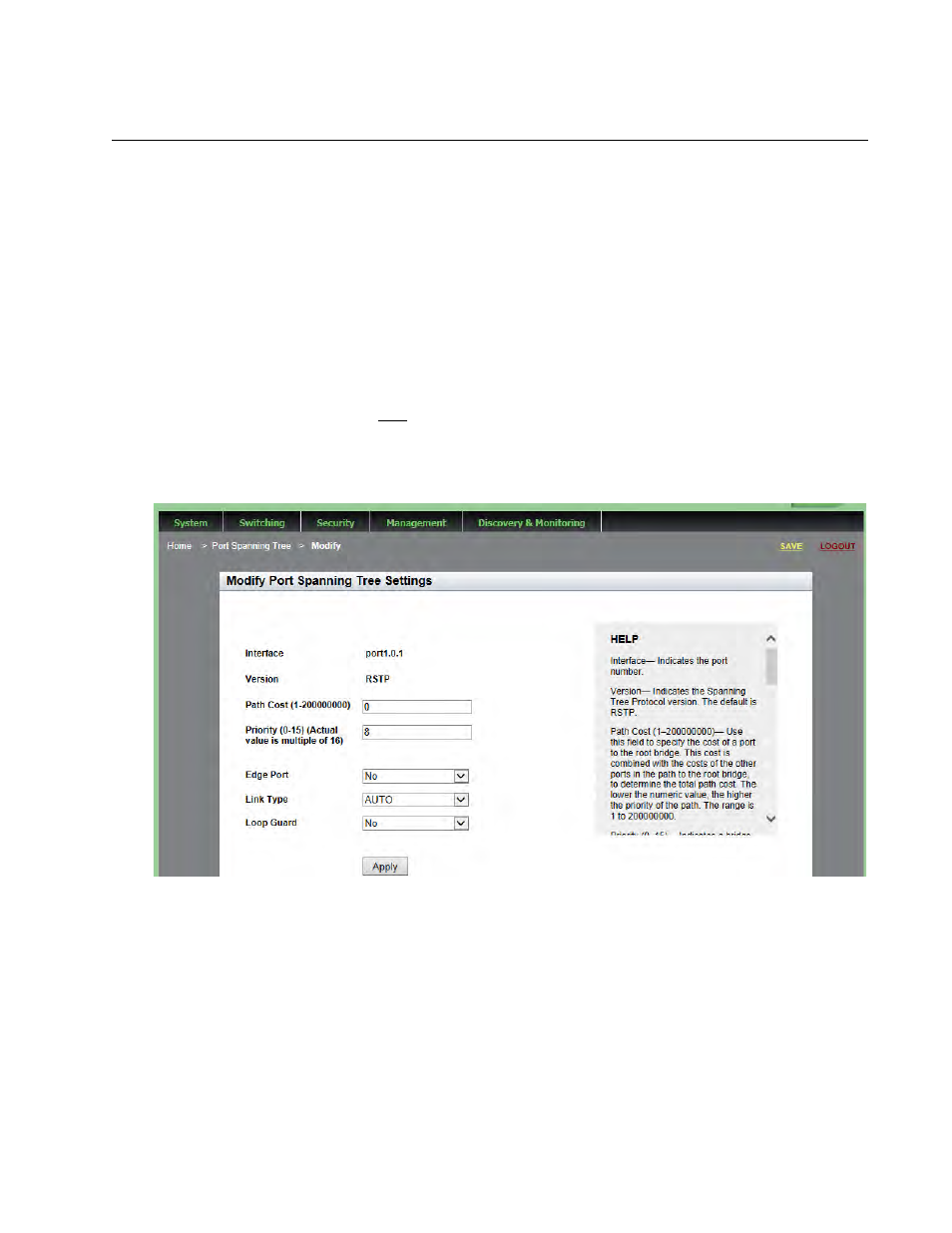

Figure 32. Modify Port Spanning Tree Settings Page
5. Change the following settings as needed:
 Interface— Port number. You cannot change this parameter from
this page.
 Version— Spanning Tree Protocol version. The default setting is
RSTP. You cannot change this parameter from this page.
