AlliedWare Plus Version 2.1.8 Management Software Web Interface User’s Guide
109
Modifying an LACP Trunk
To modify the LACP Trunk settings, see the following procedure:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab, hover over Link Aggregation.
For an example of the Link Aggregation selection, see Figure 38 on
page 105.
3. Move the cursor to the right and select LACP.
The LACP Trunks page is displayed. See Figure 39 on page 105.
4. From the LACP Trunks page, click Edit next to the Aggregator ID that
you want to change.
The Modify LACP Trunk page is displayed. See Figure 41.

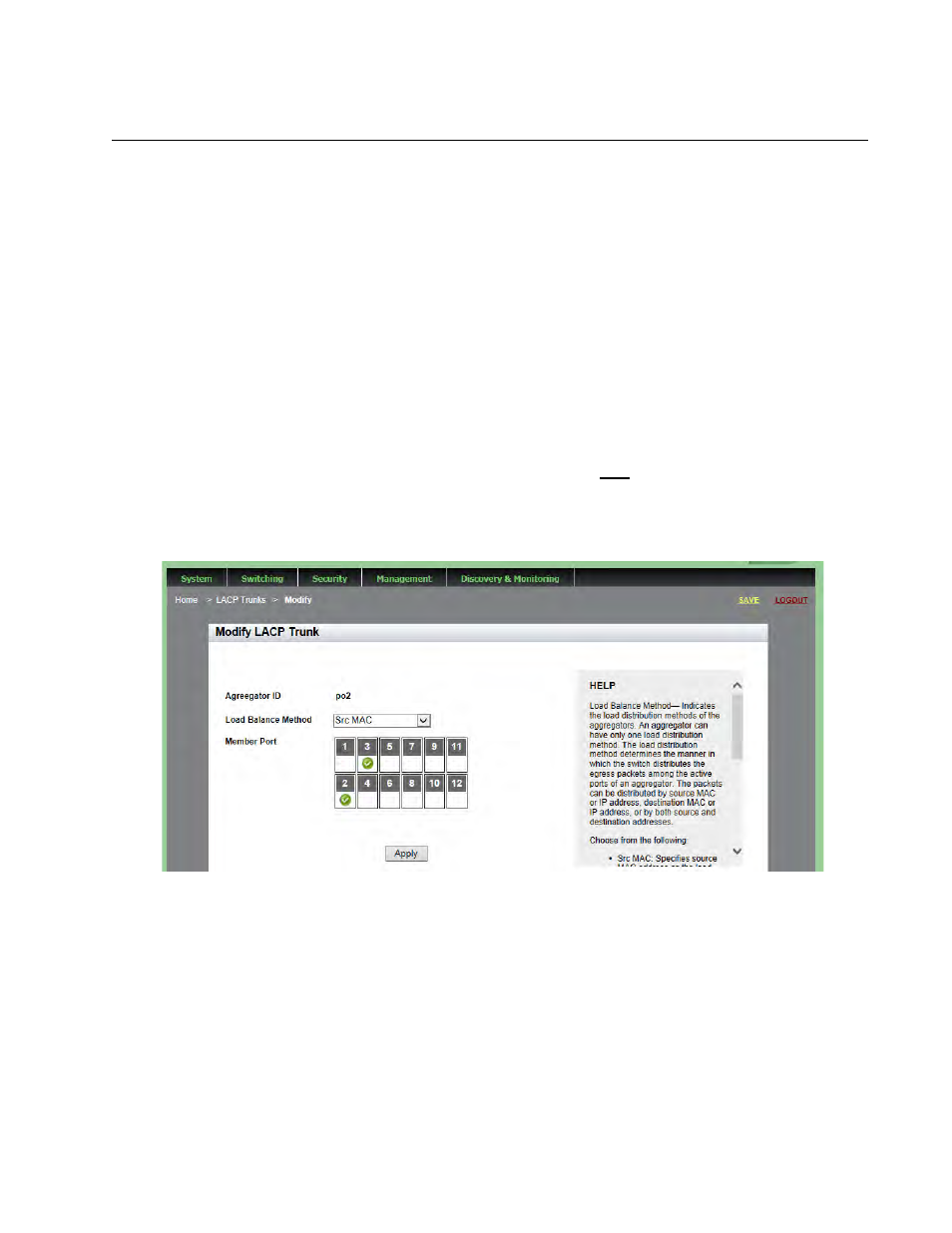

Figure 41. Modify LACP Trunk Page
5. Select the Load Balance Method. Choose from the following:
 Src MAC— Specifies source MAC address as the load distribution
method.
 Dst MAC— Specifies destination MAC address.
 Src-Dst MAC— Specifies source address/destination MAC
address.
 Src IP— Specifies source IP address.
